View larger
Images are for illustrative purposes only. Please refer to data sheet for details

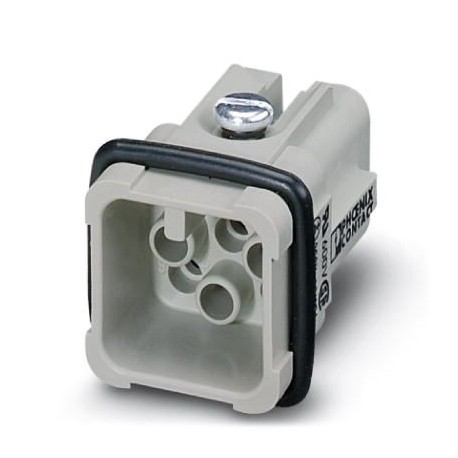

HC-D 7-ESTC-R 1679456 PHOENIX CONTACT Contact insert
HC-D 7-ESTC-R
1679456
PHOENIX CONTACT
10 Pcs.
Contact insert
Connectors > Contact insert for rectangular connectors
Industrial plug-in connectors/interfaces
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1679456 |
|---|---|
| Packing unit | 10 pc |
| Catalog page | Page 407 (C-4-2013) |
| GTIN | 4017918163686 |
| Weight per Piece (excluding packing) | 13.780 g |
| Custom tariff number | 85366990 |
| Country of origin | CZ (Czech Republic) |
General
| Note | For HC-D7 housing, crimp contacts CK1,6-ER (crimp contacts not included in scope of supply) |
|---|---|
| Connection method | Crimp connection |
| Degree of pollution | 3 |
| Overvoltage category | III |
| Number of positions | 7+PE |
| Insertion/withdrawal cycles | ≥ 500 |
| Size | D7 |
| Contact numbering | 1 - 7 |
| Conductor cross section | 0.14 mm² ... 1.5 mm² |
| Connection cross section AWG | 26 ... 16 |
| Stripping length of the individual wire | 3 mm +0,5 mm (0,14 mm² ... 0,5 mm²) |
| 3.5 mm +1 (0.5 mm² ... 1.5 mm²) | |
| Assembly instructions | To ensure correct use, installation in housing with IP54 protection or better is required |
| Connection | The inserts may only be used in plastic housings at voltages >42 V, since it is not possible to connect the protective conductor and the housing with each other. |
Ambient conditions
| Ambient temperature (operation) | -40 °C ... 125 °C (including heating up of contacts) |
|---|
Material data
| Seal material | NBR |
|---|---|
| Contact material | Copper alloy |
| Contact surface material | Ag (alternatively Au) |
| Contact carrier material | PBTP |
Standards and Regulations
| Connection in acc. with standard | CSA |
|---|---|
| Constructional and testing regulations | DIN VDE 0627/86 |
| DIN VDE 0110/02.79 | |
| DIN VDE 0110-1/04.97 | |
| IEC 60664-1, DIN IEC 60512 | |
| IEC 60352 | |
| Flammability rating according to UL 94 | V0 |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
