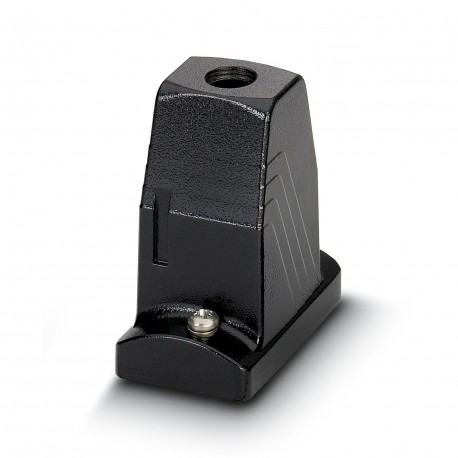

HC-B 6-TMS-100/O1STM20G-EUA 1604049 PHOENIX CONTACT Housing
HC-B 6-TMS-100/O1STM20G-EUA
1604049
PHOENIX CONTACT
10 Pcs.
Housing
HEAVYCON ADVANCE for increased environmental demands, B6 aerial housing, with screw lock, height 100 mm, with 1x M20 thread, straight cable outlet
Connectors > Housing for rectangular connectors
Industrial plug-in connectors/interfaces
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1604049 |
|---|---|
| Packing unit | 10 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 484 (C-4-2013) |
| GTIN | 4017918883959 |
| Weight per Piece (excluding packing) | 302.940 g |
| Custom tariff number | 85389099 |
| Country of origin | DE (Germany) |
Dimensions
| Height | 100 mm |
|---|---|
| Width | 57 mm |
| Length | 92 mm |
| Length of the assembly cutout | 52 mm |
| Width of the assembly cutout | 35 mm |
Ambient conditions
| Degree of protection of housing (IP) | IP66 |
|---|---|
| IP68 (0.2 bar/24 h) | |
| IP69K | |
| Degree of protection of housing (NEMA) | 4 (NEMA 250) |
| 4X (NEMA 250) | |
| 6P (NEMA 250) | |
| 12 (NEMA 250) | |
| Ambient temperature (operation) | -40 °C ... 125 °C |
General
| Note | For contact inserts HC-B6, BB10, DD24, M |
|---|---|
| Size | B6 |
| Housing type | Sleeve housing |
| Locking type | Screw locking |
| Torque | 3 Nm (Locking screw) |
| Fixing screws | M6 |
| No. of cable outlets | 1 |
| Cable outlet | straight |
| Screw connection | none |
| Type of the screw connection | 1x M20 |
| Housing material | Die-cast aluminum, salt water resistant |
| Housing surface material | Powder-coated, black |
| Seal material | Viton |
| Material lock | Stainless steel |
| Assembly instructions | In order to guarantee that the ground conductor contact functions even when plugged in at an angle, the two panel mounting flanges must have sufficient electrical contact with the metal mounting panel. |
| Connection | Tightening torque of locking screw 3 Nm. |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
