View larger
Images are for illustrative purposes only. Please refer to data sheet for details

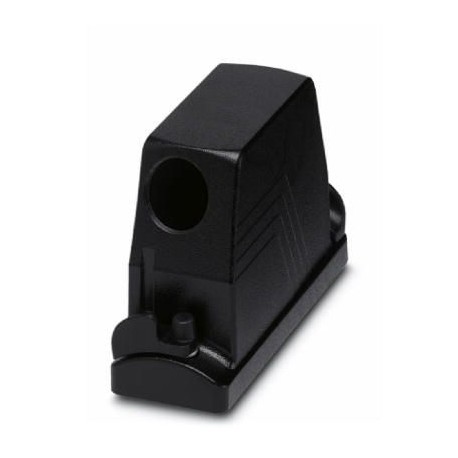

HC-B 16-TMB-100/O1STM40S-EUA 1604492 PHOENIX CONTACT Housing
HC-B 16-TMB-100/O1STM40S-EUA
1604492
PHOENIX CONTACT
10 Pcs.
Housing
HEAVYCON ADVANCE for increased environmental requirements, B16 aerial housing, with bayonet lock, height 100 mm, with 1xM40 thread, side cable outlet
Connectors > Housing for rectangular connectors
Industrial plug-in connectors/interfaces
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1604492 |
|---|---|
| Packing unit | 10 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 567 (PC-2011) |
| GTIN | 4017918948177 |
| Weight per Piece (excluding packing) | 394.570 g |
| Custom tariff number | 85389099 |
| Country of origin | DE (Germany) |
Dimensions
| Height | 100 mm |
|---|---|
| Width | 57 mm |
| Length | 126 mm |
| Length of the assembly cutout | 86 mm |
| Width of the assembly cutout | 35 mm |
Ambient conditions
| Degree of protection of housing (IP) | IP65 |
|---|---|
| IP67 | |
| Ambient temperature (operation) | -40 °C ... 200 °C |
General
| Note | For contact inserts HC-B16, BB32, D40, DD72, HS6, HV6, M, K |
|---|---|
| Size | B16 |
| Housing type | Sleeve housing |
| Color | black |
| Locking type | Bayonet locking |
| No. of cable outlets | 1 |
| Cable outlet | lateral |
| Screw connection | none |
| Type of the screw connection | 1x M40 |
| Housing material | Die-cast aluminum, salt water resistant |
| Housing surface material | Powder-coated, black |
| Seal material | Viton |
| Material grip body interlock | PA-GF |
| Assembly instructions | In order to guarantee that the ground conductor contact functions even when plugged in at an angle, the two panel mounting flanges must have sufficient electrical contact with the metal mounting panel. |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
