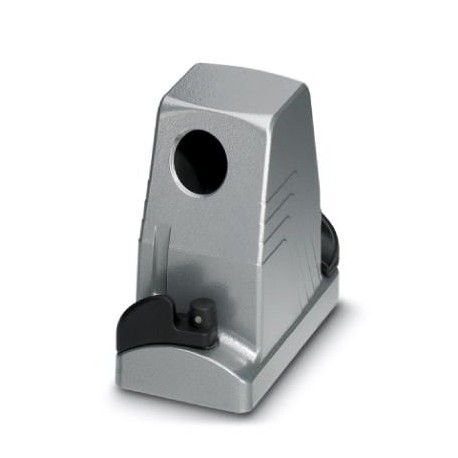

HC-B 10-TMB-100/O1STM32S-STA 1604382 PHOENIX CONTACT Housing
HC-B 10-TMB-100/O1STM32S-STA
1604382
PHOENIX CONTACT
10 Pcs.
Housing
HEAVYCON ADVANCE with standard powder coating, B10 aerial housing, with bayonet lock, height 100 mm, with 1xM32 thread, side cable outlet
Connectors > Housing for rectangular connectors
Industrial plug-in connectors/interfaces
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1604382 |
|---|---|
| Packing unit | 10 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 564 (PC-2011) |
| GTIN | 4017918948061 |
| Weight per Piece (excluding packing) | 364.100 g |
| Custom tariff number | 85389099 |
| Country of origin | DE (Germany) |
Dimensions
| Height | 100 mm |
|---|---|
| Width | 57 mm |
| Length | 105 mm |
| Length of the assembly cutout | 65 mm |
| Width of the assembly cutout | 35 mm |
Ambient conditions
| Degree of protection of housing (IP) | IP65 |
|---|---|
| IP67 | |
| Ambient temperature (operation) | -40 °C ... 125 °C |
General
| Note | For contact inserts HC-B10, BB18, DD42, M, K8/24 |
|---|---|
| Size | B10 |
| Housing type | Sleeve housing |
| Color | gray |
| Locking type | Bayonet locking |
| No. of cable outlets | 1 |
| Cable outlet | lateral |
| Screw connection | none |
| Type of the screw connection | 1x M32 |
| Housing material | Aluminum die-cast |
| Housing surface material | Powder-coated, gray |
| Seal material | NBR |
| Material grip body interlock | PA-GF |
| Assembly instructions | In order to guarantee that the ground conductor contact functions even when plugged in at an angle, the two panel mounting flanges must have sufficient electrical contact with the metal mounting panel. |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
eCl@ss 4.0272607xxeCl@ss 4.127260701eCl@ss 5.027143424eCl@ss 5.127261200eCl@ss 6.027261200eCl@ss 7.027440202eCl@ss 8.027440202eCl@ss 9.027440202
| Feature Name | Feature Value |
|---|---|
| Width (EF000008) | 57 mm |
| Height (EF000040) | 100 mm |
| Depth (EF000049) | 105 mm |
| Type of housing (EF006980) | Plug case |
| Housing material (EF001596) | Aluminium |
| Coating housing (EF001601) | Powder coated |
| Housing colour (EF000136) | Grey |
| Position cable feed (EF008218) | Sideways |
| Position of the shackle (EF008459) | None |
| With cable screw gland (EF000735) | No |
| Mounting method of the cable gland (EF012210) | Metric |
| With hinged lid (EF000117) | No |
| With distance piece (EF005072) | No |
| With sealing (EF005610) | Yes |
| Number of conduit inlets (EF000437) | 1 |
| Type of locking (EF000208) | Bayonet |
| Operating temperature (EF002393) | -40 °C |
| EMC-version (EF001062) | Yes |
| Degree of protection (IP), mounted (EF007466) | IP65 |
