View larger
Images are for illustrative purposes only. Please refer to data sheet for details

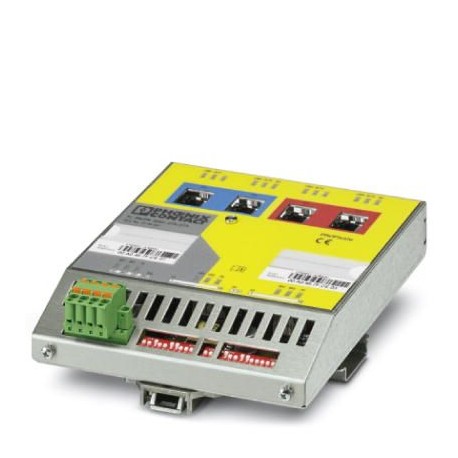

FL PN/PN SDIO-2TX/2TX 2700651 PHOENIX CONTACT Security gateway
FL PN/PN SDIO-2TX/2TX
2700651
PHOENIX CONTACT
1 Pcs.
Security gateway
PROFINET secure gateway, IP20 degree of protection, for coupling of two PROFINET systems, up to standard 128-byte I/O process data via PROFINET, up to 11-byte safe I/O process data via PROFIsafe
Automation > Fieldbus, decentr. periphery - communication module
Control Systems (CST)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 2700651 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 308 (C-6-2017) |
| GTIN | 4046356621243 |
| Weight per Piece (excluding packing) | 727.500 g |
| Custom tariff number | 85176200 |
| Country of origin | DE (Germany) |
Note
| Utilization restriction | EMC: class A product, see manufacturer's declaration in the download area |
|---|
Ambient conditions
| Ambient temperature (operation) | -25 °C ... 60 °C |
|---|---|
| Ambient temperature (storage/transport) | -25 °C ... 70 °C |
| Permissible humidity (operation) | 10 % ... 85 % (non-condensing) |
| Permissible humidity (storage/transport) | 10 % ... 85 % (non-condensing) |
| Air pressure (operation) | 80 kPa ... 108 kPa (up to 2000 m above sea level) |
| Air pressure (storage/transport) | 66 kPa ... 108 kPa (up to 3500 m above sea level) |
| Degree of protection | IP20 |
Power supply for module electronics
| Supply voltage | 24 V DC |
|---|---|
| Supply voltage range | 18.5 V DC ... 30 V DC (including ripple) |
| Ripple | 3.6 Vpp |
| Current consumption | max. 250 mA |
| Type of protection | Polarity protection, surge protection |
Environmental Product Compliance
| China RoHS | Environmentally Friendly Use Period = 50 |
|---|---|
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss 4.027250594eCl@ss 4.127240494eCl@ss 5.027242218eCl@ss 5.127250500eCl@ss 6.027242600eCl@ss 7.027242608eCl@ss 8.027242608eCl@ss 9.027242608
| Feature Name | Feature Value |
|---|---|
| Supply voltage DC (EF007534) | 18.5 V |
| Voltage type (supply voltage) (EF002991) | DC |
| Radio standard Bluetooth (EF007178) | No |
| Radio standard WLAN 802.11 (EF007179) | No |
| Radio standard GPRS (EF008523) | No |
| IO link master (EF007298) | No |
| System accessory (EF004118) | Yes |
| Degree of protection (IP) (EF005474) | IP20 |
| With potential separation (EF003272) | No |
| Fieldbus connection over separate bus coupler possible (EF004002) | Yes |
| Suitable for rail mounting (EF003972) | Yes |
| Wall mounting/direct mounting (EF007020) | No |
| Front built-in possible (EF007016) | No |
| Rack-assembly possible (EF007018) | No |
| Suitable for safety functions (EF001597) | Yes |
| Performance level according to EN ISO 13849-1 (EF007399) | None |
| Appendant operation agent (Ex ia) (EF004141) | No |
| Appendant operation agent (Ex ib) (EF004142) | No |
| Explosion safety category for gas (EF003997) | None |
| Explosion safety category for dust (EF003998) | None |
| Width (EF000008) | 130 mm |
| Height (EF000040) | 159.603527 mm |
| Depth (EF000049) | 46.92468 mm |
