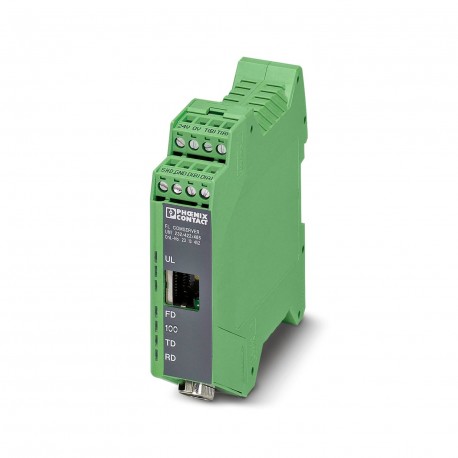

PHOENIX CONTACT FL COMSERVER UNI 232/422/485 FL COMSERVER UNI 232/422/485 2313452 PHOENIX CONTACT Interface converters View larger
Images are for illustrative purposes only. Please refer to data sheet for details

FL COMSERVER UNI 232/422/485 2313452 PHOENIX CONTACT Interface converters

FL COMSERVER UNI 232/422/485

2313452

PHOENIX CONTACT

1 Pcs.

Interface converters Second generation FL COMSERVER UNI..., server for serial devices, for conversion of a serial 232/422/485 interface to Ethernet, supports TCP, UDP, Modbus and PPP gateway applications, incl. Com Redirector port software and user documentation Second generation FL COMSERVER UNI..., serial device server for converting a serial 232/422/485 interface to Ethernet, supports TCP, UDP, Modbus gateway, and PPP applications, incl. COM port redirector software and user documentation

Automation > PLC communication module
Safety

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical data
Notes
Note on application
Note on applicationOnly for industrial use
Utilization restriction
CCCex noteUse in potentially explosive areas is not permitted in China.
Product properties
Product typeInterface converter
ApplicationTCP, UDP, Modbus gateway, PPP
MTTF2013 Years (SN 29500 standard, temperature 25°C, operating cycle 21%)
879 Years (SN 29500 standard, temperature 40°C, operating cycle 34.25%)
359 Years (SN 29500 standard, temperature 40°C, operating cycle 100%)
MTBF666 Years (Telcordia standard, 25°C temperature, 21% operating cycle (5 days a week, 8 hours a day))
179 Years (Telcordia standard, 40°C temperature, 34.25% operating cycle (5 days a week, 12 hours a day))
Data management status
Article revision10
System properties
Modbus/TCP-Client
Number of Modbus/TCP clients8
System requirements
Supported browsersNetscape Communicator versions 4.5 and up or Internet Explorer versions 5.5 and up
Electrical properties
Electrical isolationVCC // Ethernet // Serial
Maximum power dissipation for nominal condition2.4 W
Test voltage data interface/data interface1.5 kVrms(50 Hz, 1 min.)
Test voltage data interface/power supply1.5 kVrms(50 Hz, 1 min.)
Supply
Supply voltage range19.2 V AC/DC ... 28.8 V AC/DC (via pluggable COMBICON screw terminal block)
22.8 V DC ... 25.2 V DC (as an alternative or redundant, via backplane bus contact and system current supply)
Typical current consumption100 mA (24 V DC)
Function
ManagementWeb-based management, SNMP, emergency exit with Telnet and serial
Status and diagnostic indicatorsLEDs: UL (logic voltage), TD + RD (data activity serial), FD (full duplex), 100 (100 Mbps mode), Link (Ethernet), Activity (Ethernet), ERR (error)
Connection data
Supply
Single conductor/terminal point, rigid0.2 mm² ... 2.5 mm²
Single-wire/terminal point, flexible0.2 mm² ... 2.5 mm²
Stripping length7.00 mm
Tightening torque0.5 Nm ... 0.6 Nm
Interfaces
SignalEthernet
Modbus
Web serveryes
Data: Ethernet interface, 10/100Base-T(X) in accordance with IEEE 802.3
Serial transmission speed10/100 Mbps, auto negotiation
Connection methodRJ45 jack, shielded
No. of channels1
Transmission length≤ 100 m (shielded twisted pair)
Protocols supportedTCP/IP, UDP, Modbus (TCP, RTU/ASCII), PPP
Auxiliary protocolsARP, DHCP, BOOTP, SNMP, RIP, RARP, HTTP, TFTP, ICMP
Data flow control/protocolsModbus/TCP
Data: V.24 (RS-232) interface in acc. with ITU-T V.28, EIA/TIA-232, DIN 66259-1
Serial transmission speed0.3; 0.6; 1.2; 2.4; 4.8; 7.2; 9.6; 19.2; 38.4; 57.6; 115.2; 187.5; 230.4 kbps
Connection methodD-SUB 9 plug
Tightening torque0.4 Nm
Pin assignmentDTE/DCE switchover via web-based management
Transmission length15 m
File format/codingUART/NRZ: 7/8 Bit Data, 1/2 Bit Stopp, None/Even/Odd Parity
Data flow control/protocolsSoftware handshake, Xon/Xoff, or hardware handshake RTS/CTS // 3964 R compatible, Modbus RTU/ASCII
Data: RS-422 interface in acc. with ITU-T V.11, EIA/TIA-422, DIN 66348-1
Serial transmission speed0.3; 0.6; 1.2; 2.4; 4.8; 7.2; 9.6; 19.2; 38.4; 57.6; 115.2; 187.5; 230.4; 500; 1000 kbps
Connection methodPlug-in/screw connection via COMBICON
Transmission length≤ 1200 m
Termination resistor390 Ω (configurable)
180 Ω
390 Ω
File format/codingUART/NRZ: 7/8 Bit Data, 1/2 Bit Stopp, None/Even/Odd Parity
Data flow control/protocolsAutomatic control
Data: RS-485 interface, in acc. with EIA/TIA-485, DIN 66259-4/RS-485 2-wire
Serial transmission speed0.3; 0.6; 1.2; 2.4; 4.8; 7.2; 9.6; 19.2; 38.4; 57.6; 115.2; 187.5; 230.4; 500; 1000 kbps
Connection methodPlug-in/screw connection via COMBICON
Termination resistor390 Ω
180 Ω
390 Ω (configurable)
File format/codingUART/NRZ: 7/8 Bit Data, 1/2 Bit Stopp, None/Even/Odd Parity
Data flow control/protocolsAutomatic control
Dimensions
Width22.5 mm
Height99 mm
Depth116 mm
Material specifications
Color (Housing)green (RAL 6021)
Material (Housing)PA 6.6-FR
Environmental and real-life conditions
Ambient conditions
Degree of protectionIP20
Ambient temperature (operation)-25 °C ... 60 °C
-20 °C ... 60 °C (in acc. with UL)
Ambient temperature (storage/transport)-25 °C ... 70 °C
Altitude≤ 5000 m (For restrictions, see the manufacturer's declaration for altitude operation)
Permissible humidity (operation)10 % ... 95 % (non-condensing)
Permissible humidity (storage/transport)5 % ... 95 % (non-condensing)
Approvals
CE
CertificateCE-compliant
ATEX
Identification II 3 G Ex ec IIC T4 Gc
CertificatePxCIF11ATEX2313478X
NotePlease follow the special installation instructions in the documentation!
UL, USA/Canada
Identification508 Listed
Class I, Div. 2, Groups A, B, C, D
UL, USA
IdentificationClass I, Zone 2, AEx nA IIC T5
UL, Canada
IdentificationClass I, Zone 2, Ex nA IIC T5 Gc X
KC approval for South Korea
CertificateMSIP-REI-PCK-2313452
Corrosive gas test
IdentificationISA-S71.04-1985 G3 Harsh Group A
EMC data
Electromagnetic compatibilityConformance with EMC Directive 2014/30/EU
Noise immunityEN 61000-6-2:2005
Noise emissionEN 61000-6-4
Electrostatic discharge
Standards/regulationsEN 61000-4-2
Electrostatic discharge
Contact discharge± 6 kV
Discharge in air± 8 kV
CommentsCriterion B
Electromagnetic HF field
Standards/regulationsEN 61000-4-3
Electromagnetic HF field
Field intensity10 V/m
CommentsCriterion A
Fast transients (burst)
Standards/regulationsEN 61000-4-4
Fast transients (burst)
Input2 kV (5 kHz)
Signal1 kV (5 kHz)
CommentsCriterion A
Surge current load (surge)
Standards/regulationsEN 61000-4-5
Surge current load (surge)
Input2 kV
Signal1 kV
CommentsCriterion B
Conducted interference
Standards/regulationsEN 61000-4-6
Conducted interference
CommentsCriterion A
Voltage10 V
Emitted interference
Standards/regulationsEN 55032
Criteria
Criterion ANormal operating behavior within the specified limits.
Criterion BTemporary impairment to operational behavior that is corrected by the device itself.
Standards and regulations
Free from substances that could impair the application of coatingVDMA 24364:2018-05
Standards/regulationsEN 50121-4
Mounting
Mounting typeDIN rail mounting
Assembly noteThe product can be snapped onto all 35 mm DIN rails in accordance with EN 60715.

ETIM for 2313452 PLC's (EC001423)
Feature Name Feature Value
Number of HW-interfaces industrial Ethernet (EF003020) 0
Number of interfaces PROFINET (EF006932) 0
Number of HW-interfaces RS-232 (EF003021) 0
Number of HW-interfaces RS-422 (EF003022) 0
Number of HW-interfaces RS-485 (EF003023) 0
Number of HW-interfaces serial TTY (EF003024) 0
Number of HW-interfaces USB (EF003025) 0
Number of HW-interfaces parallel (EF003026) 0
Number of HW-interfaces wireless (EF006933) 0
Number of HW-interfaces other (EF003027) 0
With optical interface (EF003028) No
Supporting protocol for EtherCAT (EF017564) No
Supporting protocol for TCP/IP (EF003050) Yes
Supporting protocol for PROFIBUS (EF003052) No
Supporting protocol for CAN (EF003053) No
Supporting protocol for INTERBUS (EF003054) No
Supporting protocol for ASI (EF003051) No
Supporting protocol for KNX (EF003055) No
Supporting protocol for Modbus (EF003057) No
Supporting protocol for Data-Highway (EF003058) No
Supporting protocol for DeviceNet (EF003059) No
Supporting protocol for SUCONET (EF003060) No
Supporting protocol for LON (EF003017) No
Supporting protocol for PROFINET IO (EF007525) No
Supporting protocol for PROFINET CBA (EF007524) No
Supporting protocol for SERCOS (EF006657) No
Supporting protocol for Foundation Fieldbus (EF007522) No
Supporting protocol for EtherNet/IP (EF007521) No
Supporting protocol for AS-Interface Safety at Work (EF007519) No
Supporting protocol for DeviceNet Safety (EF007520) No
Supporting protocol for INTERBUS-Safety (EF006662) No
Supporting protocol for PROFIsafe (EF007526) No
Supporting protocol for SafetyBUS p (EF007527) No
Supporting protocol for other bus systems (EF003062) No
Radio standard Bluetooth (EF007178) No
Radio standard WLAN 802.11 (EF007179) No
Radio standard GPRS (EF008523) No
Radio standard GSM (EF008524) No
Radio standard UMTS (EF008525) No
IO link master (EF007298) No
Redundancy (EF003156) No
With potential separation (EF003272) No
SIL according to IEC 61508 (EF009889) None
Suitable for safety functions (EF001597) No
Performance level according to EN ISO 13849-1 (EF007399) None
Appendant operation agent (Ex ia) (EF004141) No
Appendant operation agent (Ex ib) (EF004142) No
Explosion safety category for gas (EF003997) None
Explosion safety category for dust (EF003998) None
Width (EF000008) 22.5 mm
Height (EF000040) 99 mm
Depth (EF000049) 116 mm

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
