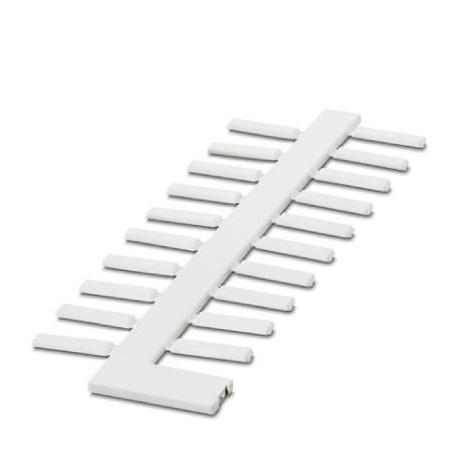

PABA WH/15 1013151 PHOENIX CONTACT Insert label
PABA WH/15
1013151
PHOENIX CONTACT
50 Pcs.
Insert label
Insertable label, Strips, white, unlabelled, labelable with: CMS-P1-PLOTTER, mounting class: slip, cable diameter range: 0.6 ... 50 mm, usable area: 15 x 4 mm, Number of individual indexes: 20
Cables > Cable coding system
MS Material
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1013151 |
|---|---|
| Packing unit | 50 pc |
| Minimum order quantity | 50 pc |
| Catalog page | Page 421 (CL-2005) |
| GTIN | 4017918013578 |
| Weight per Piece (excluding packing) | 4.240 g |
| Custom tariff number | 39269097 |
| Country of origin | CN (China) |
General
| Note | Can be labeled with CMS |
|---|---|
| Color | white |
| Flammability rating according to UL 94 | V0 |
| Material | ABS |
| Wipe resistance | DIN EN 61010-1 (VDE 0411-1) |
| Number of individual labels | 20 |
| Number of individual labels per row | 1 |
| Marking mounting type | thread on |
Standards and Regulations
| Wipe resistance | DIN EN 61010-1 (VDE 0411-1) |
|---|---|
| Flammability rating according to UL 94 | V0 |
Classifications
eCl@ss 10.0.127400629eCl@ss 4.024190219eCl@ss 4.124190219eCl@ss 5.027149103eCl@ss 5.127141100eCl@ss 6.027149100eCl@ss 7.027149129eCl@ss 8.027400401eCl@ss 9.027400629
| Feature Name | Feature Value |
|---|---|
| Model (EF000010) | Other |
| Type (EF001139) | Medium-walled |
| Toothing (EF009649) | None |
| Material (EF002169) | Other |
| Core diameter (EF005497) | 0.6 mm |
| Cable diameter (EF002356) | 0.6 mm |
| Width (EF000008) | 15 mm |
| Colour (EF000007) | White |
| Fluorescent (EF009518) | No |
| Mounting method (EF000003) | Suspend |
