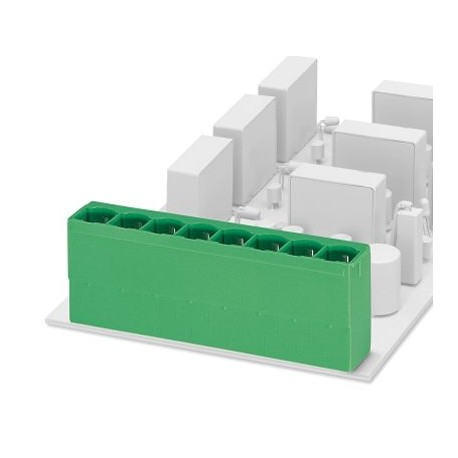

PCV 6-16/ 8-G-10,16 1922543 PHOENIX CONTACT Feed-through header
PCV 6-16/ 8-G-10,16
1922543
PHOENIX CONTACT
50 Pcs.
Feed-through header
Printed circuit board base housing, nominal section: 6 mm², color: green, nominal current: 76 A (41 A in combination with PC 6 connector), nominal voltage (III/2): 1000 V, contact surface: silver, contact type: Male, number of potentials: 8, number of rows: 1, number of poles: 8, number of connections: 8, family of articles: PCV 6-16/.. -G, pitch: 10.16 mm, mounting: Wave soldering, pin arrangement: Linear pin arrangement, pin length [P]: 4 mm, number of soldering pins per potential: 3, plug-in system: COMBICON PC 16, Plug-in face orientation: Standard, locking: without, fixing type: without, packaging type: box-packed, The 76 A rated current is valid in combination with PC 16 family connectors. In combination with PC 6 connectors, 41 A (50 A according to UL) is achieved.
Connectors > Printed circuit board connector
PCB Connectors (PCC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1922543 |
|---|---|
| Packing unit | 50 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 195 (CC-2002) |
| GTIN | 4017918727093 |
| Weight per Piece (excluding packing) | 27.930 g |
| Custom tariff number | 85366930 |
| Country of origin | PL (Poland) |
Dimensions
| Pitch | 10.16 mm |
|---|---|
| Dimension a | 71.12 mm |
| Height | 29 mm |
| Length of the solder pin | 4 mm |
| Pin dimensions | 0.8 x 1.2 mm |
General
| Range of articles | PCV 6-16/..-G |
|---|---|
| Rated voltage (III/3) | 630 V |
| Connection in acc. with standard | EN-VDE |
| Nominal current IN | 76 A |
| Color | green |
| Number of positions | 8 |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
