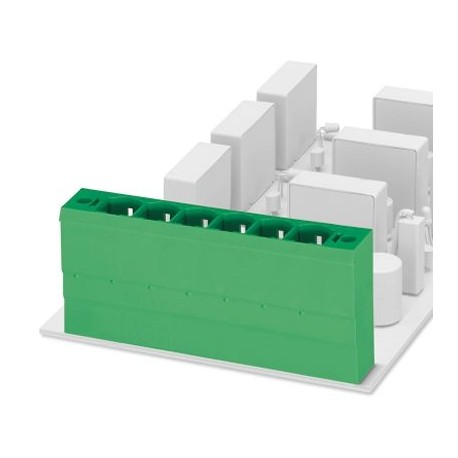

PHOENIX CONTACT PCV 6-16/ 3-GF-10,16 PCV 6-16/ 3-GF-10,16 1922572 PHOENIX CONTACT Feed-through header View larger
Images are for illustrative purposes only. Please refer to data sheet for details

PCV 6-16/ 3-GF-10,16 1922572 PHOENIX CONTACT Feed-through header

PCV 6-16/ 3-GF-10,16

1922572

PHOENIX CONTACT

50 Pcs.

Feed-through header Printed circuit board base housing, nominal section: 6 mm², color: green, nominal current: 76 A (41 A in combination with PC 6 connector), nominal voltage (III/2): 1000 V, contact surface: silver, contact type: Male, number of potentials: 3, number of rows: 1, number of poles: 3, number of connections: 3, family of articles: PCV 6-16/.. -GF, pitch: 10.16 mm, mounting: Wave soldering, pin arrangement: Linear pin arrangement, pin length [P]: 4 mm, number of solder pins per potential: 3, plug-in system: COMBICON PC 16, Plug-in face orientation: Standard, locking: Screw lock, fixing type: Air clamping (thread), packaging type: boxed packaging, The nominal current of 76 A is valid in combination with connectors from the PC 16 family. In combination with PC 6 connectors, 41 A (50 A according to UL) is achieved.

Connectors > Printed circuit board connector
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1922572
Packing unit50 pc
Minimum order quantity50 pc
NoteMade to Order (non-returnable)
Catalog pagePage 195 (CC-2002)
GTIN4017918727048
Weight per Piece (excluding packing)15.600 g
Custom tariff number85366930
Country of originPL (Poland)

Dimensions

Length [ l ]13.4 mm
Width48.24 mm
Pitch10.16 mm
Dimension a20.32 mm
Width [ w ]48.24 mm
Height [ h ]33 mm
Height29 mm
Length of the solder pin4 mm
Pin dimensions0.8 x 1.2 mm
Length13.4 mm

General

Range of articlesPCV 6-16/..-GF
Colorgreen
Number of positions3

Standards and Regulations

Connection in acc. with standardCUL

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Classifications


ETIM for 1922572 Connectors (EC002637)
Feature Name Feature Value
Connector model (EF007495) Fixed connector
Contact type (EF001587) Pin
Number of poles (EF001391) 3
Number of plug-in contact rows (EF006935) 1
Modular spacing contacts (EF007326) 10.16 mm
Modular spacing connections (EF006827) 10.16 mm
Rated current In (EF008250) 76 A
Rated voltage (EF000228) 1000 V
Rated surge voltage (EF002993) 8 kV
Over voltage category (EF006785) III
Pollution degree (EF006786) 2
Material of contact surface (EF004020) Silver
Type of electric connection (EF003961) Other
Diameter connection pin (EF006823) 1.7 mm
Length pin (EF006825) 4 mm
Material insulation body (EF007543) Other
Housing colour (EF000136) Green
Inflammability class of insulation material according to UL94 (EF002521) V0
Operating temperature (EF002393) -40 °C
Type of fastening (EF002442) Other
Type of banding (EF007011) Carton (for SMD)
