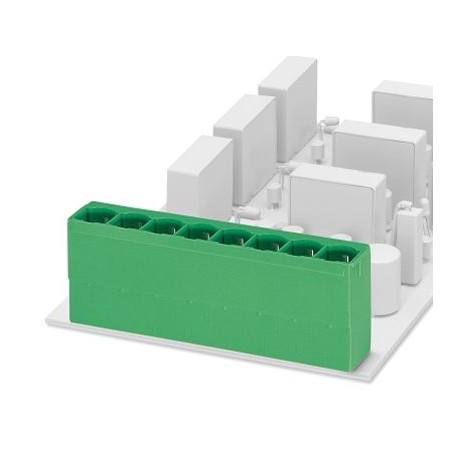

PHOENIX CONTACT PCV 6-16/ 2-G-10,16 PCV 6-16/ 2-G-10,16 1922488 PHOENIX CONTACT Feed-through header View larger
Images are for illustrative purposes only. Please refer to data sheet for details

PCV 6-16/ 2-G-10,16 1922488 PHOENIX CONTACT Feed-through header

PCV 6-16/ 2-G-10,16

1922488

PHOENIX CONTACT

50 Pcs.

Feed-through header Printed circuit board base housing, nominal section: 6 mm², color: green, nominal current: 76 A (41 A in combination with PC 6 connector), nominal voltage (III/2): 1000 V, contact surface: silver, contact type: Male, number of potentials: 2, number of rows: 1, number of poles: 2, number of connections: 2, article family: PCV 6-16/.. -G, pitch: 10.16 mm, mounting: Wave soldering, pin arrangement: Linear pin arrangement, pin length [P]: 4 mm, number of soldering pins per potential: 3, plug-in system: COMBICON PC 16, Plug-in face orientation: Standard, locking: without, fixing type: without, packaging type: box-packed, The 76 A rated current is valid in combination with PC 16 family connectors. In combination with PC 6 connectors, 41 A (50 A according to UL) is achieved.

Connectors > Printed circuit board connector
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1922488
Packing unit50 pc
Minimum order quantity50 pc
Catalog pagePage 195 (CC-2002)
GTIN4017918726980
Weight per Piece (excluding packing)7.680 g
Custom tariff number85366930
Country of originPL (Poland)

Dimensions

Length [ l ]13.4 mm
Pitch10.16 mm
Dimension a10.16 mm
Height [ h ]34 mm
Height29 mm
Length of the solder pin4 mm
Pin dimensions0.8 x 1.2 mm
Pin spacing10.16 mm
Length13.4 mm

General

Range of articlesPCV 6-16/..-G
Insulating material groupI
Rated surge voltage (III/3)6 kV
Rated surge voltage (III/2)8 kV
Rated surge voltage (II/2)8 kV
Rated voltage (III/3)630 V
Rated voltage (III/2)1000 V
Rated voltage (II/2)1000 V
Connection in acc. with standardEN-VDE
Nominal current IN76 A (41 A in combination with PC 6 plug)
Maximum load current76 A
Insulating materialPA
Colorgreen
Number of positions2

General information

NoteIn accordance with IEC 61984, COMBICON connectors have no switching power (COC). During designated use, they must not be plugged in or disconnected when carrying voltage or under load.

Standards and Regulations

Connection in acc. with standardEN-VDE
CUL

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Classifications


ETIM for 1922488 Connectors (EC002637)
Feature Name Feature Value
Connector model (EF007495) Fixed connector
Contact type (EF001587) Pin
Number of poles (EF001391) 2
Number of plug-in contact rows (EF006935) 1
Modular spacing contacts (EF007326) 10.16 mm
Modular spacing connections (EF006827) 10.16 mm
Rated current In (EF008250) 76 A
Rated voltage (EF000228) 1000 V
Rated surge voltage (EF002993) 8 kV
Over voltage category (EF006785) III
Pollution degree (EF006786) 2
Material of contact surface (EF004020) Silver
Type of electric connection (EF003961) Other
Diameter connection pin (EF006823) 1.7 mm
Length pin (EF006825) 4 mm
Material insulation body (EF007543) Other
Housing colour (EF000136) Green
Inflammability class of insulation material according to UL94 (EF002521) V0
Operating temperature (EF002393) -40 °C
Type of fastening (EF002442) Other
Type of banding (EF007011) Carton (for SMD)
