View larger
Images are for illustrative purposes only. Please refer to data sheet for details

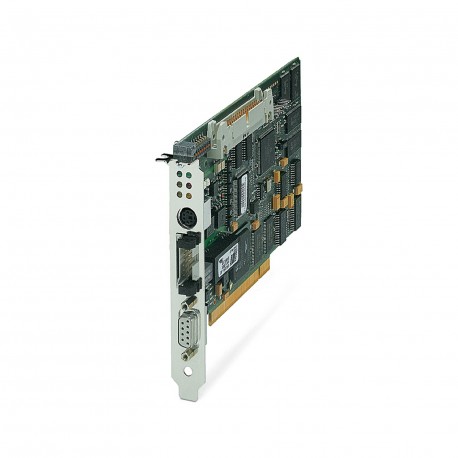

IBS PCI SC/I-T 2725260 PHOENIX CONTACT Termination board
IBS PCI SC/I-T
2725260
PHOENIX CONTACT
1 Pcs.
Termination board
Galvanically isolated PCI master controller board
PCI master controller board with electrical isolation
Automation > PLC communication module
Control Systems (CST)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Technical data
Notes
| Notes on operation | From item revision 15, the controller board will no longer be equipped with a NVRAM (Non-Volatile Random-Access-Memory) due to component discontinuation. The fundamental functionality of the controller board is not affected. In applications that access the NVRAM, applicative countermeasures will have to be taken. |
| Note on application | |
| Note on application | Only for industrial use |
Product properties
| Product type | PC controller board |
| Type | PC card |
| Set comprises | 2732981 IBS PCI SC SYSKIT |
| 2732994 IBS PCI SC SYSKIT E | |
| Format | Short plug-in card, 1-slot |
System properties
| Control system | IBM-compatible PCs with PCI slot |
| Operating system | Windows NT |
| Windows 2000 | |
| Windows XP | |
| Windows 7 (64 bit) | |
| Windows 8/10 (32 & 64 bit) | |
| Venturcom RTX 5.x | |
| Further types on request | |
| Addressable areas | |
| I/O | 16 bytes I/O, PnP |
| INTERBUS-Master | |
| Number of devices with parameter channel | max. 126 |
| Local diagnostics | |
| Designation | SC, HF, PF, BSA, FAIL |
| Monitored function | INTERBUS |
| Optical representation | Status display via LED |
| Functionality | |
| Control system | IBM-compatible PCs with PCI slot |
| System requirements | |
| Configuration tool | CMD from version 4.5x |
| Config+ from version 1.00 onwards | |
| Diagnostics tool | DIAG+ from version 1.0x |
| Application interface | HFI |
| DDI | |
| Driver | Windows NT |
| Windows 2000 | |
| Windows XP | |
| Windows 7 (64 bit) | |
| Windows 8/10 (32 & 64 bit) | |
| Venturcom RTX 5.x | |
| Further types on request | |
Electrical properties
| Local diagnostics | SC, HF, PF, BSA, FAIL INTERBUS Status display via LED |
| Transmission medium | Copper |
| Maximum power dissipation for nominal condition | max. 3.5 W |
| Supply | |
| Supply voltage | 5 V DC |
| Supply voltage range | ± 5 % (including ripple) |
| Power supply connection | Via PCI bus |
| Typical current consumption | 0.7 A |
Input data
| Digital: | |
| Input name | Digital inputs |
| Number of inputs | 6 (EN 61131-2 type 1) |
| Connection technology | FLK cable connector (14-pos.) |
| Nominal input voltage UIN | 24 V DC |
Output data
| Digital: | |
| Output name | Digital outputs |
| Connection technology | FLK cable connector (14-pos.) |
| Number of outputs | 2 |
| Output voltage | 24 V DC |
| Maximum output current per channel | 0.5 A |
Interfaces
| Interrupts | 1 IRQ, PnP |
| INTERBUS remote bus | |
| Connection method | 9-pos. D-SUB female connector, with electrical isolation |
| Transmission speed | 500 kbps |
| Parameterization/operation/diagnostics | |
| Connection method | RS-232-C, Mini-DIN female |
| Transmission speed | 500 kbps500 kbps 2 Mbps |
| Host system | |
| Connection method | PCI bus, 32 bit, 33 MHz, 5 V |
| Direct I/Os | |
| Connection method | 14-pos. FLK pin strip |
Dimensions
| Width | 168 mm |
| Height | 107 mm |
| Depth | 20 mm |
| External dimensions | |
| Width / Height / Depth | 168 mm / 107 mm / 20 mm |
Environmental and real-life conditions
| Ambient conditions | |
| Degree of protection | IP20 (Must be installed in a device with IP20) |
| Ambient temperature (operation) | 0 °C ... 55 °C (acc. to EN 60204-1) |
| Ambient temperature (storage/transport) | -25 °C ... 75 °C (acc. to EN 60204-1) |
| Permissible humidity (operation) | 75 % (on average, 85% infrequently, non-condensing) |
| Air pressure (operation) | 860 hPa ... 1080 hPa (up to 2000 m above sea level) |
| Air pressure (storage/transport) | 660 hPa ... 1080 hPa (up to 3000 m above sea level) |
Mounting
| Mounting type | In the host system |
| Feature Name | Feature Value |
|---|---|
| Number of HW-interfaces industrial Ethernet (EF003020) | 0 |
| Number of interfaces PROFINET (EF006932) | 0 |
| Number of HW-interfaces RS-232 (EF003021) | 0 |
| Number of HW-interfaces RS-422 (EF003022) | 0 |
| Number of HW-interfaces RS-485 (EF003023) | 0 |
| Number of HW-interfaces serial TTY (EF003024) | 0 |
| Number of HW-interfaces USB (EF003025) | 0 |
| Number of HW-interfaces parallel (EF003026) | 0 |
| Number of HW-interfaces wireless (EF006933) | 0 |
| Number of HW-interfaces other (EF003027) | 0 |
| With optical interface (EF003028) | No |
| Supporting protocol for EtherCAT (EF017564) | No |
| Supporting protocol for TCP/IP (EF003050) | No |
| Supporting protocol for PROFIBUS (EF003052) | No |
| Supporting protocol for CAN (EF003053) | No |
| Supporting protocol for INTERBUS (EF003054) | Yes |
| Supporting protocol for ASI (EF003051) | No |
| Supporting protocol for KNX (EF003055) | No |
| Supporting protocol for Modbus (EF003057) | No |
| Supporting protocol for Data-Highway (EF003058) | No |
| Supporting protocol for DeviceNet (EF003059) | No |
| Supporting protocol for SUCONET (EF003060) | No |
| Supporting protocol for LON (EF003017) | No |
| Supporting protocol for PROFINET IO (EF007525) | No |
| Supporting protocol for PROFINET CBA (EF007524) | No |
| Supporting protocol for SERCOS (EF006657) | No |
| Supporting protocol for Foundation Fieldbus (EF007522) | No |
| Supporting protocol for EtherNet/IP (EF007521) | No |
| Supporting protocol for AS-Interface Safety at Work (EF007519) | No |
| Supporting protocol for DeviceNet Safety (EF007520) | No |
| Supporting protocol for INTERBUS-Safety (EF006662) | No |
| Supporting protocol for PROFIsafe (EF007526) | No |
| Supporting protocol for SafetyBUS p (EF007527) | No |
| Supporting protocol for other bus systems (EF003062) | No |
| Radio standard Bluetooth (EF007178) | No |
| Radio standard WLAN 802.11 (EF007179) | No |
| Radio standard GPRS (EF008523) | No |
| Radio standard GSM (EF008524) | No |
| Radio standard UMTS (EF008525) | No |
| IO link master (EF007298) | No |
| Redundancy (EF003156) | No |
| Type of data transmission (EF008225) | Other |
| Transmission rate (EF003271) | 500000 kBit/s |
| With potential separation (EF003272) | No |
| SIL according to IEC 61508 (EF009889) | None |
| Suitable for safety functions (EF001597) | No |
| Performance level according to EN ISO 13849-1 (EF007399) | None |
| Appendant operation agent (Ex ia) (EF004141) | No |
| Appendant operation agent (Ex ib) (EF004142) | No |
| Explosion safety category for gas (EF003997) | None |
| Explosion safety category for dust (EF003998) | None |
| Width (EF000008) | 168 mm |
| Height (EF000040) | 107 mm |
| Depth (EF000049) | 20 mm |
