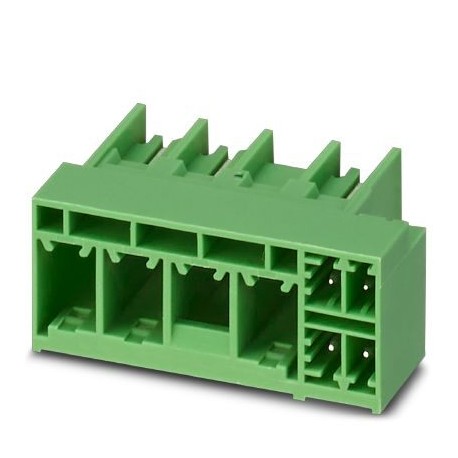

PHOENIX CONTACT PCH 6/ 3+4-GL3-7,62 PCH 6/ 3+4-GL3-7,62 1717119 PHOENIX CONTACT PCB hybrid header, nominal current: 41 A, rated voltage (III/2):.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

PCH 6/ 3+4-GL3-7,62 1717119 PHOENIX CONTACT PCB hybrid header, nominal current: 41 A, rated voltage (III/2):..

PCH 6/ 3+4-GL3-7,62

1717119

PHOENIX CONTACT

50 Pcs.

PCB hybrid header, nominal current: 41 A, rated voltage (III/2): 630 V, nominal cross section: 6 mm², number of positions: 7, pitch: 7.62 mm, color: green, contact surface: Tin, mounting: Wave soldering, pin layout: Linear pinning, solder pin [P]: 2.6 mm Hybrid base strip for circ plate. printed, nominal section: 6 mm², color: green, nominal current: 41 A, 8 A, nominal voltage (III/2): 630 V, contact surface: Tin, contact type: Male, number of potentials: 7, number of rows: 1, number of poles: 7, number of connections: 7, article family: PCH 6/.. +4-GL, pitch: 7.62 mm, mounting: Wave soldering, pin arrangement: Linear pin arrangement, pin length [P]: 2.6 mm, plug-in system: COMBICON PC 6 hybrid, Plug-in face orientation: Standard, locking: Snap-in lock, fixing type: Snap flange, packaging type: boxed

Connectors > Printed circuit board connector
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1717119
Packing unit1 pc
Minimum order quantity50 pc
GTIN4055626532547
Weight per Piece (excluding packing)12.000 g
Custom tariff number85366930
Country of originCN (China)

Drawings

Diagram

Diagram
Type: LPCH 6/...+...-STL...-7,62 with PCH 6/...+...-GL...-7,62

Back to top

Product typePCB hybrid header
ApprovalcULus Recognized
Plug-in systemPOWER COMBICON 6 Hybrid
Product familyPCH 6/..+4-GL
Contact typeMale connector
Colorgreen (6021)
Packagingpacked in cardboard
Contact surface materialTin
Back to top

Classifications

eCl@ss

eCl@ss 4.027260700
eCl@ss 4.127260700
eCl@ss 5.027260700
eCl@ss 5.127260700
eCl@ss 6.027260700
eCl@ss 7.027440402
eCl@ss 8.027440402
eCl@ss 9.027440402
Back to top

ETIM

ETIM 5.0EC002637
ETIM 6.0EC002637
ETIM 7.0EC002637
Back to top

ETIM for 1717119 Connectors (EC002637)
Feature Name Feature Value
Contact type (EF001587) Pin
Number of poles (EF001391) 3
Number of plug-in contact rows (EF006935) 1
Modular spacing contacts (EF007326) 7.62 mm
Modular spacing connections (EF006827) 7.62 mm
Rated current In (EF008250) 41 A
Rated voltage (EF000228) 630 V
Material of contact surface (EF004020) Tin
Diameter connection pin (EF006823) 1.7 mm
Length pin (EF006825) 2.6 mm
Material insulation body (EF007543) Other
Housing colour (EF000136) Green
Inflammability class of insulation material according to UL94 (EF002521) V0
Operating temperature (EF002393) -40 °C
Type of PCB fastening (EF008226) Clip
Type of fastening (EF002442) Engage (snap)
Type of banding (EF007011) Carton (for SMD)
