PHOENIX CONTACT PTSM 0,5/ 8-2,5-V THR R44 PTSM 0,5/ 8-2,5-V THR R44 1771017 PHOENIX CONTACT PCB terminal block View larger
Images are for illustrative purposes only. Please refer to data sheet for details

PTSM 0,5/ 8-2,5-V THR R44 1771017 PHOENIX CONTACT PCB terminal block

PTSM 0,5/ 8-2,5-V THR R44

1771017

PHOENIX CONTACT

310 Pcs.

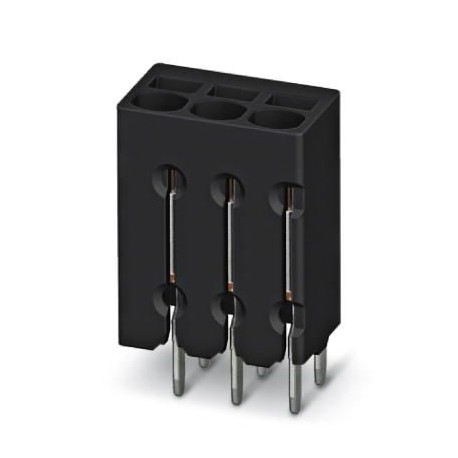

PCB terminal block Terminal block for printed circuit board, nominal current: 6 A, nominal voltage (III/2): 160 V, nominal section: 0.5 mm², number of potentials: 8, number of rows: 1, number of poles per row: 8, article family: PTSM 0.5/.. -V-THR, pitch: 2.5 mm, connection type: Push-in spring connection, mounting: Weld THR, conductor connection direction/printed circuit board: 90°, color: black, Pin arrangement: Linear pin arrangement, Pin length [P]: 2.1 mm, number of solder pins per potential: 2, packaging type: 44 mm wide strap

Connectors > Printed circuit board terminal
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1771017
Packing unit310 pc
Minimum order quantity310 pc
Catalog pagePage 51 (C-1-2013)
GTIN4046356459594
Weight per Piece (excluding packing)3.460 g
Custom tariff number85369010
Country of originIN (India)

Dimensions

Length [ l ]5 mm
Pitch2.5 mm
Dimension a17.5 mm
Width [ w ]20.5 mm
Height10 mm
Height [ h ]12.1 mm
Solder pin [P]2.1 mm
Pin spacing2.5 mm
Hole diameter1.2 mm

General

Range of articlesPTSM 0,5/..-V-THR
Insulating material groupIIIa
Rated surge voltage (III/3)2.5 kV
Rated surge voltage (III/2)2.5 kV
Rated surge voltage (II/2)2.5 kV
Rated voltage (III/3)63 V
Rated voltage (III/2)160 V
Rated voltage (II/2)200 V
Connection in acc. with standardEN-VDE
Nominal current IN6 A
Nominal cross section0.5 mm²
Maximum load current6 A
Insulating materialLCP
Solder pin surface
Flammability rating according to UL 94V0
Stripping length6 mm
Number of positions8

Connection data

Conductor cross section solid min.0.14 mm²
Conductor cross section solid max.0.5 mm²
Conductor cross section flexible min.0.2 mm²
Conductor cross section flexible max.0.5 mm²
Conductor cross section flexible, with ferrule without plastic sleeve min.0.25 mm²
Conductor cross section flexible, with ferrule without plastic sleeve max.0.5 mm²
Conductor cross section flexible, with ferrule with plastic sleeve min.0.25 mm²
Conductor cross section flexible, with ferrule with plastic sleeve max.0.34 mm²
Conductor cross section AWG min.26
Conductor cross section AWG max.20

Standards and Regulations

Connection in acc. with standardEN-VDE
UL
Flammability rating according to UL 94V0

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Classifications


ETIM for 1771017 Connectors (EC002643)
Feature Name Feature Value
Height (EF000040) 12.1 mm
Number of electrical connections (EF008252) 8
Number of levels (EF002659) 1
Modular spacing connections (EF006827) 2.5 mm
Rated current In (EF008250) 6 A
Rated voltage (EF000228) 160 V
Rated surge voltage (EF002993) 2.5 kV
Over voltage category (EF006785) III
Pollution degree (EF006786) 2
Connection type conductor (EF006821) Spring clamp connection
Connectable conductor cross section solid-core (EF007337) 0.14 mm²
Connectable conductor cross section fine-strand with cable end sleeve (EF007339) 0.25 mm²
Connectable conductor cross section fine-strand without cable end sleeve (EF007341) 0.2 mm²
Connectable conductor cross section multi-wired (EF007343) 0.5 mm²
Connection type PCB (EF006822) Soldering connection
Material connection surface (EF006826) Tin
Diameter connection pin (EF006823) 1.2 mm
Length pin (EF006825) 2.1 mm
Material insulation body (EF007543) Other
Housing colour (EF000136) Black
Inflammability class of insulation material according to UL94 (EF002521) V0
Operating temperature (EF002393) -40 °C
Type of PCB fastening (EF008226) Connecting contact
Type of fastening (EF002442) Solder
Type of banding (EF007011) Blister girdle (for SMD)

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
