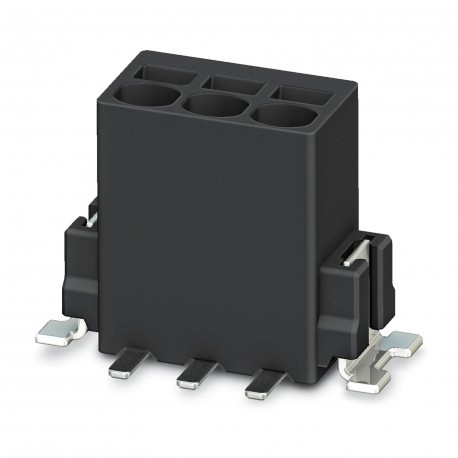

PHOENIX CONTACT PTSM 0,5/ 6-2,5-V SMD R44 PTSM 0,5/ 6-2,5-V SMD R44 1771130 PHOENIX CONTACT PCB terminal block View larger
Images are for illustrative purposes only. Please refer to data sheet for details

PTSM 0,5/ 6-2,5-V SMD R44 1771130 PHOENIX CONTACT PCB terminal block

PTSM 0,5/ 6-2,5-V SMD R44

1771130

PHOENIX CONTACT

400 Pcs.

PCB terminal block Terminal block for printed circuit board, nominal current: 6 A, nominal voltage (III/2): 160 V, nominal section: 0.5 mm², number of potentials: 6, number of rows: 1, number of poles per row: 6, family of articles: PTSM 0.5/.. -V-SMD, pitch: 2.5 mm, connection type: Push-in spring connection, mounting: SMD soldering, driver/printed circuit board connection direction: 90°, color: black, Pin arrangement: Linear pin arrangement, number of potential solder pins: 1, packaging type: 44 mm wide strap Printed circuit board terminal, nominal current: 6 A, rated voltage (III/2): 160 V, nominal cross section: 0.5 mm2, number of potentials: 6, number of rows: 1, number of positions per row: 6, product range: PTSM 0,5/..-V-SMD, pitch: 2.5 mm, connection method: Push-in spring connection, mounting: SMD soldering, conductor/PCB connection direction: 90 °, color: black, Pin layout: Linear pad geometry, number of solder pins per potential: 1, type of packaging: 44 mm wide tape

Connectors > Printed circuit board terminal
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical data
Product properties
Product typePrinted circuit board terminal
Product familyPTSM 0,5/..-V-SMD
Product lineCOMBICON Terminals XS
Number of positions6
Pitch2.5 mm
Number of connections6
Number of rows1
Number of potentials6
Pin layoutLinear pad geometry
Solder pins per potential1
Data management status
Article revision00
Electrical properties
Nominal current IN6 A
Nominal voltage UN160 V
Rated voltage (III/3)32 V
Rated surge voltage (III/3)2.5 kV
Rated voltage (III/2)160 V
Rated surge voltage (III/2)2.5 kV
Rated voltage (II/2)160 V
Rated surge voltage (II/2)2.5 kV
Connection data
Connection technology
Nominal cross section0.5 mm²
Conductor connection
Connection methodPush-in spring connection
Conductor cross section rigid0.14 mm² ... 0.5 mm²
Conductor cross section flexible0.2 mm² ... 0.5 mm² (up to 0.75 mm² supported, with a stripping length of 7.5 mm and a rated insulation voltage of 32 V at III/2)
Conductor cross section AWG26 ... 20
Conductor cross section flexible, with ferrule without plastic sleeve0.25 mm² ... 0.5 mm²
Conductor cross section, flexible, with ferrule, with plastic sleeve0.25 mm² ... 0.34 mm² (possible from 0.14 mm², when using ferrule AI 0.14- 6 GY in combination with crimping pliers CRIMPFOX 10T-F)
Cylindrical gauge a x b / diameter- / 1.2 mm
Stripping length6 mm
Mounting
Mounting typeSMD soldering
Pin layoutLinear pad geometry
Processing notes
ProcessReflow soldering
Moisture Sensitive LevelMSL 1
Classification temperature Tc260 °C
Solder cycles in the reflow3
Material specifications
Material data - contact
NoteWEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201
Contact materialCu alloy
Surface characteristicshot-dip tin-plated
Metal surface terminal point (top layer)Tin (4 - 8 µm Sn)
Metal surface soldering area (top layer)Tin (4 - 8 µm Sn)
Material data - housing
Color (Housing)black (9005)
Insulating materialLCP
Insulating material groupIIIa
CTI according to IEC 60112175
Flammability rating according to UL 94V0
Material data – actuating element
Color (Actuating element)black (9005)
Notes
Note on applicationPick and place pads may protrude beyond the components. The PCB layout must ensure that collisions are avoided when components are assembled.
Dimensions
Dimensional drawingzswbwfibns.jpg
Pitch2.5 mm
Width [w]20.1 mm
Height [h]9 mm
Length [l]7 mm
Installed height9 mm
PCB design
Pad geometry1.4 x 3.4 mm
Mechanical tests
Connection test
SpecificationIEC 60998-2-2:2002-12
ResultTest passed
Test for conductor damage and slackening
SpecificationIEC 60998-2-2:2002-12
ResultTest passed
Pull-out test
SpecificationIEC 60998-2-2:2002-12
Conductor cross section/conductor type/tractive force setpoint/actual value0.14 mm² / solid / > 10 N
0.2 mm² / flexible / > 10 N
0.5 mm² / solid / > 20 N
0.75 mm² / flexible / > 30 N
Flexion test
SpecificationIEC 60998-2-2:2002-12
ResultTest passed
Electrical tests
Temperature-rise test
SpecificationIEC 60998-2-1:2002-12
Requirement temperature-rise testIncrease in temperature ≤ 45 K
Insulation resistance
SpecificationIEC 60998-1:2002-12
Insulation resistance, neighboring positions> 5 MΩ
Air clearances and creepage distances
SpecificationIEC 60664-1:2007-04
Insulating material groupIIIa
Comparative tracking index (IEC 60112)CTI ≥175 to <400
Rated insulation voltage (III/3)32 V
Rated surge voltage (III/3)2.5 kV
minimum clearance value - non-homogenous field (III/3)1.5 mm
minimum creepage distance (III/3)1.3 mm
Rated insulation voltage (III/2)160 V
Rated surge voltage (III/2)2.5 kV
minimum clearance value - non-homogenous field (III/2)1.5 mm
minimum creepage distance (III/2)1.6 mm
Rated insulation voltage (II/2)160 V
Rated surge voltage (II/2)2.5 kV
minimum clearance value - non-homogenous field (II/2)1.5 mm
minimum creepage distance (II/2)1.6 mm
Environmental and real-life conditions
Vibration test
SpecificationIEC 60068-2-6:2007-12
Frequency10 - 150 - 10 Hz
Sweep speed1 octave/min
Amplitude0.35 mm (10 Hz ... 60.1 Hz)
Acceleration5g (60.1 Hz ... 150 Hz)
Test duration per axis2.5 h
Test directionsX-, Y- and Z-axis
Glow-wire test
SpecificationIEC 60998-1:2002-12
Temperature850 °C
Time of exposure5 s
Ambient conditions
Ambient temperature (operation)-40 °C ... 100 °C (Depending on the current carrying capacity/derating curve)
Ambient temperature (storage/transport)-40 °C ... 70 °C
Relative humidity (storage/transport)30 % ... 70 %
Ambient temperature (assembly)-5 °C ... 100 °C
Packaging specifications
Dimensional drawingckrmjeflhr.jpg
Type of packaging44 mm wide tape
[W] tape width44 mm
[W2] coil overall dimension50.4 mm
[A] coil diameter330 mm
Outer packaging typeTransparent-Bag
ESD level(D) electrostatically conductive
SpecificationDIN EN 61340-5-1 (VDE 0300-5-1): 2008-07

ETIM for 1771130 Connectors (EC002643)
Feature Name Feature Value
Height (EF000040) 9 mm
Number of electrical connections (EF008252) 6
Number of levels (EF002659) 1
Modular spacing connections (EF006827) 2.5 mm
Rated current In (EF008250) 6 A
Rated voltage (EF000228) 160 V
Rated surge voltage (EF002993) 2.5 kV
Over voltage category (EF006785) III
Pollution degree (EF006786) 2
Connection type conductor (EF006821) Spring clamp connection
Connectable conductor cross section solid-core (EF007337) 0.14 mm²
Connectable conductor cross section fine-strand with cable end sleeve (EF007339) 0.25 mm²
Connectable conductor cross section fine-strand without cable end sleeve (EF007341) 0.2 mm²
Connectable conductor cross section multi-wired (EF007343) 0.5 mm²
Connection type PCB (EF006822) Soldering connection
Material connection surface (EF006826) Tin
Material insulation body (EF007543) Other
Housing colour (EF000136) Black
Inflammability class of insulation material according to UL94 (EF002521) V0
Operating temperature (EF002393) -40 °C
Type of PCB fastening (EF008226) Flange
Type of fastening (EF002442) Solder
Type of banding (EF007011) Blister girdle (for SMD)
