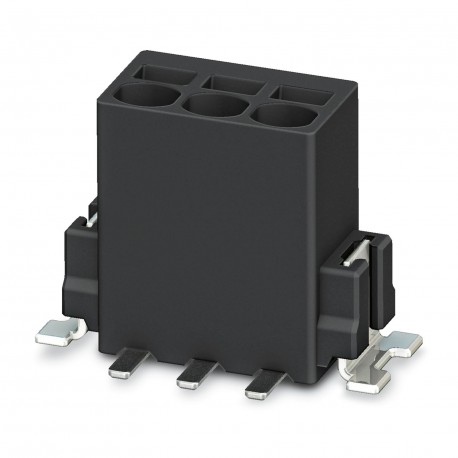

PHOENIX CONTACT PTSM 0,5/ 2-2,5-V SMD R44 PTSM 0,5/ 2-2,5-V SMD R44 1771091 PHOENIX CONTACT PCB terminal block View larger
Images are for illustrative purposes only. Please refer to data sheet for details

PTSM 0,5/ 2-2,5-V SMD R44 1771091 PHOENIX CONTACT PCB terminal block

PTSM 0,5/ 2-2,5-V SMD R44

1771091

PHOENIX CONTACT

400 Pcs.

PCB terminal block Terminal block for printed circuit board, nominal current: 6 A, nominal voltage (III/2): 160 V, nominal section: 0.5 mm², number of potentials: 2, number of rows: 1, number of poles per row: 2, article family: PTSM 0.5/.. -V-SMD, pitch: 2.5 mm, connection type: Push-in spring connection, mounting: SMD soldering, driver/printed circuit board connection direction: 90°, color: black, Pin arrangement: Linear pin arrangement, number of potential solder pins: 1, packaging type: 44 mm wide strap PCB terminal, Rated current: 6 A, Rated voltage (III/2): 160 V, Nominal cross-section: 0.5 mm2, Number of potentials: 2, Number of rows: 1, Number of poles per row: 2, Article family: PTSM 0.5/.. -V-SMD, Pitch: 2.5mm, Connection Type: Push-in Spring Connection, Mounting: SMD Soldering, Conductor/PCB Connection Direction: 90°, Color: Black, Pin Layout: Linear Pad Geometry, Number of Solder Pins per Potential: 1, Packaging Type: Strap in 44mm Width

Connectors > Printed circuit board terminal
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1771091
Packing unit400 pc
Minimum order quantity400 pc
Catalog pagePage 53 (C-1-2013)
GTIN4046356460125
Weight per Piece (excluding packing)1.920 g
Custom tariff number85369010
Country of originIN (India)

Item properties

Brief article descriptionPCB terminal block
Range of articlesPTSM 0,5/..-V-SMD
Pitch2.5 mm
Number of positions2
Connection methodPush-in spring connection
Mounting typeSMD soldering
Pin layoutLinear pad geometry
Number of levels1
Number of connections2
Number of potentials2

Electrical parameters

Rated current6 A
Rated insulation voltage (III/2)160 V
Rated surge voltage (III/2)2.5 kV

Connection capacity

Conductor cross section solid0.14 mm² ... 0.5 mm²
Conductor cross section flexible0.2 mm² ... 0.5 mm² (up to 0.75 mm² supported, at a rated insulation voltage of 32 V at III/2)
Conductor cross section AWG / kcmil26 ... 20
Conductor cross section flexible, with ferrule without plastic sleeve0.25 mm² ... 0.5 mm²
Conductor cross section, flexible, with ferrule, with plastic sleeve0.25 mm² ... 0.34 mm²
Stripping length6 mm

Material data - contact

NoteWEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201
Contact materialCu alloy
Surface characteristicshot-dip tin-plated
Metal surface terminal point (top layer)Tin (4 - 8 µm Sn)
Metal surface soldering area (top layer)Tin (4 - 8 µm Sn)

Material data - housing

Insulating materialLCP
Insulating material groupIIIa
CTI according to IEC 60112175
Flammability rating according to UL 94V0

Dimensions for the product

Dimensional drawing
Length [ l ]7 mm
Width [ w ]10.1 mm
Height [ h ]9 mm
Pitch2.5 mm
Height (without solder pin)9 mm
Dimension a2.5 mm

Packaging information

Dimensional drawing
Type of packagingpacked in cardboard
Pieces per package400
Denomination packing unitsPcs.
[W] tape width44 mm
[A] coil diameter330 mm
[W2] coil overall dimension50.4 mm
Outer packaging typeTransparent-Bag

General product information

Type of noteNote on application
NotePick and place pads may protrude beyond the components. The PCB layout must ensure that collisions are avoided when components are assembled.

Processing notes

ProcessReflow soldering
SpecificationFollowing IPC/JEDEC J-STD-020D.1:2008-03
Following IEC 60068-2-58:2005-02
Moisture Sensitive LevelMSL 1
Classification temperature Tc260 °C
Solder cycles in the reflow3

Ambient conditions

Ambient temperature (storage/transport)-40 °C ... 70 °C
Ambient temperature (assembly)-5 °C ... 100 °C
Ambient temperature (operation)-40 °C (Depending on the current carrying capacity/derating curve)

Termination and connection method

Connection testIEC 60998-2-2:2002-12
Test resultTest passed
Test for conductor damage and slackeningIEC 60998-2-2:2002-12
Test passed

Pull-out test

Pull-out testIEC 60998-2-2:2002-12
Test passed
Conductor cross section / conductor type / tensile force0.14 mm² / solid / > 7 N
0.14 mm² / flexible / > 7 N
0.2 mm² / solid / > 10 N
0.5 mm² / solid / > 30 N
0.75 mm² / flexible / > 35 N

Electrical tests

Rated current6 A
Rated insulation voltage (III/2)160 V
Rated surge voltage (III/2)2.5 kV

Air clearances and creepage distances

Insulating material groupIIIa
Rated insulation voltage (III/3)32 V
Rated insulation voltage (III/2)160 V
Rated insulation voltage (II/2)160 V
Rated surge voltage (III/3)2.5 kV
Rated surge voltage (III/2)2.5 kV
Rated surge voltage (II/2)2.5 kV

Vibration test

Resistance to ageing, to humidity conditions, to ingress of solid objects and to harmful ingress of waterTest passed IEC 60998-1:2002-12 168 h/100°C 48 h/30 °C/92 %
Test resultTest passed
Test specificationIEC 60998-1:2002-12
Dry heat168 h/100°C
Humid heat48 h/30 °C/92 %

Resistance to ageing, humidity and penetration of solids

Test resultTest passed
Test specificationIEC 60998-1:2002-12
Dry heat168 h/100°C
Humid heat48 h/30 °C/92 %

Standards and Regulations

Connection in acc. with standardEN-VDE
UL
Flammability rating according to UL 94V0

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Classifications


ETIM for 1771091 Connectors (EC002643)
Feature Name Feature Value
Height (EF000040) 9 mm
Number of electrical connections (EF008252) 2
Number of levels (EF002659) 1
Modular spacing connections (EF006827) 2.5 mm
Rated current In (EF008250) 6 A
Rated voltage (EF000228) 160 V
Rated surge voltage (EF002993) 2.5 kV
Over voltage category (EF006785) III
Pollution degree (EF006786) 2
Connection type conductor (EF006821) Spring clamp connection
Connectable conductor cross section solid-core (EF007337) 0.14 mm²
Connectable conductor cross section fine-strand with cable end sleeve (EF007339) 0.25 mm²
Connectable conductor cross section fine-strand without cable end sleeve (EF007341) 0.2 mm²
Connectable conductor cross section multi-wired (EF007343) 0.5 mm²
Connection type PCB (EF006822) Soldering connection
Material connection surface (EF006826) Tin
Material insulation body (EF007543) Other
Housing colour (EF000136) Black
Inflammability class of insulation material according to UL94 (EF002521) V0
Operating temperature (EF002393) -40 °C
Type of PCB fastening (EF008226) Flange
Type of fastening (EF002442) Solder
Type of banding (EF007011) Blister girdle (for SMD)
