View larger
Images are for illustrative purposes only. Please refer to data sheet for details

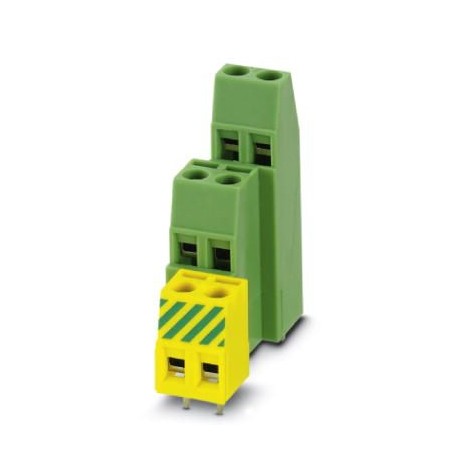

MK3DS 1,5/ 3-5,08-A-GNYE 1868720 PHOENIX CONTACT PCB terminal block
MK3DS 1,5/ 3-5,08-A-GNYE
1868720
PHOENIX CONTACT
50 Pcs.
PCB terminal block
Terminal block for printed circuit board, number of poles per row: 3, item family: MK3DS 1.5, pitch: 5.08 mm, screw clamping shape: L Longitudinal slot, color: green-yellow, Pin arrangement: Linear pin arrangement, Pin length [P]: 3.5 mm, packaging type: packaged in box. The item can be aligned with different numbers of poles!
Connectors > Printed circuit board terminal
PCB Connectors (PCC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1868720 |
|---|---|
| Packing unit | 50 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 99 (C-1-2013) |
| GTIN | 4017918141868 |
| Weight per Piece (excluding packing) | 11.650 g |
| Custom tariff number | 85369010 |
| Country of origin | DE (Germany) |
Item properties
| Number of positions | 3 |
|---|---|
| Drive form screw head | Slotted (L) |
| Screw thread | M3 |
| Pin layout | Linear pinning |
Dimensions for the product
| Length [ l ] | 32.25 mm |
|---|---|
| Width [ w ] | 17.78 mm |
| Height [ h ] | 36.6 mm |
| Pitch | 5.08 mm |
| Height (without solder pin) | 37 mm |
| Solder pin [P] | 3.5 mm |
| Dimension a | 10.16 mm |
Packaging information
| Type of packaging | packed in cardboard |
|---|---|
| Pieces per package | 50 |
| Denomination packing units | Pcs. |
Standards and Regulations
| Connection in acc. with standard | EN-VDE |
|---|---|
| CUL | |
| Flammability rating according to UL 94 | V0 |
Environmental Product Compliance
| China RoHS | Environmentally Friendly Use Period = 50 |
|---|---|
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss 4.027141109eCl@ss 4.127141109eCl@ss 5.027141190eCl@ss 5.127261100eCl@ss 6.027261100eCl@ss 7.027440401eCl@ss 8.027440401eCl@ss 9.027440401
| Feature Name | Feature Value |
|---|---|
| Height (EF000040) | 36.6 mm |
| Modular spacing connections (EF006827) | 5.08 mm |
| Over voltage category (EF006785) | III |
| Pollution degree (EF006786) | 2 |
| Connection type PCB (EF006822) | Soldering connection |
| Diameter connection pin (EF006823) | 1.3 mm |
| Length pin (EF006825) | 3.5 mm |
| Housing colour (EF000136) | Green/yellow |
| Type of banding (EF007011) | Carton (for SMD) |
