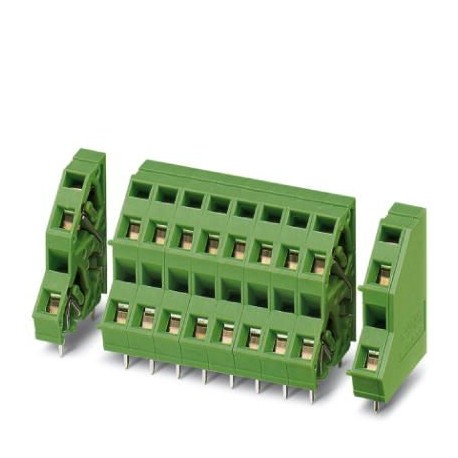

PHOENIX CONTACT ZFKKDS 1,5C-5,0 ZFKKDS 1,5C-5,0 1889301 PHOENIX CONTACT PCB terminal block View larger
Images are for illustrative purposes only. Please refer to data sheet for details

ZFKKDS 1,5C-5,0 1889301 PHOENIX CONTACT PCB terminal block

ZFKKDS 1,5C-5,0

1889301

PHOENIX CONTACT

50 Pcs.

PCB terminal block Printed circuit board terminal block, rated current: 16 A, rated voltage (III/2): 400 V, rated cross-section: 1.5 mm², number of potentials: 2, number of rows: 2, number of poles per row: 1, article family: ZFKKDS(A) 1.5C, pitch: 5 mm, connection type: Spring connection, mounting: Wave soldering, driver/printed circuit board connection direction: 45 °, color: green, Pin arrangement: Linear pin arrangement, Pin length [P]: 3.7 mm, number of solder pins per potential: 1, packaging type: boxed. Individual disc for the individual composition of different numbers of poles. To complete the block, an additional terminal block is required (see accessories). Block-bound items in different numbers of poles are also available.

Connectors > Printed circuit board terminal
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1889301
Packing unit50 pc
Minimum order quantity50 pc
Catalog pagePage 131 (C-1-2013)
GTIN4017918167967
Weight per Piece (excluding packing)2.800 g
Custom tariff number85369010
Country of originPL (Poland)

Dimensions

Length [ l ]21 mm
Pitch5 mm
Width [ w ]5 mm
Height26 mm
Height [ h ]29.7 mm
Solder pin [P]3.7 mm
Hole diameter1.1 mm

General

Range of articlesZFKKDS(A) 1,5C
Insulating material groupI
Rated surge voltage (III/3)4 kV
Rated surge voltage (III/2)4 kV
Rated surge voltage (II/2)4 kV
Rated voltage (III/3)250 V
Rated voltage (III/2)400 V
Rated voltage (II/2)630 V
Connection in acc. with standardEN-VDE
Nominal current IN16 A
Nominal cross section1.5 mm²
Maximum load current16 A (with a 2.5 mm² conductor cross section)
Insulating materialPA
Solder pin surface
Flammability rating according to UL 94V0
Internal cylindrical gageA1
Stripping length7 mm
Number of positions1

Connection data

Conductor cross section solid min.0.2 mm²
Conductor cross section solid max.2.5 mm²
Conductor cross section flexible min.0.2 mm²
Conductor cross section flexible max.1.5 mm²
Conductor cross section flexible, with ferrule without plastic sleeve min.0.25 mm²
Conductor cross section flexible, with ferrule without plastic sleeve max.1.5 mm²
Conductor cross section flexible, with ferrule with plastic sleeve min.0.25 mm²
Conductor cross section flexible, with ferrule with plastic sleeve max.1.5 mm²
Conductor cross section AWG min.24
Conductor cross section AWG max.14

Standards and Regulations

Connection in acc. with standardEN-VDE
CUL
Flammability rating according to UL 94V0

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Classifications


ETIM for 1889301 Connectors (EC002643)
Feature Name Feature Value
Height (EF000040) 29.7 mm
Number of electrical connections (EF008252) 2
Number of levels (EF002659) 2
Modular spacing connections (EF006827) 5 mm
Rated current In (EF008250) 16 A
Rated voltage (EF000228) 400 V
Rated surge voltage (EF002993) 4 kV
Over voltage category (EF006785) III
Pollution degree (EF006786) 2
Connection type conductor (EF006821) Spring clamp connection
Connectable conductor cross section solid-core (EF007337) 0.2 mm²
Connectable conductor cross section fine-strand with cable end sleeve (EF007339) 0.25 mm²
Connectable conductor cross section fine-strand without cable end sleeve (EF007341) 0.2 mm²
Connectable conductor cross section multi-wired (EF007343) 2.5 mm²
Connection type PCB (EF006822) Soldering connection
Material connection surface (EF006826) Tin
Diameter connection pin (EF006823) 1.1 mm
Length pin (EF006825) 3.7 mm
Material insulation body (EF007543) Other
Housing colour (EF000136) Green
Inflammability class of insulation material according to UL94 (EF002521) V0
Operating temperature (EF002393) -40 °C
Type of PCB fastening (EF008226) Connecting contact
Type of fastening (EF002442) Solder
Type of banding (EF007011) Carton (for SMD)
