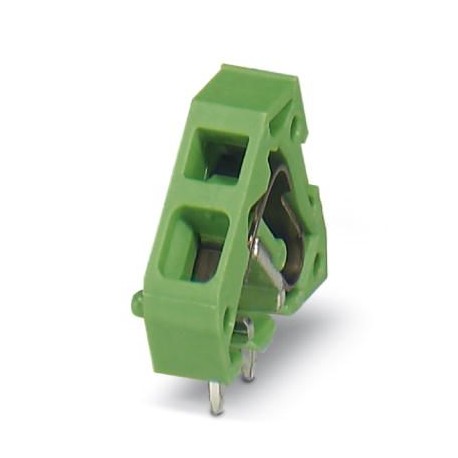

ZFKDS 2,5-5,08-EX 1732137 PHOENIX CONTACT PCB terminal block
ZFKDS 2,5-5,08-EX
1732137
PHOENIX CONTACT
50 Pcs.
PCB terminal block
Printed circuit board terminal block, nominal current: 22 A, nominal cross-section: 2.5 mm², number of potentials: 1, number of rows: 1, number of poles per row: 1, article family: ZFKDS(A) 2.5-EX, pitch: 5.08 mm, connection type: Spring connection, mounting: Wave soldering, conductor connection direction/printed circuit board: 45 °, color: green, Pin arrangement: Linear pin arrangement, Pin length [P]: 3.5 mm, number of solder pins per potential: 2, packaging type: boxed
Connectors > Printed circuit board terminal
PCB Connectors (PCC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1732137 |
|---|---|
| Packing unit | 50 pc |
| Minimum order quantity | 50 pc |
| Catalog page | Page 161 (C-1-2013) |
| GTIN | 4046356280679 |
| Weight per Piece (excluding packing) | 1.360 g |
| Custom tariff number | 85369010 |
| Country of origin | PL (Poland) |
Dimensions
| Length [ l ] | 16.85 mm |
|---|---|
| Pitch | 5.08 mm |
| Width [ w ] | 5.08 mm |
| Height | 14.2 mm |
| Height [ h ] | 17.7 mm |
| Solder pin [P] | 3.5 mm |
| Hole diameter | 1.3 mm |
General
| Range of articles | ZFKDS(A) 2,5-EX |
|---|---|
| Insulating material group | I |
| Nominal cross section | 2.5 mm² |
| Insulating material | PA |
| Solder pin surface | |
| Flammability rating according to UL 94 | V0 |
| Number of positions | 1 |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
eCl@ss 4.027141111eCl@ss 4.127141109eCl@ss 5.027141190eCl@ss 5.127261100eCl@ss 6.027261100eCl@ss 7.027440401eCl@ss 8.027440401eCl@ss 9.027440401
| Feature Name | Feature Value |
|---|---|
| Height (EF000040) | 17.7 mm |
| Number of electrical connections (EF008252) | 1 |
| Number of levels (EF002659) | 1 |
| Modular spacing connections (EF006827) | 5.08 mm |
| Rated current In (EF008250) | 22 A |
| Over voltage category (EF006785) | III |
| Pollution degree (EF006786) | 2 |
| Connection type conductor (EF006821) | Spring clamp connection |
| Connectable conductor cross section solid-core (EF007337) | 0.2 mm² |
| Connectable conductor cross section fine-strand without cable end sleeve (EF007341) | 0.2 mm² |
| Connectable conductor cross section multi-wired (EF007343) | 4 mm² |
| Connection type PCB (EF006822) | Soldering connection |
| Material connection surface (EF006826) | Tin |
| Diameter connection pin (EF006823) | 1.3 mm |
| Length pin (EF006825) | 3.5 mm |
| Material insulation body (EF007543) | Other |
| Housing colour (EF000136) | Green |
| Inflammability class of insulation material according to UL94 (EF002521) | V0 |
| Operating temperature (EF002393) | -40 °C |
| Type of PCB fastening (EF008226) | Connecting contact |
| Type of fastening (EF002442) | Solder |
| Type of banding (EF007011) | Carton (for SMD) |
