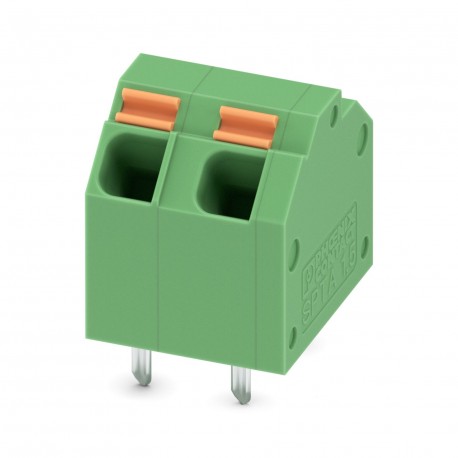

PHOENIX CONTACT SPTA 1,5/ 2-5,08 SPTA 1,5/ 2-5,08 1751163 PHOENIX CONTACT PCB terminal block View larger
Images are for illustrative purposes only. Please refer to data sheet for details

SPTA 1,5/ 2-5,08 1751163 PHOENIX CONTACT PCB terminal block

SPTA 1,5/ 2-5,08

1751163

PHOENIX CONTACT

100 Pcs.

PCB terminal block Terminal block for printed circuit board, nominal current: 9 A, nominal voltage (III/2): 320 V, nominal cross-section: 1.5 mm², number of potentials: 2, number of rows: 1, number of poles per row: 2, article family: SPTA 1.5/, pitch: 5.08 mm, connection type: Push-in spring connection, mounting: Wave soldering, conductor connection direction/printed circuit board: 45 °, color: green, Pin arrangement: Linear pin arrangement, Pin length [P]: 3.4 mm, number of welding pins per potential: 2, packaging type: boxed

Connectors > Printed circuit board terminal
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1751163
Packing unit100 pc
Minimum order quantity100 pc
Catalog pagePage 139 (C-1-2013)
GTIN4046356318105
Weight per Piece (excluding packing)1.850 g
Custom tariff number85369010
Country of originDE (Germany)

Item properties

Brief article descriptionPCB terminal block
Range of articlesSPTA 1,5/
Pitch5.08 mm
Number of positions2
Connection methodPush-in spring connection
Mounting typeWave soldering
Pin layoutLinear double pinning
Number of levels1
Number of connections2
Number of potentials2

Electrical parameters

Rated current9 A
Rated insulation voltage (III/2)320 V
Rated surge voltage (III/2)4 kV

Connection capacity

Conductor cross section solid0.2 mm² ... 1.5 mm²
Conductor cross section flexible0.2 mm² ... 1.5 mm²
Conductor cross section AWG / kcmil24 ... 16
Conductor cross section flexible, with ferrule without plastic sleeve0.25 mm² ... 1.5 mm²
Conductor cross section, flexible, with ferrule, with plastic sleeve0.25 mm² ... 1.5 mm²
Stripping length10 mm

Material data - contact

NoteWEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201
Contact materialCu alloy
Surface characteristicsTin-plated
Metal surface terminal point (top layer)Tin (4 - 8 µm Sn)
Metal surface soldering area (top layer)Tin (4 - 8 µm Sn)

Material data - housing

Insulating materialPA
Insulating material groupI
CTI according to IEC 60112600
Flammability rating according to UL 94V0
Glow wire flammability index GWFI according to EN 60695-2-12850
Glow wire ignition temperature GWIT according to EN 60695-2-13775
Temperature for the ball pressure test according to EN 60695-10-2125 °C

Dimensions for the product

Dimensional drawing
Length [ l ]12 mm
Width [ w ]10.39 mm
Height [ h ]15.4 mm
Pitch5.08 mm
Height (without solder pin)12 mm
Solder pin [P]3.4 mm
Pin spacing7 mm
Pin dimensions0.6 x 1 mm
Dimension a5.08 mm

Dimensions for PCB design

Hole diameter1.1 mm
Pin spacing7 mm

Packaging information

Type of packagingpacked in cardboard
Pieces per package100
Denomination packing unitsPcs.

Ambient conditions

Ambient temperature (storage/transport)-40 °C ... 70 °C
Ambient temperature (assembly)-5 °C ... 100 °C
Ambient temperature (operation)-40 °C (Depending on the current carrying capacity/derating curve)

Termination and connection method

Connection testIEC 60998-2-2:2002-12
Test resultTest passed
Test for conductor damage and slackeningIEC 60998-2-2:2002-12
Test passed

Pull-out test

Pull-out testIEC 60998-2-2:2002-12
Test passed
Conductor cross section / conductor type / tensile force0.2 mm² / solid / > 10 N
0.2 mm² / flexible / > 10 N
1.5 mm² / solid / > 40 N
1.5 mm² / flexible / > 40 N

Electrical tests

Rated current9 A
Rated insulation voltage (III/2)320 V
Rated surge voltage (III/2)4 kV

Air clearances and creepage distances

SpecificationIEC 60664-1:1992-10 + A1:2000-02 + A2:2002-05
Insulating material groupI
Rated insulation voltage (III/3)250 V
Rated insulation voltage (III/2)320 V
Rated insulation voltage (II/2)630 V
Rated surge voltage (III/3)4 kV
Rated surge voltage (III/2)4 kV
Rated surge voltage (II/2)4 kV

Vibration test

Resistance to ageing, to humidity conditions, to ingress of solid objects and to harmful ingress of waterTest passed IEC 60998-1:2002-12 168 h/100°C 48 h/30 °C/92 %
Test resultTest passed
Test specificationIEC 60998-1:2002-12
Dry heat168 h/100°C
Humid heat48 h/30 °C/92 %

Resistance to ageing, humidity and penetration of solids

Test resultTest passed
Test specificationIEC 60998-1:2002-12
Dry heat168 h/100°C
Humid heat48 h/30 °C/92 %

Standards and Regulations

Connection in acc. with standardEN-VDE
CUL
Flammability rating according to UL 94V0

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Classifications


ETIM for 1751163 Connectors (EC002643)
Feature Name Feature Value
Height (EF000040) 15.4 mm
Number of electrical connections (EF008252) 2
Number of levels (EF002659) 1
Modular spacing connections (EF006827) 5.08 mm
Rated current In (EF008250) 17.5 A
Rated voltage (EF000228) 320 V
Rated surge voltage (EF002993) 4 kV
Over voltage category (EF006785) III
Pollution degree (EF006786) 2
Connection type conductor (EF006821) Spring clamp connection
Connectable conductor cross section solid-core (EF007337) 0.2 mm²
Connectable conductor cross section fine-strand with cable end sleeve (EF007339) 0.25 mm²
Connectable conductor cross section fine-strand without cable end sleeve (EF007341) 0.2 mm²
Connectable conductor cross section multi-wired (EF007343) 1.5 mm²
Connection type PCB (EF006822) Soldering connection
Material connection surface (EF006826) Tin
Diameter connection pin (EF006823) 1.1 mm
Length pin (EF006825) 3.4 mm
Material insulation body (EF007543) Other
Housing colour (EF000136) Green
Inflammability class of insulation material according to UL94 (EF002521) V0
Operating temperature (EF002393) -40 °C
Type of PCB fastening (EF008226) Connecting contact
Type of fastening (EF002442) Solder
Type of banding (EF007011) Carton (for SMD)

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
