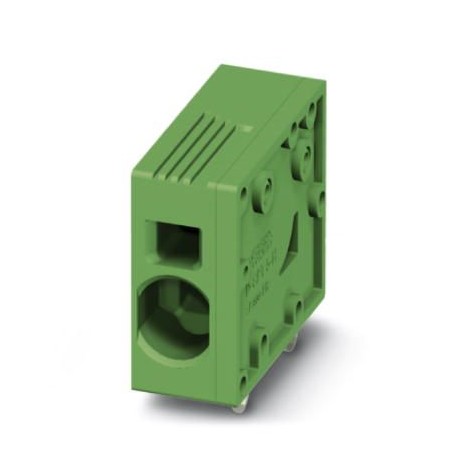

SPT 5/ 1-H-7,5 1719189 PHOENIX CONTACT PCB terminal block

SPT 5/ 1-H-7,5

1719189

PHOENIX CONTACT

50 Pcs.

PCB terminal block Terminal block for printed circuit board, nominal current: 41 A, nominal voltage (III/2): 630 V, nominal section: 6 mm², number of potentials: 1, number of rows: 1, number of poles per row: 1, article family: SPT 5/.. -H, pitch: 7.5 mm, connection type: Push-in spring connection, mounting: Wave soldering, conductor connection direction/printed circuit board: 0 °, color: green, Pin arrangement: Linear pin arrangement, Pin length [P]: 4.6 mm, number of solder pins per potential: 2, packaging type: boxed

Connectors > Printed circuit board terminal
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1719189
Packing unit50 pc
Minimum order quantity50 pc
Catalog pagePage 463 (C-1-2013)
GTIN4046356141284
Weight per Piece (excluding packing)4.840 g
Custom tariff number85369010
Country of originBG (Bulgaria)

Item properties

Brief article descriptionPCB terminal block
Range of articlesSPT 5/..-H
Pitch7.5 mm
Number of positions1
Connection methodPush-in spring connection
Mounting typeWave soldering
Pin layoutLinear double pinning
Number of levels1
Number of connections1
Number of potentials1

Electrical parameters

Rated current41 A
Rated insulation voltage (III/2)1000 V
Rated surge voltage (III/2)6 kV

Connection capacity

Conductor cross section solid0.2 mm² ... 10 mm²
Conductor cross section flexible0.2 mm² ... 6 mm²
Conductor cross section AWG / kcmil24 ... 8
Conductor cross section flexible, with ferrule without plastic sleeve0.25 mm² ... 6 mm²
Conductor cross section, flexible, with ferrule, with plastic sleeve0.25 mm² ... 4 mm²
2 conductors with same cross section, stranded, with TWIN ferrules with plastic sleeve0.25 mm² ... 1.5 mm²
Stripping length15 mm

Material data - contact

NoteWEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201
Contact materialCu alloy
Surface characteristicsTin-plated
Metal surface terminal point (top layer)Tin (4 - 8 µm Sn)
Metal surface soldering area (top layer)Tin (4 - 8 µm Sn)

Material data - housing

Insulating materialPA
Insulating material groupI
CTI according to IEC 60112600
Flammability rating according to UL 94V0
Glow wire flammability index GWFI according to EN 60695-2-12850
Glow wire ignition temperature GWIT according to EN 60695-2-13775
Temperature for the ball pressure test according to EN 60695-10-2125 °C

Dimensions for the product

Length [ l ]24.15 mm
Width [ w ]9.3 mm
Height [ h ]19 mm
Pitch7.5 mm
Height (without solder pin)14.4 mm
Solder pin [P]4.6 mm
Pin spacing13.2 mm
Pin dimensions1.7 x 0.8 mm
Dimension a0 mm

Dimensions for PCB design

Hole diameter2.1 mm
Pin spacing13.2 mm

Packaging information

Type of packagingpacked in cardboard
Pieces per package50
Denomination packing unitsPcs.

Ambient conditions

Ambient temperature (storage/transport)-40 °C ... 70 °C
Ambient temperature (assembly)-5 °C ... 100 °C
Ambient temperature (operation)-40 °C (dependent on the derating curve)

Termination and connection method

Connection testIEC 60998-2-2:2002-12
Test resultTest passed
Test for conductor damage and slackeningIEC 60998-2-2:2002-12
Test passed

Pull-out test

Pull-out testIEC 60998-2-2:2002-12
Test passed
Conductor cross section / conductor type / tensile force0.2 mm² / solid / > 10 N
0.2 mm² / flexible / > 10 N
10 mm² / solid / > 90 N
6 mm² / flexible / > 80 N

Electrical tests

Rated current41 A
Rated insulation voltage (III/2)1000 V
Rated surge voltage (III/2)6 kV

Air clearances and creepage distances

Insulating material groupI
Rated insulation voltage (III/3)630 V
Rated insulation voltage (III/2)1000 V
Rated insulation voltage (II/2)1000 V
Rated surge voltage (III/3)6 kV
Rated surge voltage (III/2)6 kV
Rated surge voltage (II/2)6 kV

Vibration test

Resistance to ageing, to humidity conditions, to ingress of solid objects and to harmful ingress of waterTest passed IEC 60998-1:2002-12 168 h/100°C 48 h/30 °C/92 %
Test resultTest passed
Test specificationIEC 60998-1:2002-12
Dry heat168 h/100°C
Humid heat48 h/30 °C/92 %

Resistance to ageing, humidity and penetration of solids

Test resultTest passed
Test specificationIEC 60998-1:2002-12
Dry heat168 h/100°C
Humid heat48 h/30 °C/92 %

Standards and Regulations

Connection in acc. with standardEN-VDE
CUL
Flammability rating according to UL 94V0

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Classifications


Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
