PHOENIX CONTACT SPT 2,5/ 4-V-5,0-EX SPT 2,5/ 4-V-5,0-EX 1732519 PHOENIX CONTACT PCB terminal block View larger
Images are for illustrative purposes only. Please refer to data sheet for details

SPT 2,5/ 4-V-5,0-EX 1732519 PHOENIX CONTACT PCB terminal block

SPT 2,5/ 4-V-5,0-EX

1732519

PHOENIX CONTACT

50 Pcs.

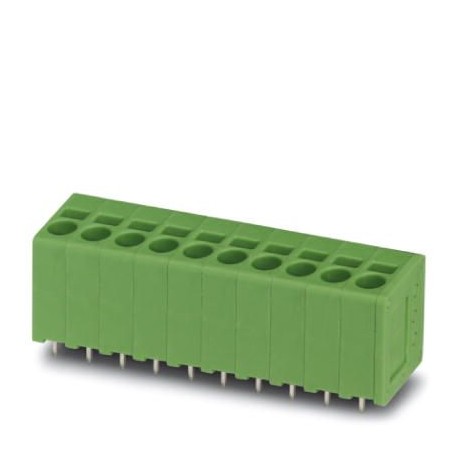

PCB terminal block Terminal block for printed circuit board, nominal current: 23 A, nominal section: 2.5 mm², number of potentials: 4, number of rows: 1, number of poles per row: 4, family of articles: SPT 2.5/.. -V-EX, pitch: 5 mm, connection type: Push-in spring connection, mounting: Wave soldering, conductor connection direction/printed circuit board: 90 °, color: green, Pin arrangement: Linear pin arrangement, Pin length [P]: 2.5 mm, number of solder pins per potential: 2, packaging type: boxed

Connectors > Printed circuit board terminal
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1732519
Packing unit50 pc
Minimum order quantity50 pc
Catalog pagePage 163 (C-1-2013)
GTIN4046356282833
Weight per Piece (excluding packing)5.000 g
Custom tariff number85369010
Country of originDE (Germany)

Dimensions

Length [ l ]13.5 mm
Pitch5 mm
Dimension a15 mm
Width [ w ]21.4 mm
Height14.4 mm
Height [ h ]16.9 mm
Solder pin [P]2.5 mm
Pin spacing8.2 mm
Hole diameter1.1 mm

General

Range of articlesSPT 2,5/..-V-EX
Insulating material groupI
Nominal cross section2.5 mm²
Insulating materialPA
Solder pin surface
Flammability rating according to UL 94V0
Number of positions4

Standards and Regulations

Flammability rating according to UL 94V0

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Classifications


ETIM for 1732519 Connectors (EC002643)
Feature Name Feature Value
Height (EF000040) 16.9 mm
Number of electrical connections (EF008252) 4
Number of levels (EF002659) 1
Modular spacing connections (EF006827) 5 mm
Rated current In (EF008250) 23 A
Over voltage category (EF006785) III
Pollution degree (EF006786) 2
Connection type conductor (EF006821) Spring clamp connection
Connectable conductor cross section solid-core (EF007337) 0.2 mm²
Connectable conductor cross section fine-strand with cable end sleeve (EF007339) 0.25 mm²
Connectable conductor cross section fine-strand without cable end sleeve (EF007341) 0.2 mm²
Connectable conductor cross section multi-wired (EF007343) 4 mm²
Connection type PCB (EF006822) Soldering connection
Material connection surface (EF006826) Tin
Diameter connection pin (EF006823) 1.2 mm
Length pin (EF006825) 2.5 mm
Material insulation body (EF007543) Other
Housing colour (EF000136) Green
Inflammability class of insulation material according to UL94 (EF002521) V0
Operating temperature (EF002393) -50 °C
Type of PCB fastening (EF008226) Connecting contact
Type of fastening (EF002442) Solder
Type of banding (EF007011) Carton (for SMD)

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
