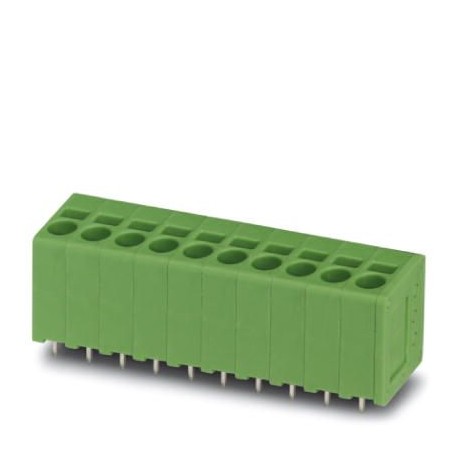

PHOENIX CONTACT SPT 2,5/ 2-V-5,0 SPT 2,5/ 2-V-5,0 1991095 PHOENIX CONTACT PCB terminal block View larger
Images are for illustrative purposes only. Please refer to data sheet for details

SPT 2,5/ 2-V-5,0 1991095 PHOENIX CONTACT PCB terminal block

SPT 2,5/ 2-V-5,0

1991095

PHOENIX CONTACT

240 Pcs.

PCB terminal block Terminal block for printed circuit board, nominal current: 24 A, nominal voltage (III/2): 400 V, nominal section: 2.5 mm², number of potentials: 2, number of rows: 1, number of poles per row: 2, family of articles: SPT 2.5/.. -V, pitch: 5 mm, connection type: Push-in spring connection, mounting: Wave soldering, conductor/printed circuit board connection direction: 90 °, color: green, Pin arrangement: Linear pin arrangement, Pin length [P]: 2.5 mm, number of solder pins per potential: 2, packaging type: boxed

Connectors > Printed circuit board terminal
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1991095
Packing unit100 pc
Minimum order quantity100 pc
Catalog pagePage 143 (C-1-2013)
GTIN4046356104715
Weight per Piece (excluding packing)2.650 g
Custom tariff number85369010
Country of originPL (Poland)

Item properties

Brief article descriptionPCB terminal block
Range of articlesSPT 2,5/..-V
Pitch5 mm
Number of positions2
Connection methodPush-in spring connection
Mounting typeWave soldering
Pin layoutLinear double pinning
Number of levels1
Number of connections2
Number of potentials2

Electrical parameters

Rated current24 A
Rated insulation voltage (III/2)400 V
Rated surge voltage (III/2)4 kV

Connection capacity

Conductor cross section solid0.2 mm² ... 4 mm²
Conductor cross section flexible0.2 mm² ... 2.5 mm²
Conductor cross section AWG / kcmil24 ... 12
Conductor cross section flexible, with ferrule without plastic sleeve0.25 mm² ... 2.5 mm² (Stripping length 8 mm)
Conductor cross section, flexible, with ferrule, with plastic sleeve0.25 mm² ... 1.5 mm² (Stripping length 8 mm)
Stripping length10 mm

Material data - contact

NoteWEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201
Contact materialCu alloy
Surface characteristicshot-dip tin-plated
Metal surface terminal point (top layer)Tin (4 - 8 µm Sn)
Metal surface soldering area (top layer)Tin (4 - 8 µm Sn)

Material data - housing

Insulating materialPA
Insulating material groupI
CTI according to IEC 60112600
Flammability rating according to UL 94V0
Glow wire flammability index GWFI according to EN 60695-2-12850
Glow wire ignition temperature GWIT according to EN 60695-2-13775
Temperature for the ball pressure test according to EN 60695-10-2125 °C

Dimensions for the product

Dimensional drawing
Length [ l ]13.5 mm
Width [ w ]11.4 mm
Height [ h ]16.9 mm
Pitch5 mm
Height (without solder pin)14.4 mm
Solder pin [P]2.5 mm
Pin spacing8.2 mm
Pin dimensions0.8 x 0.8 mm
Dimension a5 mm

Dimensions for PCB design

Hole diameter1.1 mm
Pin spacing8.2 mm

Packaging information

Type of packagingpacked in cardboard
Pieces per package100
Denomination packing unitsPcs.

Ambient conditions

Ambient temperature (storage/transport)-40 °C ... 70 °C
Ambient temperature (assembly)-5 °C ... 100 °C
Ambient temperature (operation)-40 °C (Depending on the current carrying capacity/derating curve)

Termination and connection method

Connection testIEC 60998-2-2:2002-12
Test resultTest passed
Test for conductor damage and slackeningIEC 60998-2-2:2002-12
Test passed

Pull-out test

Pull-out testIEC 60998-2-2:2002-12
Test passed
Conductor cross section / conductor type / tensile force0.2 mm² / solid / > 10 N
0.2 mm² / flexible / > 10 N
4 mm² / solid / > 60 N
2.5 mm² / flexible / > 50 N

Electrical tests

Rated current24 A
Rated insulation voltage (III/2)400 V
Rated surge voltage (III/2)4 kV

Air clearances and creepage distances

Insulating material groupI
Rated insulation voltage (III/3)250 V
Rated insulation voltage (III/2)400 V
Rated insulation voltage (II/2)630 V
Rated surge voltage (III/3)4 kV
Rated surge voltage (III/2)4 kV
Rated surge voltage (II/2)4 kV

Vibration test

Resistance to ageing, to humidity conditions, to ingress of solid objects and to harmful ingress of waterTest passed IEC 60998-1:2002-12 168 h/100°C 48 h/30 °C/92 %
Test resultTest passed
Test specificationIEC 60998-1:2002-12
Dry heat168 h/100°C
Humid heat48 h/30 °C/92 %

Resistance to ageing, humidity and penetration of solids

Test resultTest passed
Test specificationIEC 60998-1:2002-12
Dry heat168 h/100°C
Humid heat48 h/30 °C/92 %

Standards and Regulations

Connection in acc. with standardEN-VDE
CUL
Flammability rating according to UL 94V0

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Classifications


ETIM for 1991095 Connectors (EC002643)
Feature Name Feature Value
Height (EF000040) 16.9 mm
Number of electrical connections (EF008252) 2
Number of levels (EF002659) 1
Modular spacing connections (EF006827) 5 mm
Rated current In (EF008250) 24 A
Rated voltage (EF000228) 400 V
Rated surge voltage (EF002993) 4 kV
Over voltage category (EF006785) III
Pollution degree (EF006786) 2
Connection type conductor (EF006821) Spring clamp connection
Connectable conductor cross section solid-core (EF007337) 0.2 mm²
Connectable conductor cross section fine-strand with cable end sleeve (EF007339) 0.25 mm²
Connectable conductor cross section fine-strand without cable end sleeve (EF007341) 0.2 mm²
Connectable conductor cross section multi-wired (EF007343) 4 mm²
Connection type PCB (EF006822) Soldering connection
Material connection surface (EF006826) Tin
Diameter connection pin (EF006823) 1.2 mm
Length pin (EF006825) 2.5 mm
Material insulation body (EF007543) Other
Housing colour (EF000136) Green
Inflammability class of insulation material according to UL94 (EF002521) V0
Operating temperature (EF002393) -40 °C
Type of banding (EF007011) Carton (for SMD)
