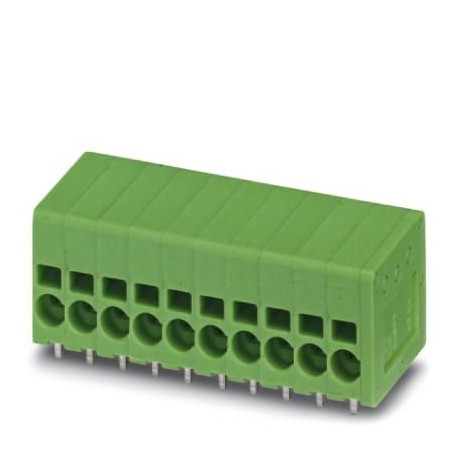

PHOENIX CONTACT SPT 1,5/ 9-H-3,5 SPT 1,5/ 9-H-3,5 1990805 PHOENIX CONTACT PCB terminal block View larger
Images are for illustrative purposes only. Please refer to data sheet for details

SPT 1,5/ 9-H-3,5 1990805 PHOENIX CONTACT PCB terminal block

SPT 1,5/ 9-H-3,5

1990805

PHOENIX CONTACT

80 Pcs.

PCB terminal block Terminal block for printed circuit board, nominal current: 17.5 A, nominal voltage (III/2): 200 V, nominal section: 1.5 mm², number of potentials: 9, number of rows: 1, number of poles per row: 9, family of articles: SPT 1.5/.. -H, pitch: 3.5 mm, connection type: Push-in spring connection, mounting: Wave soldering, conductor connection direction/printed circuit board: 0 °, color: green, Pin arrangement: Linear pin arrangement, Pin length [P]: 2.5 mm, number of solder pins per potential: 2, packaging type: boxed

Connectors > Printed circuit board terminal
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1990805
Packing unit50 pc
Minimum order quantity50 pc
NoteMade to Order (non-returnable)
Catalog pagePage 141 (C-1-2013)
GTIN4046356104449
Weight per Piece (excluding packing)7.580 g
Custom tariff number85369010
Country of originPL (Poland)

Dimensions

Length [ l ]14.4 mm
Pitch3.5 mm
Dimension a28 mm
Width [ w ]32.9 mm
Height13.5 mm
Height [ h ]16 mm
Solder pin [P]2.5 mm
Pin spacing3.5 mm
Hole diameter1.1 mm

General

Range of articlesSPT 1,5/..-H
Insulating material groupI
Rated surge voltage (III/3)2.5 kV
Rated surge voltage (III/2)2.5 kV
Rated surge voltage (II/2)2.5 kV
Rated voltage (III/3)160 V
Rated voltage (III/2)200 V
Rated voltage (II/2)400 V
Connection in acc. with standardEN-VDE
Nominal current IN17.5 A
Nominal cross section1.5 mm²
Maximum load current17.5 A
Insulating materialPA
Solder pin surface
Flammability rating according to UL 94V0
Stripping length10 mm
Number of positions9

Connection data

Conductor cross section solid min.0.2 mm²
Conductor cross section solid max.1.5 mm²
Conductor cross section flexible min.0.2 mm²
Conductor cross section flexible max.1.5 mm²
Conductor cross section flexible, with ferrule without plastic sleeve min.0.25 mm² Stripping length 8 mm
Conductor cross section flexible, with ferrule without plastic sleeve max.1.5 mm² Stripping length 8 mm
Conductor cross section flexible, with ferrule with plastic sleeve min.0.25 mm² Stripping length 8 mm
Conductor cross section flexible, with ferrule with plastic sleeve max.0.75 mm² Stripping length 8 mm
Conductor cross section AWG min.24
Conductor cross section AWG max.16

Standards and Regulations

Connection in acc. with standardEN-VDE
CUL
Flammability rating according to UL 94V0

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Classifications


ETIM for 1990805 Connectors (EC002643)
Feature Name Feature Value
Height (EF000040) 16 mm
Number of electrical connections (EF008252) 9
Number of levels (EF002659) 1
Modular spacing connections (EF006827) 3.5 mm
Rated current In (EF008250) 17.5 A
Rated voltage (EF000228) 200 V
Rated surge voltage (EF002993) 2.5 kV
Over voltage category (EF006785) III
Pollution degree (EF006786) 2
Connection type conductor (EF006821) Spring clamp connection
Connectable conductor cross section solid-core (EF007337) 0.2 mm²
Connectable conductor cross section fine-strand with cable end sleeve (EF007339) 0.25 mm²
Connectable conductor cross section fine-strand without cable end sleeve (EF007341) 0.2 mm²
Connectable conductor cross section multi-wired (EF007343) 1.5 mm²
Connection type PCB (EF006822) Soldering connection
Material connection surface (EF006826) Tin
Diameter connection pin (EF006823) 1.2 mm
Length pin (EF006825) 2.5 mm
Material insulation body (EF007543) Other
Housing colour (EF000136) Green
Inflammability class of insulation material according to UL94 (EF002521) V0
Operating temperature (EF002393) -40 °C
Type of banding (EF007011) Carton (for SMD)
