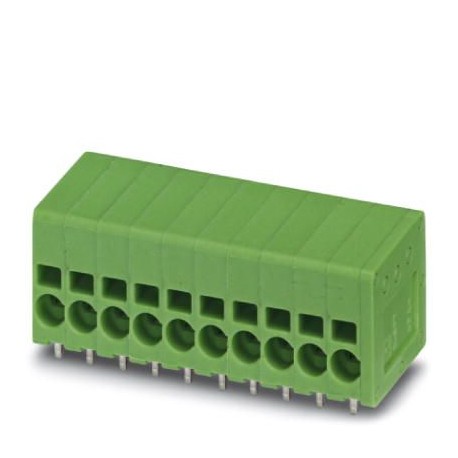

PHOENIX CONTACT SPT 1,5/ 5-H-3,5 SPT 1,5/ 5-H-3,5 1990766 PHOENIX CONTACT PCB terminal block View larger
Images are for illustrative purposes only. Please refer to data sheet for details

SPT 1,5/ 5-H-3,5 1990766 PHOENIX CONTACT PCB terminal block

SPT 1,5/ 5-H-3,5

1990766

PHOENIX CONTACT

140 Pcs.

PCB terminal block Terminal block for printed circuit board, nominal current: 17.5 A, nominal voltage (III/2): 200 V, nominal section: 1.5 mm², number of potentials: 5, number of rows: 1, number of poles per row: 5, family of articles: SPT 1.5/.. -H, pitch: 3.5 mm, connection type: Push-in spring connection, mounting: Wave soldering, conductor connection direction/printed circuit board: 0 °, color: green, Pin arrangement: Linear pin arrangement, Pin length [P]: 2.5 mm, number of solder pins per potential: 2, packaging type: boxed

Connectors > Printed circuit board terminal
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1990766
Packing unit100 pc
Minimum order quantity100 pc
Catalog pagePage 141 (C-1-2013)
GTIN4046356128568
Weight per Piece (excluding packing)4.000 g
Custom tariff number85369010
Country of originPL (Poland)

Dimensions

Length [ l ]14.4 mm
Pitch3.5 mm
Dimension a14 mm
Width [ w ]18.9 mm
Height13.5 mm
Height [ h ]16 mm
Solder pin [P]2.5 mm
Pin spacing3.5 mm
Hole diameter1.1 mm

General

Range of articlesSPT 1,5/..-H
Insulating material groupI
Rated surge voltage (III/3)2.5 kV
Rated surge voltage (III/2)2.5 kV
Rated surge voltage (II/2)2.5 kV
Rated voltage (III/3)160 V
Rated voltage (III/2)200 V
Rated voltage (II/2)400 V
Connection in acc. with standardEN-VDE
Nominal current IN17.5 A
Nominal cross section1.5 mm²
Maximum load current17.5 A
Insulating materialPA
Solder pin surface
Flammability rating according to UL 94V0
Stripping length10 mm
Number of positions5

Connection data

Conductor cross section solid min.0.2 mm²
Conductor cross section solid max.1.5 mm²
Conductor cross section flexible min.0.2 mm²
Conductor cross section flexible max.1.5 mm²
Conductor cross section flexible, with ferrule without plastic sleeve min.0.25 mm² Stripping length 8 mm
Conductor cross section flexible, with ferrule without plastic sleeve max.1.5 mm² Stripping length 8 mm
Conductor cross section flexible, with ferrule with plastic sleeve min.0.25 mm² Stripping length 8 mm
Conductor cross section flexible, with ferrule with plastic sleeve max.0.75 mm² Stripping length 8 mm
Conductor cross section AWG min.24
Conductor cross section AWG max.16

Standards and Regulations

Connection in acc. with standardEN-VDE
CUL
Flammability rating according to UL 94V0

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Classifications


Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
