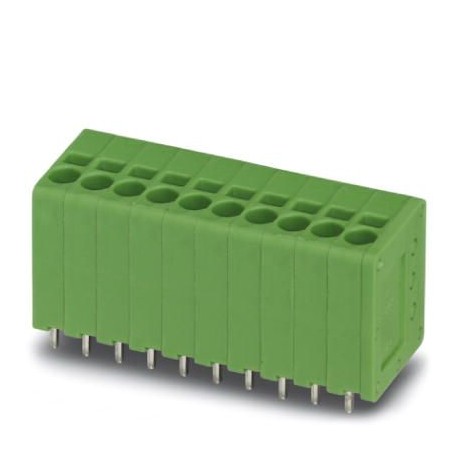

PHOENIX CONTACT SPT 1,5/ 3-V-3,5 SPT 1,5/ 3-V-3,5 1990863 PHOENIX CONTACT PCB terminal block View larger
Images are for illustrative purposes only. Please refer to data sheet for details

SPT 1,5/ 3-V-3,5 1990863 PHOENIX CONTACT PCB terminal block

SPT 1,5/ 3-V-3,5

1990863

PHOENIX CONTACT

240 Pcs.

PCB terminal block Terminal block for printed circuit board, nominal current: 17.5 A, nominal voltage (III/2): 200 V, nominal section: 1.5 mm², number of potentials: 3, number of rows: 1, number of poles per row: 3, family of articles: SPT 1.5/.. -V, pitch: 3.5 mm, connection type: Push-in spring connection, mounting: Wave soldering, conductor connection direction/printed circuit board: 90 °, color: green, Pin arrangement: Linear pin arrangement, Pin length [P]: 2.5 mm, number of solder pins per potential: 2, packaging type: boxed

Connectors > Printed circuit board terminal
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1990863
Packing unit100 pc
Minimum order quantity100 pc
Catalog pagePage 141 (C-1-2013)
GTIN4046356104494
Weight per Piece (excluding packing)2.830 g
Custom tariff number85369010
Country of originPL (Poland)

Item properties

Brief article descriptionPCB terminal block
Range of articlesSPT 1,5/..-V
Pitch3.5 mm
Number of positions3
Connection methodPush-in spring connection
Mounting typeWave soldering
Pin layoutLinear double pinning
Number of levels1
Number of connections3
Number of potentials3

Electrical parameters

Rated current17.5 A
Rated insulation voltage (III/2)200 V
Rated surge voltage (III/2)2.5 kV

Connection data

Conductor cross section solid min.0.2 mm²
Conductor cross section solid max.1.5 mm²
Conductor cross section flexible min.0.2 mm²
Conductor cross section flexible max.1.5 mm²
Conductor cross section flexible, with ferrule without plastic sleeve min.0.25 mm² Stripping length 8 mm
Conductor cross section flexible, with ferrule without plastic sleeve max.1.5 mm² Stripping length 8 mm
Conductor cross section flexible, with ferrule with plastic sleeve min.0.25 mm² Stripping length 8 mm
Conductor cross section flexible, with ferrule with plastic sleeve max.0.75 mm² Stripping length 8 mm
Conductor cross section AWG min.24
Conductor cross section AWG max.16

Material data - contact

NoteWEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201
Contact materialCu alloy
Surface characteristicshot-dip tin-plated
Metal surface terminal point (top layer)Tin (4 - 8 µm Sn)
Metal surface soldering area (top layer)Tin (4 - 8 µm Sn)

Material data - housing

Insulating materialPA
Insulating material groupI
CTI according to IEC 60112600
Flammability rating according to UL 94V0
Glow wire flammability index GWFI according to EN 60695-2-12850
Glow wire ignition temperature GWIT according to EN 60695-2-13775
Temperature for the ball pressure test according to EN 60695-10-2125 °C

Dimensions for the product

Dimensional drawing
CaptionSchematic representation – for additional information, see product range drawing in the Download Center
Length [ l ]13.5 mm
Width [ w ]11.9 mm
Height [ h ]16.9 mm
Pitch3.5 mm
Height (without solder pin)14.4 mm
Solder pin [P]2.5 mm
Pin spacing3.5 mm
Pin dimensions0.8 x 0.8 mm
Dimension a7 mm

Dimensions for PCB design

Hole diameter1.1 mm
Pin spacing3.5 mm

Packaging information

Type of packagingpacked in cardboard
Pieces per package100
Denomination packing unitsPcs.

Standards and Regulations

Connection in acc. with standardEN-VDE
CUL
Flammability rating according to UL 94V0

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Classifications


ETIM for 1990863 Connectors (EC002643)
Feature Name Feature Value
Height (EF000040) 16.9 mm
Number of electrical connections (EF008252) 3
Number of levels (EF002659) 1
Modular spacing connections (EF006827) 3.5 mm
Rated current In (EF008250) 17.5 A
Rated voltage (EF000228) 200 V
Rated surge voltage (EF002993) 2.5 kV
Over voltage category (EF006785) III
Pollution degree (EF006786) 2
Connection type conductor (EF006821) Spring clamp connection
Connectable conductor cross section solid-core (EF007337) 0.2 mm²
Connectable conductor cross section fine-strand with cable end sleeve (EF007339) 0.25 mm²
Connectable conductor cross section fine-strand without cable end sleeve (EF007341) 0.2 mm²
Connectable conductor cross section multi-wired (EF007343) 1.5 mm²
Connection type PCB (EF006822) Soldering connection
Material connection surface (EF006826) Tin
Diameter connection pin (EF006823) 1.2 mm
Length pin (EF006825) 2.5 mm
Material insulation body (EF007543) Other
Housing colour (EF000136) Green
Inflammability class of insulation material according to UL94 (EF002521) V0
Operating temperature (EF002393) -40 °C
Type of banding (EF007011) Carton (for SMD)
