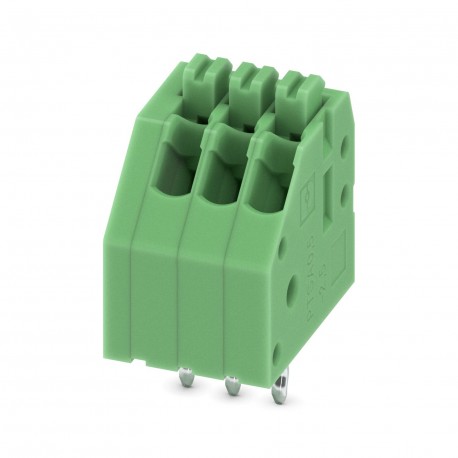

PHOENIX CONTACT PTSA 0,5/ 3-2,5-F PTSA 0,5/ 3-2,5-F 1989751 PHOENIX CONTACT PCB terminal block View larger
Images are for illustrative purposes only. Please refer to data sheet for details

PTSA 0,5/ 3-2,5-F 1989751 PHOENIX CONTACT PCB terminal block

PTSA 0,5/ 3-2,5-F

1989751

PHOENIX CONTACT

250 Pcs.

PCB terminal block Terminal block for printed circuit board, nominal current: 2 A, nominal voltage (III/2): 250 V, nominal cross-section: 0.5 mm², number of potentials: 3, number of rows: 1, number of poles per row: 3, article family: PTSA 0.5, pitch: 2.5 mm, connection type: Push-in spring connection, mounting: Wave soldering, conductor connection direction/printed circuit board: 45 °, color: green, Pin arrangement: Linear pin arrangement, Pin length [P]: 3.6 mm, number of welding pins per potential: 1, packaging type: boxed. Welding pins in the anterior area, one row PCB terminal, Rated current: 2 A, Rated voltage (III/2): 250 V, Nominal cross-section: 0.5 mm2, Number of potentials: 3, Number of rows: 1, Number of poles per row: 3, Article family: PTSA 0.5, Pitch: 2.5 mm, Connection type: Push-in spring connection, Mounting: Wave soldering, Conductor/board connection direction: 45 °, Color: green, Pin layout: Linear pinning, Pin length [P]: 3.6 mm, Number of solder pins per potential: 1, Packaging type: packed in a carton. Soldering legs in the front area, single-row

Connectors > Printed circuit board terminal
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1989751
Packing unit250 pc
Minimum order quantity250 pc
Catalog pagePage 411 (C-1-2013)
GTIN4017918973353
Weight per Piece (excluding packing)1.160 g
Custom tariff number85369010
Country of originDE (Germany)

Dimensions

Length [ l ]12 mm
Pitch2.5 mm
Dimension a5 mm
Width [ w ]9 mm
Height13.1 mm
Height [ h ]16.7 mm
Solder pin [P]3.6 mm
Pin spacing2.5 mm
Hole diameter1 mm

General

Range of articlesPTSA 0,5
Rated surge voltage (III/3)2.5 kV
Rated surge voltage (III/2)2.5 kV
Rated surge voltage (II/2)2.5 kV
Rated voltage (III/3)63 V
Rated voltage (III/2)250 V
Rated voltage (II/2)250 V
Connection in acc. with standardEN-VDE
Nominal current IN2 A
Nominal cross section0.5 mm²
Maximum load current2 A
Insulating materialPA
Solder pin surface
Stripping length9 mm
Number of positions3

Connection data

Conductor cross section solid min.0.14 mm²
Conductor cross section solid max.0.5 mm²
Conductor cross section flexible min.0.2 mm²
Conductor cross section flexible max.0.5 mm²
Conductor cross section AWG min.24
Conductor cross section AWG max.20

Standards and Regulations

Connection in acc. with standardEN-VDE
CUL

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Classifications


ETIM for 1989751 Connectors (EC002643)
Feature Name Feature Value
Height (EF000040) 16.7 mm
Number of electrical connections (EF008252) 3
Number of levels (EF002659) 1
Modular spacing connections (EF006827) 2.5 mm
Rated current In (EF008250) 2 A
Rated voltage (EF000228) 250 V
Rated surge voltage (EF002993) 2.5 kV
Over voltage category (EF006785) III
Pollution degree (EF006786) 2
Connection type conductor (EF006821) Spring clamp connection
Connectable conductor cross section solid-core (EF007337) 0.14 mm²
Connectable conductor cross section fine-strand without cable end sleeve (EF007341) 0.2 mm²
Connectable conductor cross section multi-wired (EF007343) 0.5 mm²
Connection type PCB (EF006822) Soldering connection
Material connection surface (EF006826) Tin
Diameter connection pin (EF006823) 1 mm
Length pin (EF006825) 3.6 mm
Material insulation body (EF007543) Other
Housing colour (EF000136) Green
Inflammability class of insulation material according to UL94 (EF002521) V0
Operating temperature (EF002393) -40 °C
Type of PCB fastening (EF008226) Connecting contact
Type of fastening (EF002442) Solder
Type of banding (EF007011) Carton (for SMD)
