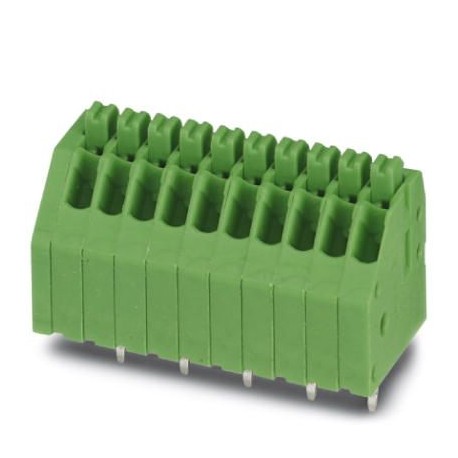

PTSA 0,5/14-2,5-Z 1990122 PHOENIX CONTACT PCB terminal block

PTSA 0,5/14-2,5-Z

1990122

PHOENIX CONTACT

50 Pcs.

PCB terminal block Terminal block for printed circuit board, nominal current: 2 A, nominal voltage (III/2): 250 V, nominal cross-section: 0.5 mm², number of potentials: 14, number of rows: 1, number of poles per row: 14, article family: PTSA 0.5, pitch: 2.5 mm, connection type: Push-in spring connection, mounting: Wave soldering, conductor connection direction/printed circuit board: 45 °, color: green, Pin arrangement: Zigzag Pins W, Pin length [P]: 3.6 mm, number of solder pins per potential: 1, packaging type: boxed. Offset welding pins, two rows

Connectors > Printed circuit board terminal
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1990122
Packing unit50 pc
Minimum order quantity50 pc
Catalog pagePage 411 (C-1-2013)
GTIN4017918973698
Weight per Piece (excluding packing)4.900 g
Custom tariff number85369010
Country of originPL (Poland)

Dimensions

Length [ l ]12 mm
Pitch2.5 mm
Dimension a32.5 mm
Width [ w ]36.5 mm
Height13.1 mm
Height [ h ]16.7 mm
Solder pin [P]3.6 mm
Pin spacing2.5 mm
Hole diameter1 mm

General

Range of articlesPTSA 0,5
Insulating material groupI
Rated surge voltage (III/3)2.5 kV
Rated surge voltage (III/2)2.5 kV
Rated surge voltage (II/2)2.5 kV
Rated voltage (III/3)160 V
Rated voltage (III/2)250 V
Rated voltage (II/2)400 V
Connection in acc. with standardEN-VDE
Nominal current IN2 A
Nominal cross section0.5 mm²
Maximum load current2 A
Insulating materialPA
Solder pin surface
Flammability rating according to UL 94V0
Stripping length9 mm
Number of positions14

Connection data

Conductor cross section solid min.0.14 mm²
Conductor cross section solid max.0.5 mm²
Conductor cross section flexible min.0.2 mm²
Conductor cross section flexible max.0.5 mm²
Conductor cross section AWG min.24
Conductor cross section AWG max.20

Standards and Regulations

Connection in acc. with standardEN-VDE
CUL
Flammability rating according to UL 94V0

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Classifications


Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
