PHOENIX CONTACT PTS 1,5/ 4-5,0-H PTS 1,5/ 4-5,0-H 1792889 PHOENIX CONTACT PCB terminal block View larger
Images are for illustrative purposes only. Please refer to data sheet for details

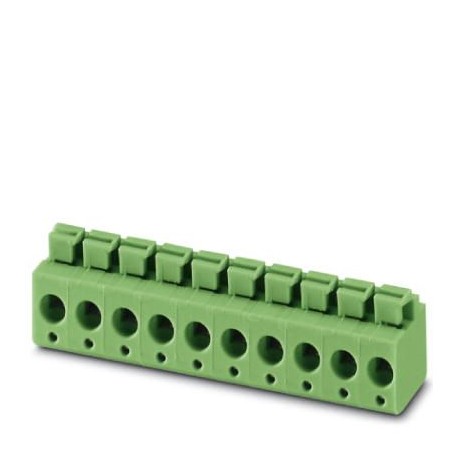

PTS 1,5/ 4-5,0-H 1792889 PHOENIX CONTACT PCB terminal block

PTS 1,5/ 4-5,0-H

1792889

PHOENIX CONTACT

250 Pcs.

PCB terminal block Terminal block for printed circuit board, nominal current: 16 A, nominal voltage (III/2): 400 V, nominal section: 1.5 mm², number of potentials: 4, number of rows: 1, number of poles per row: 4, family of articles: PTS 1.5/.. -H, pitch: 5mm, connection type: Push-in spring connection, mounting: Wave soldering, conductor/printed circuit board connection direction: 0°, color: green, Pin arrangement: Linear pin arrangement, Pin length [P]: 2.5mm, number of solder pins per potential: 1, packaging type: boxed

Connectors > Printed circuit board terminal
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1792889
Packing unit250 pc
Minimum order quantity250 pc
Catalog pagePage 415 (C-1-2013)
GTIN4046356615365
Weight per Piece (excluding packing)3.260 g
Custom tariff number85369010
Country of originSK (Slovakia)

Dimensions

Length [ l ]10.5 mm
Pitch5 mm
Dimension a15 mm
Width [ w ]20 mm
Height13.6 mm
Height [ h ]16.1 mm
Solder pin [P]2.5 mm
Hole diameter1.2 mm

General

Range of articlesPTS 1,5/..-H
Insulating material groupI
Rated surge voltage (III/3)4 kV
Rated surge voltage (III/2)4 kV
Rated surge voltage (II/2)4 kV
Rated voltage (III/3)250 V
Rated voltage (III/2)400 V
Rated voltage (II/2)630 V
Nominal current IN16 A
Nominal cross section1.5 mm²
Maximum load current16 A
Insulating materialPA
Solder pin surface
Flammability rating according to UL 94V0
Stripping length8 mm
Number of positions4

Connection data

Conductor cross section solid min.0.14 mm²
Conductor cross section solid max.2.5 mm²
Conductor cross section flexible min.0.14 mm²
Conductor cross section flexible max.2.5 mm²
Conductor cross section flexible, with ferrule without plastic sleeve min.0.25 mm²
Conductor cross section flexible, with ferrule without plastic sleeve max.1.5 mm²
Conductor cross section flexible, with ferrule with plastic sleeve min.0.25 mm²
Conductor cross section flexible, with ferrule with plastic sleeve max.1.5 mm²
Conductor cross section AWG min.26
Conductor cross section AWG max.14

Standards and Regulations

Connection in acc. with standardCUL
Flammability rating according to UL 94V0

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Classifications


Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
