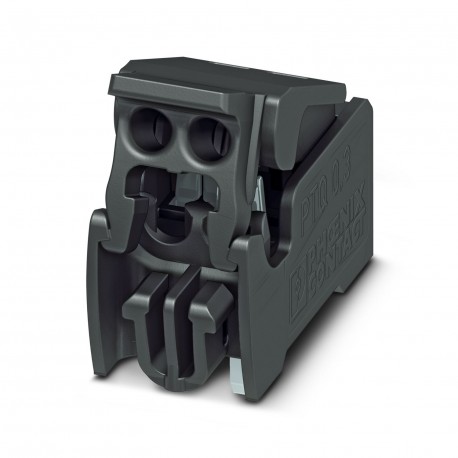

PTQ 0,3/ 2-2,5 THR R32 1702610 PHOENIX CONTACT PCB terminal block
PTQ 0,3/ 2-2,5 THR R32
1702610
PHOENIX CONTACT
250 Pcs.
PCB terminal block
Terminal block for printed circuit board, nominal current: 4 A, nominal voltage (III/2): 160 V, nominal section: 0.34 mm², number of potentials: 2, number of rows: 1, number of poles per row: 2, family of articles: PTQ 0.3/.. -THR, pitch: 2.5 mm, connection type: Offset connection, mounting: Weld THR, conductor connection direction/printed circuit board: 0 °, color: black, Pin arrangement: Zigzag Pins W, Pin length [P]: 2 mm, number of solder pins per potential: 1, packaging type: 32 mm wide strap. Suitable for CAT 5
Connectors > Printed circuit board terminal
PCB Connectors (PCC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1702610 |
|---|---|
| Packing unit | 250 pc |
| Minimum order quantity | 250 pc |
| Catalog page | Page 63 (C-1-2013) |
| GTIN | 4046356599498 |
| Weight per Piece (excluding packing) | 2.560 g |
| Custom tariff number | 85369010 |
| Country of origin | PL (Poland) |
Dimensions
| Length [ l ] | 17.55 mm |
|---|---|
| Pitch | 2.5 mm |
| Dimension a | 2.5 mm |
| Width [ w ] | 7 mm |
| Height | 8 mm |
| Height [ h ] | 8 mm |
| Solder pin [P] | 2 mm |
| Pin spacing | 2.5 mm |
| Hole diameter | 1.1 mm |
General
| Range of articles | PTQ 0,3/..-THR |
|---|---|
| Insulating material group | IIIa |
| Rated surge voltage (III/3) | 2.5 kV |
| Rated surge voltage (III/2) | 2.5 kV |
| Rated surge voltage (II/2) | 2.5 kV |
| Rated voltage (III/3) | 160 V |
| Rated voltage (III/2) | 160 V |
| Rated voltage (II/2) | 200 V |
| Nominal current IN | 4 A |
| Nominal cross section | 0.34 mm² |
| Maximum load current | 4 A |
| Insulating material | LCP |
| Solder pin surface | |
| Flammability rating according to UL 94 | V0 |
| Number of positions | 2 |
Connection data
| Conductor cross section solid min. | 0.14 mm² |
|---|---|
| Conductor cross section solid max. | 0.34 mm² |
| Conductor cross section flexible min. | 0.14 mm² |
| Conductor cross section flexible max. | 0.34 mm² |
| Conductor cross section AWG min. | 26 |
| Conductor cross section AWG max. | 22 |
| Wire diameter incl. insulation | 1.6 mm (Terminal block is tested with PVC insulation - other insulation materials available on request) |
Standards and Regulations
| Connection in acc. with standard | CUL |
|---|---|
| Flammability rating according to UL 94 | V0 |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
eCl@ss 4.0272607xxeCl@ss 4.127141109eCl@ss 5.027141190eCl@ss 5.127261100eCl@ss 6.027261100eCl@ss 7.027440401eCl@ss 8.027440401eCl@ss 9.027440401
| Feature Name | Feature Value |
|---|---|
| Height (EF000040) | 10 mm |
| Number of electrical connections (EF008252) | 2 |
| Number of levels (EF002659) | 1 |
| Modular spacing connections (EF006827) | 2.5 mm |
| Rated current In (EF008250) | 4 A |
| Rated voltage (EF000228) | 160 V |
| Rated surge voltage (EF002993) | 2.5 kV |
| Over voltage category (EF006785) | III |
| Pollution degree (EF006786) | 2 |
| Connectable conductor cross section solid-core (EF007337) | 0.14 mm² |
| Connectable conductor cross section fine-strand without cable end sleeve (EF007341) | 0.14 mm² |
| Connectable conductor cross section multi-wired (EF007343) | 0.34 mm² |
| Connection type PCB (EF006822) | Soldering connection |
| Material connection surface (EF006826) | Tin |
| Diameter connection pin (EF006823) | 1.1 mm |
| Length pin (EF006825) | 2 mm |
| Material insulation body (EF007543) | Other |
| Housing colour (EF000136) | Black |
| Inflammability class of insulation material according to UL94 (EF002521) | V0 |
| Operating temperature (EF002393) | -40 °C |
| Type of PCB fastening (EF008226) | Connecting contact |
| Type of fastening (EF002442) | Solder |
| Type of banding (EF007011) | Blister girdle (for SMD) |
