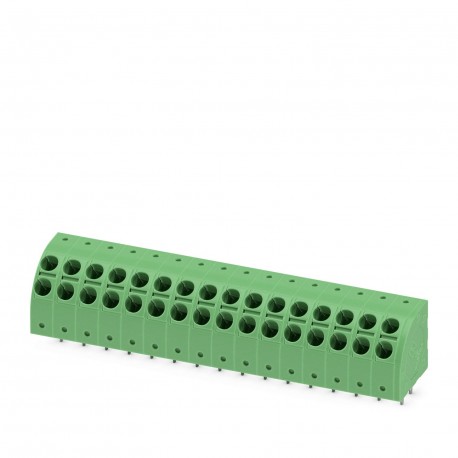

PHOENIX CONTACT PTDA 2,5/16-5,0 PTDA 2,5/16-5,0 1725484 PHOENIX CONTACT PCB terminal block View larger
Images are for illustrative purposes only. Please refer to data sheet for details

PTDA 2,5/16-5,0 1725484 PHOENIX CONTACT PCB terminal block

PTDA 2,5/16-5,0

1725484

PHOENIX CONTACT

50 Pcs.

PCB terminal block Terminal block for printed circuit board, nominal current: 24 A, nominal voltage (III/2): 400 V, nominal cross-section: 2.5 mm², number of potentials: 16, number of rows: 1, number of poles per row: 16, article family: PTDA 2.5/, pitch: 5 mm, connection type: Push-in spring connection, mounting: Wave soldering, driver/printed circuit board connection direction: 45 °, color: green, Pin arrangement: Linear pin arrangement, Pin length [P]: 3.5 mm, number of solder pins per potential: 2, packaging type: boxed Printed circuit board terminal, nominal current: 24 A, rated voltage (III/2): 400 V, nominal cross section: 2.5 mm2, number of potentials: 16, number of rows: 1, number of positions per row: 16, product range: PTDA 2,5/, pitch: 5 mm, connection method: Push-in spring connection, mounting: Wave soldering, conductor/PCB connection direction: 45 °, color: green, Pin layout: Linear pinning, Solder pin [P]: 3.5 mm, number of solder pins per potential: 2, type of packaging: packed in cardboard

Connectors > Printed circuit board terminal
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical data
Product properties
Product typePrinted circuit board terminal
Product familyPTDA 2,5/
Product lineCOMBICON Terminals M
Number of positions16
Pitch5 mm
Number of connections32
Number of rows1
Number of potentials16
Mounting flangeno
Pin layoutLinear pinning
Solder pins per potential2
Data management status
Article revision02
Electrical properties
Nominal current IN24 A
Nominal voltage UN400 V
Rated voltage (III/3)320 V
Rated surge voltage (III/3)4 kV
Rated voltage (III/2)400 V
Rated surge voltage (III/2)4 kV
Rated voltage (II/2)630 V
Rated surge voltage (II/2)4 kV
Connection data
Connection technology
Nominal cross section2.5 mm²
Conductor connection
Connection methodPush-in spring connection
Conductor cross section rigid0.2 mm² ... 2.5 mm²
Conductor cross section flexible0.2 mm² ... 2.5 mm²
Conductor cross section AWG24 ... 12
Conductor cross section flexible, with ferrule without plastic sleeve0.25 mm² ... 2.5 mm²
Conductor cross section, flexible, with ferrule, with plastic sleeve0.25 mm² ... 1 mm²
2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve0.5 mm² ... 1 mm²
Stripping length10 mm
Mounting
Mounting typeWave soldering
Pin layoutLinear pinning
Material specifications
Material data - contact
NoteWEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201
Contact materialCu alloy
Surface characteristicshot-dip tin-plated
Metal surface terminal point (top layer)Tin (4 - 8 µm Sn)
Metal surface soldering area (top layer)Tin (4 - 8 µm Sn)
Material data - housing
Color (Housing)green (6021)
Insulating materialPA
Insulating material groupI
CTI according to IEC 60112600
Flammability rating according to UL 94V0
Glow wire flammability index GWFI according to EN 60695-2-12850
Glow wire ignition temperature GWIT according to EN 60695-2-13775
Temperature for the ball pressure test according to EN 60695-10-2125 °C
Notes
Note on applicationMaximum permissible outside diameter of the wire insulation ≤3.5 mm
Dimensions
Dimensional drawingzswbwfibns.jpg
Pitch5 mm
Width [w]80 mm
Height [h]19.5 mm
Length [l]16 mm
Installed height16 mm
Solder pin length [P]3.5 mm
Pin dimensions1 x 0.4 mm
PCB design
Pin spacing5 mm
Hole diameter1.3 mm
Mechanical tests
Test for conductor damage and slackening
SpecificationIEC 60999-1:1999-11
ResultTest passed
Pull-out test
SpecificationIEC 60999-1:1999-11
Conductor cross section/conductor type/tractive force setpoint/actual value0.2 mm² / solid / > 10 N
0.2 mm² / flexible / > 10 N
2.5 mm² / solid / > 50 N
2.5 mm² / flexible / > 50 N
Electrical tests
Temperature-rise test
SpecificationIEC 60947-7-4:2019-01
Requirement temperature-rise testThe sum of ambient temperature and temperature rise of the PCB terminal block shall not exceed the upper limiting temperature.
Short-time withstand current
SpecificationIEC 60947-7-4:2019-01
Insulation resistance
SpecificationIEC 60512-3-1:2002-02
Insulation resistance, neighboring positions> 5 MΩ
Air clearances and creepage distances
SpecificationIEC 60947-1:2007-06 + A1:2010-12 + A2:2014-09
Insulating material groupI
Comparative tracking index (IEC 60112)CTI 600
Rated insulation voltage (III/3)320 V
Rated surge voltage (III/3)4 kV
minimum clearance value - non-homogenous field (III/3)3 mm
minimum creepage distance (III/3)4 mm
Rated insulation voltage (III/2)400 V
Rated surge voltage (III/2)4 kV
minimum clearance value - non-homogenous field (III/2)3 mm
minimum creepage distance (III/2)2 mm
Rated insulation voltage (II/2)630 V
Rated surge voltage (II/2)4 kV
minimum clearance value - non-homogenous field (II/2)3 mm
minimum creepage distance (II/2)3.2 mm
Environmental and real-life conditions
Vibration test
SpecificationIEC 60068-2-6:2007-12
Frequency10 - 150 - 10 Hz
Sweep speed1 octave/min
Amplitude0.35 mm (10 Hz ... 60.1 Hz)
Acceleration5g (60.1 Hz ... 150 Hz)
Test duration per axis2.5 h
Test directionsX-, Y- and Z-axis
Glow-wire test
SpecificationIEC 60695-2-10:2013-04
Temperature850 °C
Time of exposure5 s
Aging
SpecificationIEC 60947-7-4:2019-01
Ambient conditions
Ambient temperature (operation)-40 °C ... 105 °C (dependent on the derating curve)
Ambient temperature (storage/transport)-40 °C ... 70 °C
Relative humidity (storage/transport)30 % ... 70 %
Ambient temperature (assembly)-5 °C ... 100 °C
Packaging specifications
Type of packagingpacked in cardboard

ETIM for 1725484 Connectors (EC002643)
Feature Name Feature Value
Height (EF000040) 19.5 mm
Number of electrical connections (EF008252) 32
Number of levels (EF002659) 1
Modular spacing connections (EF006827) 5 mm
Rated current In (EF008250) 24 A
Rated voltage (EF000228) 400 V
Rated surge voltage (EF002993) 4 kV
Over voltage category (EF006785) III
Pollution degree (EF006786) 2
Connection type conductor (EF006821) Spring clamp connection
Connectable conductor cross section solid-core (EF007337) 0.2 mm²
Connectable conductor cross section fine-strand with cable end sleeve (EF007339) 0.25 mm²
Connectable conductor cross section fine-strand without cable end sleeve (EF007341) 0.2 mm²
Connectable conductor cross section multi-wired (EF007343) 2.5 mm²
Connection type PCB (EF006822) Soldering connection
Material connection surface (EF006826) Tin
Diameter connection pin (EF006823) 1.3 mm
Length pin (EF006825) 3.5 mm
Material insulation body (EF007543) Other
Housing colour (EF000136) Green
Inflammability class of insulation material according to UL94 (EF002521) V0
Operating temperature (EF002393) -40 °C
Type of PCB fastening (EF008226) Connecting contact
Type of fastening (EF002442) Solder
Type of banding (EF007011) Carton (for SMD)
