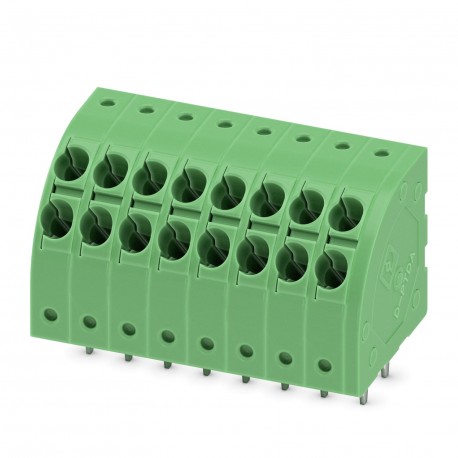

PHOENIX CONTACT PTDA 1,5/ 8-3,5 PTDA 1,5/ 8-3,5 1724996 PHOENIX CONTACT PCB terminal block View larger
Images are for illustrative purposes only. Please refer to data sheet for details

PTDA 1,5/ 8-3,5 1724996 PHOENIX CONTACT PCB terminal block

PTDA 1,5/ 8-3,5

1724996

PHOENIX CONTACT

50 Pcs.

PCB terminal block Printed circuit board terminal block, rated current: 17.5 A, rated voltage (III/2): 240 V, rated cross-section: 1.5 mm², number of potentials: 8, number of rows: 1, number of poles per row: 8, article family: PTDA 1.5/, pitch: 3.5 mm, connection type: Push-in spring connection, mounting: Wave soldering, conductor/printed circuit board connection direction: 45 °, color: green, Pin arrangement: Linear pin arrangement, Pin length [P]: 3.5 mm, number of solder pins per potential: 2, packaging type: boxed Printed circuit board terminal, nominal current: 17.5 A, rated voltage (III/2): 240 V, nominal cross section: 1.5 mm2, number of potentials: 8, number of rows: 1, number of positions per row: 8, product range: PTDA 1,5/, pitch: 3.5 mm, connection method: Push-in spring connection, mounting: Wave soldering, conductor/PCB connection direction: 45 °, color: green, Pin layout: Linear pinning, Solder pin [P]: 3.5 mm, number of solder pins per potential: 2, type of packaging: packed in cardboard

Connectors > Printed circuit board terminal
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical data
Product properties
Product typePrinted circuit board terminal
Product familyPTDA 1,5/
Product lineCOMBICON Terminals S
Number of positions8
Pitch3.5 mm
Number of connections16
Number of rows1
Number of potentials8
Pin layoutLinear pinning
Solder pins per potential2
Data management status
Article revision03
Electrical properties
Nominal current IN17.5 A
Nominal voltage UN240 V
Rated voltage (III/3)200 V
Rated surge voltage (III/3)2.5 kV
Rated voltage (III/2)240 V
Rated surge voltage (III/2)2.5 kV
Rated voltage (II/2)400 V
Rated surge voltage (II/2)2.5 kV
Connection data
Connection technology
Nominal cross section1.5 mm²
Conductor connection
Connection methodPush-in spring connection
Conductor cross section rigid0.2 mm² ... 1.5 mm²
Conductor cross section flexible0.2 mm² ... 1.5 mm²
Conductor cross section AWG24 ... 16
Conductor cross section flexible, with ferrule without plastic sleeve0.5 mm² ... 1.5 mm²
Conductor cross section, flexible, with ferrule, with plastic sleeve0.5 mm² ... 0.5 mm²
2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve0.5 mm² ... 0.5 mm²
Stripping length10 mm
Mounting
Mounting typeWave soldering
Pin layoutLinear pinning
Material specifications
Material data - contact
NoteWEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201
Contact materialCu alloy
Surface characteristicsTin-plated
Metal surface terminal point (top layer)Tin (4 - 8 µm Sn)
Metal surface soldering area (top layer)Tin (4 - 8 µm Sn)
Material data - housing
Color (Housing)green (6021)
Insulating materialPA
Insulating material groupI
CTI according to IEC 60112600
Flammability rating according to UL 94V0
Glow wire flammability index GWFI according to EN 60695-2-12850
Glow wire ignition temperature GWIT according to EN 60695-2-13775
Temperature for the ball pressure test according to EN 60695-10-2125 °C
Dimensions
Dimensional drawingzswbwfibns.jpg
Pitch3.5 mm
Width [w]29.4 mm
Height [h]19.5 mm
Length [l]16 mm
Installed height16 mm
Solder pin length [P]3.5 mm
Pin dimensions1 x 0.4 mm
PCB design
Pin spacing3.5 mm
Hole diameter1.3 mm
Mechanical tests
Connection test
SpecificationIEC 60998-2-2:2002-12
ResultTest passed
Test for conductor damage and slackening
SpecificationIEC 60998-2-2:2002-12
ResultTest passed
Pull-out test
SpecificationIEC 60998-2-2:2002-12
Conductor cross section/conductor type/tractive force setpoint/actual value0.2 mm² / solid / > 10 N
0.2 mm² / flexible / > 10 N
1.5 mm² / solid / > 40 N
1.5 mm² / flexible / > 40 N
Flexion test
SpecificationIEC 60998-2-2:2002-12
ResultTest passed
Electrical tests
Temperature-rise test
SpecificationIEC 60947-7-4:2019-01
Requirement temperature-rise testThe sum of ambient temperature and temperature rise of the PCB terminal block shall not exceed the upper limiting temperature.
Insulation resistance
SpecificationIEC 60998-1:2002-12
Insulation resistance, neighboring positions> 5 MΩ
Air clearances and creepage distances
SpecificationIEC 60664-1:2007-04
Insulating material groupI
Comparative tracking index (IEC 60112)CTI 600
Rated insulation voltage (III/3)200 V
Rated surge voltage (III/3)2.5 kV
minimum clearance value - non-homogenous field (III/3)1.5 mm
minimum creepage distance (III/3)2.5 mm
Rated insulation voltage (III/2)240 V
Rated surge voltage (III/2)2.5 kV
minimum clearance value - non-homogenous field (III/2)1.5 mm
minimum creepage distance (III/2)1.25 mm
Rated insulation voltage (II/2)400 V
Rated surge voltage (II/2)2.5 kV
minimum clearance value - non-homogenous field (II/2)1.5 mm
minimum creepage distance (II/2)2 mm
Environmental and real-life conditions
Vibration test
SpecificationIEC 60068-2-6:1995-03
Frequency10 - 150 - 10 Hz
Sweep speed1 octave/min
Amplitude0.35 mm (10 Hz ... 60.1 Hz)
Acceleration5g (60.1 Hz ... 150 Hz)
Test duration per axis2.5 h
Test directionsX-, Y- and Z-axis
Glow-wire test
SpecificationIEC 60998-1:2002-12
Temperature850 °C
Time of exposure5 s
Ambient conditions
Ambient temperature (operation)-40 °C ... 105 °C (dependent on the derating curve)
Ambient temperature (storage/transport)-40 °C ... 70 °C
Relative humidity (storage/transport)30 % ... 70 %
Ambient temperature (assembly)-5 °C ... 100 °C
Packaging specifications
Type of packagingpacked in cardboard
