> PHOENIX CONTACT > PCB Connectors (PCC) > 1935802

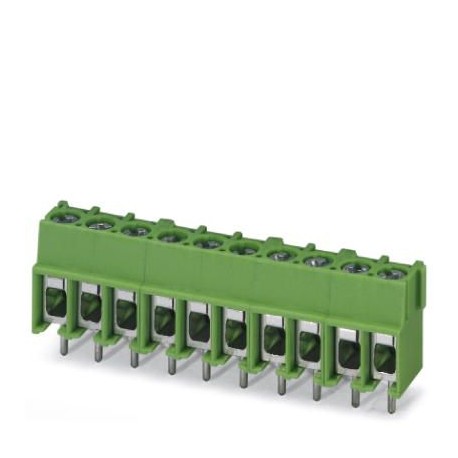

PHOENIX CONTACT PT 2,5/ 5-5,0-H PT 2,5/ 5-5,0-H 1935802 PHOENIX CONTACT Screw compact terminal block View larger
Images are for illustrative purposes only. Please refer to data sheet for details

PT 2,5/ 5-5,0-H 1935802 PHOENIX CONTACT Screw compact terminal block

PT 2,5/ 5-5,0-H

1935802

PHOENIX CONTACT

100 Pcs.

Screw compact terminal block Terminal block for printed circuit board, nominal current: 32 A, nominal voltage (III/2): 400 V, nominal section: 2.5 mm², number of potentials: 5, number of rows: 1, number of poles per row: 5, family of articles: PT 2.5/.. -H, pitch: 5 mm, connection type: Screw connection with wire protection bracket, screw clamping form: H1L Philipps-Recess with longitudinal slot, mounting: Wave soldering, conductor/printed circuit board connection direction: 0 °, color: green, Pin arrangement: Linear pin arrangement, Pin length [P]: 4.1 mm, number of solder pins per potential: 1, Packing type: Boxed packed. In case of using ferrules, 250 V is only reached in combination with the surge category / the dirt grade II/2.

Connectors > Printed circuit board terminal
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1935802
Packing unit100 pc
Minimum order quantity100 pc
Catalog pagePage 427 (C-1-2013)
GTIN4017918948429
Weight per Piece (excluding packing)6.070 g
Custom tariff number85369010
Country of originPL (Poland)

Dimensions

Length [ l ]9 mm
Pitch5 mm
Dimension a20 mm
Width [ w ]25 mm
Height13.5 mm
Height [ h ]17.6 mm
Solder pin [P]4.1 mm
Pin spacing5 mm
Hole diameter1.3 mm

General

Range of articlesPT 2,5/..-H
Insulating material groupI
Rated surge voltage (III/3)4 kV
Rated surge voltage (III/2)4 kV
Rated surge voltage (II/2)4 kV
Rated voltage (III/3)250 V
Rated voltage (III/2)400 V
Rated voltage (II/2)630 V
Connection in acc. with standardEN-VDE
Nominal current IN32 A
Nominal cross section2.5 mm²
Maximum load current32 A (current values dependent on no. of pos., dimensioning of printed circuits, and ambient temperature)
Insulating materialPA
Solder pin surface
Flammability rating according to UL 94V0
Internal cylindrical gageA3 / B3
Stripping length6.5 mm
Number of positions5
Screw threadM3
Tightening torque, min0.45 Nm
Tightening torque max0.5 Nm

Connection data

Conductor cross section solid min.0.5 mm²
Conductor cross section solid max.4 mm²
Conductor cross section flexible min.0.5 mm²
Conductor cross section flexible max.4 mm²
Conductor cross section flexible, with ferrule without plastic sleeve min.0.5 mm²
Conductor cross section flexible, with ferrule without plastic sleeve max.2.5 mm²
Conductor cross section flexible, with ferrule with plastic sleeve min.0.5 mm²
Conductor cross section flexible, with ferrule with plastic sleeve max.2.5 mm²
Conductor cross section AWG min.20
Conductor cross section AWG max.10
2 conductors with same cross section, solid min.0.5 mm²
2 conductors with same cross section, solid max.1.5 mm²
2 conductors with same cross section, stranded min.0.5 mm²
2 conductors with same cross section, stranded max.1.5 mm²
2 conductors with same cross section, stranded, ferrules without plastic sleeve, min.0.5 mm²
2 conductors with same cross section, stranded, ferrules without plastic sleeve, max.0.75 mm² The technical data regarding clamping with ferrules applies only when using crimping pliers ZA 3. When using ferrules, it is necessary to take into account possible restrictions regarding nominal voltage.
2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, min.0.5 mm²
2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, max.1.5 mm² The technical data regarding clamping with ferrules applies only when using crimping pliers ZA 3. When using ferrules, it is necessary to take into account possible restrictions regarding nominal voltage.

Standards and Regulations

Connection in acc. with standardEN-VDE
CUL
Flammability rating according to UL 94V0

Environmental Product Compliance

China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


ETIM for 1935802 Connectors (EC002643)
Feature Name Feature Value
Height (EF000040) 17.6 mm
Number of electrical connections (EF008252) 5
Number of levels (EF002659) 1
Modular spacing connections (EF006827) 5 mm
Rated current In (EF008250) 32 A
Rated voltage (EF000228) 400 V
Rated surge voltage (EF002993) 4 kV
Over voltage category (EF006785) III
Pollution degree (EF006786) 2
Connection type conductor (EF006821) Screw connection
Connectable conductor cross section solid-core (EF007337) 0.5 mm²
Connectable conductor cross section fine-strand with cable end sleeve (EF007339) 0.5 mm²
Connectable conductor cross section fine-strand without cable end sleeve (EF007341) 0.5 mm²
Connectable conductor cross section multi-wired (EF007343) 0.5 mm²
Connection type PCB (EF006822) Soldering connection
Material connection surface (EF006826) Tin
Diameter connection pin (EF006823) 1.3 mm
Length pin (EF006825) 4.1 mm
Material insulation body (EF007543) Other
Housing colour (EF000136) Green
Inflammability class of insulation material according to UL94 (EF002521) V0
Operating temperature (EF002393) -40 °C
Type of PCB fastening (EF008226) Connecting contact
Type of fastening (EF002442) Solder
Type of banding (EF007011) Carton (for SMD)
