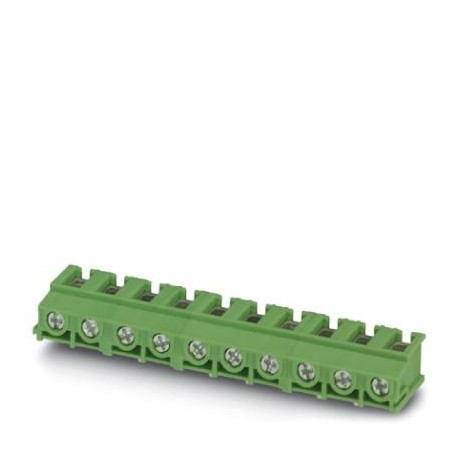

PHOENIX CONTACT PT 2,5/ 2-7,5-V PT 2,5/ 2-7,5-V 1987957 PHOENIX CONTACT Screw compact terminal block View larger
Images are for illustrative purposes only. Please refer to data sheet for details

PT 2,5/ 2-7,5-V 1987957 PHOENIX CONTACT Screw compact terminal block

PT 2,5/ 2-7,5-V

1987957

PHOENIX CONTACT

250 Pcs.

Screw compact terminal block Terminal block for printed circuit board, nominal current: 32 A, nominal voltage (III/2): 800 V, nominal section: 2.5 mm², number of potentials: 2, number of rows: 1, number of poles per row: 2, family of articles: PT 2.5/.. -V, pitch: 7.5 mm, connection type: Screw connection with wire protection bracket, mounting: Wave soldering, conductor/printed circuit board connection direction: 90 °, color: green, Pin arrangement: Linear pin arrangement, Pin length [P]: 4.1 mm, number of solder pins per potential: 1, packaging type: boxed

Connectors > Printed circuit board terminal
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1987957
Packing unit250 pc
Catalog pagePage 429 (C-1-2013)
GTIN4046356036481
Weight per Piece (excluding packing)2.720 g
Custom tariff number85369010
Country of originPL (Poland)

Item properties

Brief article descriptionPCB terminal block
Range of articlesPT 2,5/..-V
Pitch7.5 mm
Number of positions2
Connection methodScrew connection with wire protector
Drive form screw headPhilipps recess with slotted Torx
Screw threadM3
Mounting typeWave soldering
Pin layoutLinear pinning
Number of levels1
Number of connections2
Number of potentials2

Electrical parameters

Rated current32 A
Rated insulation voltage (III/2)800 V
Rated surge voltage (III/2)6 kV

Connection capacity

Conductor cross section solid0.5 mm² ... 4 mm²
Conductor cross section flexible0.5 mm² ... 4 mm²
Conductor cross section AWG / kcmil20 ... 10
Conductor cross section flexible, with ferrule without plastic sleeve0.5 mm² ... 2.5 mm²
Conductor cross section, flexible, with ferrule, with plastic sleeve0.5 mm² ... 2.5 mm²
2 conductors with same cross section, solid0.5 mm² ... 1.5 mm²
2 conductors with same cross section, flexible0.5 mm² ... 1.5 mm²
2 conductors with same cross section, stranded, ferrules without plastic sleeve0.5 mm² ... 0.75 mm²
2 conductors with same cross section, stranded, with TWIN ferrules with plastic sleeve0.5 mm² ... 1.5 mm²
Stripping length6.5 mm
Torque0.45 Nm ... 0.5 Nm

Material data - contact

NoteWEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201
Contact materialCu alloy
Surface characteristicsTin-plated
Metal surface terminal point (top layer)Tin (3 - 12 µm Sn)
Metal surface terminal point (middle layer)Nickel (1.5 - 4 µm Ni)
Metal surface soldering area (top layer)Tin (3 - 12 µm Sn)
Metal surface soldering area (middle layer)Nickel (1.5 - 4 µm Ni)

Material data - housing

Insulating materialPA
Insulating material groupI
CTI according to IEC 60112600
Flammability rating according to UL 94V0
Glow wire flammability index GWFI according to EN 60695-2-12850
Glow wire ignition temperature GWIT according to EN 60695-2-13775
Temperature for the ball pressure test according to EN 60695-10-2125 °C

Dimensions for the product

Dimensional drawing
Length [ l ]13.5 mm
Width [ w ]15 mm
Height [ h ]13.1 mm
Pitch7.5 mm
Height (without solder pin)9 mm
Solder pin [P]4.1 mm
Pin spacing7.5 mm
Pin dimensionsø 1 mm
Dimension a7.5 mm

Dimensions for PCB design

Hole diameter1.3 mm
Pin spacing7.5 mm

Packaging information

Type of packagingpacked in cardboard
Pieces per package250
Denomination packing unitsPcs.

Ambient conditions

Ambient temperature (storage/transport)-40 °C ... 70 °C
Ambient temperature (assembly)-5 °C ... 100 °C
Ambient temperature (operation)-40 °C (Depending on the current carrying capacity/derating curve)

Electrical tests

Rated current32 A
Rated insulation voltage (III/2)800 V
Rated surge voltage (III/2)6 kV

Air clearances and creepage distances

Insulating material groupI
Rated insulation voltage (III/3)500 V
Rated insulation voltage (III/2)800 V
Rated insulation voltage (II/2)1000 V
Rated surge voltage (III/3)6 kV
Rated surge voltage (III/2)6 kV
Rated surge voltage (II/2)6 kV

Standards and Regulations

Connection in acc. with standardEN-VDE
CUL
Flammability rating according to UL 94V0

Environmental Product Compliance

China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


ETIM for 1987957 Connectors (EC002643)
Feature Name Feature Value
Height (EF000040) 13.1 mm
Number of electrical connections (EF008252) 2
Number of levels (EF002659) 1
Modular spacing connections (EF006827) 7.5 mm
Rated current In (EF008250) 32 A
Rated voltage (EF000228) 800 V
Rated surge voltage (EF002993) 6 kV
Over voltage category (EF006785) III
Pollution degree (EF006786) 2
Connection type conductor (EF006821) Screw connection
Connectable conductor cross section solid-core (EF007337) 0.5 mm²
Connectable conductor cross section fine-strand with cable end sleeve (EF007339) 0.5 mm²
Connectable conductor cross section fine-strand without cable end sleeve (EF007341) 0.5 mm²
Connectable conductor cross section multi-wired (EF007343) 0.5 mm²
Connection type PCB (EF006822) Soldering connection
Material connection surface (EF006826) Tin
Diameter connection pin (EF006823) 1.3 mm
Length pin (EF006825) 4.1 mm
Material insulation body (EF007543) Other
Housing colour (EF000136) Green
Inflammability class of insulation material according to UL94 (EF002521) V0
Operating temperature (EF002393) -40 °C
Type of PCB fastening (EF008226) Connecting contact
Type of fastening (EF002442) Solder
Type of banding (EF007011) Carton (for SMD)
