PHOENIX CONTACT MKDSP 25/ 6-15,00 MKDSP 25/ 6-15,00 1932627 PHOENIX CONTACT PCB terminal block View larger
Images are for illustrative purposes only. Please refer to data sheet for details

MKDSP 25/ 6-15,00 1932627 PHOENIX CONTACT PCB terminal block

MKDSP 25/ 6-15,00

1932627

PHOENIX CONTACT

10 Pcs.

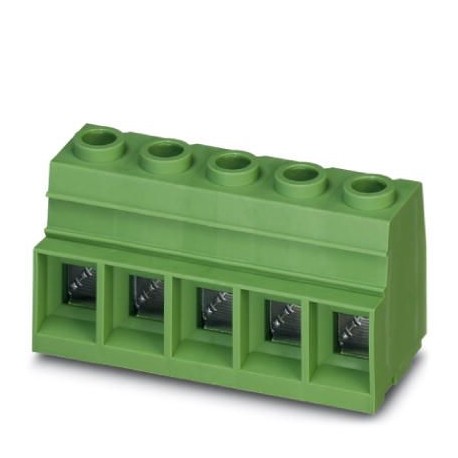

PCB terminal block Terminal block for printed circuit board, rated current: 125 A, rated voltage (III/2): 1000 V, rated cross-section: 35 mm², number of potentials: 6, number of rows: 1, number of poles per row: 6, article family: MKDSP 25, pitch: 15 mm, connection type: Screw connection with traction capsule, screw clamping method: Z2L Pozidriv with longitudinal slot, mounting: Wave soldering, conductor/printed circuit board connection direction: 0 °, color: green, Pin arrangement: Linear pin arrangement, Pin length [P]: 4.5 mm, number of soldering pins per potential: 4, packaging type: boxed packaging. Permanent mechanical loads on the terminal block must be avoided

Connectors > Printed circuit board terminal
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1932627
Packing unit25 pc
Minimum order quantity25 pc
Catalog pagePage 455 (C-1-2013)
GTIN4017918902124
Weight per Piece (excluding packing)131.000 g
Custom tariff number85369010
Country of originSK (Slovakia)

Dimensions

Length [ l ]31 mm
Pitch15 mm
Dimension a75 mm
Width [ w ]90 mm
Height39 mm
Height [ h ]43.5 mm
Solder pin [P]4.5 mm
Hole diameter1.6 mm

General

Range of articlesMKDSP 25
Insulating material groupI
Rated surge voltage (III/3)8 kV
Rated surge voltage (III/2)8 kV
Rated surge voltage (II/2)8 kV
Rated voltage (III/3)1000 V
Rated voltage (III/2)1000 V
Rated voltage (II/2)1000 V
Connection in acc. with standardEN-VDE
Nominal current IN125 A
Nominal cross section35 mm²
Maximum load current125 A
Insulating materialPA
Solder pin surface
Flammability rating according to UL 94V0
Internal cylindrical gageB7
Stripping length18 mm
Number of positions6
Screw threadM5
Tightening torque, min2.5 Nm
Tightening torque max4.5 Nm
NoteTightening torque ≤ 25 mm² is 2.5 Nm, > 25 mm² is 4.5 Nm

Connection data

Conductor cross section solid min.0.5 mm²
Conductor cross section solid max.35 mm²
Conductor cross section flexible min.0.5 mm²
Conductor cross section flexible max.35 mm²
Conductor cross section flexible, with ferrule without plastic sleeve min.1 mm²
Conductor cross section flexible, with ferrule without plastic sleeve max.35 mm²
Conductor cross section flexible, with ferrule with plastic sleeve min.1.5 mm²
Conductor cross section flexible, with ferrule with plastic sleeve max.35 mm²
Conductor cross section AWG min.20
Conductor cross section AWG max.2
2 conductors with same cross section, solid min.0.5 mm²
2 conductors with same cross section, solid max.6 mm²
2 conductors with same cross section, stranded min.0.5 mm²
2 conductors with same cross section, stranded max.6 mm²
2 conductors with same cross section, stranded, ferrules without plastic sleeve, min.0.5 mm²
2 conductors with same cross section, stranded, ferrules without plastic sleeve, max.4 mm²
2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, min.0.5 mm²
2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, max.16 mm²

Information on the aluminum conductor

Cross section-torque-form of cableCable cross section:35 mm²; Torque:4.5 Nm; Form of cable:round, single-strand, class 1(re)
Cable cross section:25 mm²; Torque:2.5 Nm; Form of cable:round, single-strand, class 1(re)
Cable cross section:16 mm²; Torque:2.5 Nm; Form of cable:round, single-strand, class 1(re)
SpecificationDIN VDE 0276-603 (VDE 0276-603):2010-03
Note on conductor pretreatmentThe following measures are required for durable and reliable contacting of the aluminum conductor: the stripped end of the aluminum conductor must be separated from the oxide layer using a blade, and immediately dipped in non-acid and non-alkali Vaseline. The pretreatment must be repeated when connecting the conductors anew.

Standards and Regulations

Connection in acc. with standardEN-VDE
CUL
Flammability rating according to UL 94V0

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Classifications


ETIM for 1932627 Connectors (EC002643)
Feature Name Feature Value
Height (EF000040) 43.5 mm
Number of electrical connections (EF008252) 6
Number of levels (EF002659) 1
Modular spacing connections (EF006827) 15 mm
Rated current In (EF008250) 125 A
Rated voltage (EF000228) 1000 V
Rated surge voltage (EF002993) 8 kV
Over voltage category (EF006785) III
Pollution degree (EF006786) 2
Connection type conductor (EF006821) Screw connection
Connectable conductor cross section solid-core (EF007337) 0.5 mm²
Connectable conductor cross section fine-strand with cable end sleeve (EF007339) 1.5 mm²
Connectable conductor cross section fine-strand without cable end sleeve (EF007341) 0.5 mm²
Connectable conductor cross section multi-wired (EF007343) 0.5 mm²
Connection type PCB (EF006822) Soldering connection
Material connection surface (EF006826) Tin
Diameter connection pin (EF006823) 1.6 mm
Length pin (EF006825) 4.5 mm
Material insulation body (EF007543) Other
Housing colour (EF000136) Green
Inflammability class of insulation material according to UL94 (EF002521) V0
Operating temperature (EF002393) -40 °C
Type of banding (EF007011) Carton (for SMD)

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
