View larger
Images are for illustrative purposes only. Please refer to data sheet for details

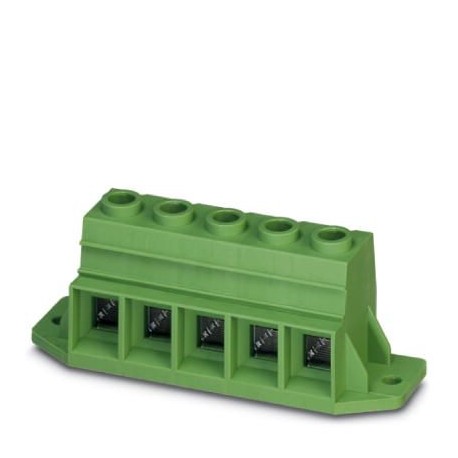

MKDSP 25/ 2-15,00-F 1932494 PHOENIX CONTACT PCB terminal block
MKDSP 25/ 2-15,00-F
1932494
PHOENIX CONTACT
25 Pcs.
PCB terminal block
Terminal block for printed circuit board, nominal current: 125 A, nominal voltage (III/2): 1000 V, nominal section: 35 mm², number of potentials: 2, number of rows: 1, number of poles per row: 2, family of articles: MKDSP 25/.. -F, pitch: 15 mm, connection type: Screw connection with traction capsule, screw clamping form: Z2L Pozidriv with longitudinal slot, mounting: Wave soldering, conductor/printed circuit board connection direction: 0 °, color: green, Pin arrangement: Linear pin arrangement, Pin length [P]: 4.5 mm, number of solder pins per potential: 4, Packing type: Packed in box. Permanent mechanical loads on the terminal block must be avoided
Connectors > Printed circuit board terminal
PCB Connectors (PCC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1932494 |
|---|---|
| Packing unit | 25 pc |
| Minimum order quantity | 25 pc |
| Catalog page | Page 455 (C-1-2013) |
| GTIN | 4017918902025 |
| Weight per Piece (excluding packing) | 45.760 g |
| Custom tariff number | 85369010 |
| Country of origin | SK (Slovakia) |
Item properties
| Brief article description | PCB terminal block |
|---|---|
| Range of articles | MKDSP 25/..-F |
| Pitch | 15 mm |
| Number of positions | 2 |
| Connection method | Screw connection with tension sleeve |
| Drive form screw head | Philipps recess with slotted Torx (H1L) |
| Screw thread | M5 |
| Mounting type | Wave soldering |
| Pin layout | Linear pinning |
| Locking | yes |
| Number of levels | 1 |
| Number of connections | 2 |
| Number of potentials | 2 |
Electrical parameters
| Rated current | 125 A |
|---|---|
| Rated insulation voltage (III/2) | 1000 V |
| Rated surge voltage (III/2) | 8 kV |
Connection capacity
| Conductor cross section solid | 0.5 mm² ... 35 mm² |
|---|---|
| Conductor cross section flexible | 0.5 mm² ... 35 mm² |
| Conductor cross section AWG / kcmil | 20 ... 2 |
| Conductor cross section flexible, with ferrule without plastic sleeve | 1 mm² ... 35 mm² |
| Conductor cross section, flexible, with ferrule, with plastic sleeve | 1.5 mm² ... 35 mm² |
| 2 conductors with same cross section, solid | 0.5 mm² ... 6 mm² |
| 2 conductors with same cross section, flexible | 0.5 mm² ... 6 mm² |
| 2 conductors with same cross section, stranded, ferrules without plastic sleeve | 0.5 mm² ... 4 mm² |
| 2 conductors with same cross section, stranded, with TWIN ferrules with plastic sleeve | 0.5 mm² ... 16 mm² |
| Stripping length | 18 mm |
| Torque | 2.5 Nm ... 4.5 Nm |
Material data - contact
| Note | WEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201 |
|---|---|
| Contact material | Cu alloy |
| Surface characteristics | galvanized |
| Metal surface terminal point (top layer) | Tin (5 - 7 µm Sn) |
| Metal surface soldering area (top layer) | Tin (5 - 7 µm Sn) |
Material data - housing
| Insulating material | PA |
|---|---|
| Insulating material group | I |
| CTI according to IEC 60112 | 600 |
| Flammability rating according to UL 94 | V0 |
| Glow wire flammability index GWFI according to EN 60695-2-12 | 850 |
| Glow wire ignition temperature GWIT according to EN 60695-2-13 | 775 |
| Temperature for the ball pressure test according to EN 60695-10-2 | 125 °C |
Dimensions for the product
| Dimensional drawing | |
|---|---|
| Length [ l ] | 31 mm |
| Width [ w ] | 60 mm |
| Height [ h ] | 43.5 mm |
| Pitch | 15 mm |
| Height (without solder pin) | 39 mm |
| Solder pin [P] | 4.5 mm |
| Pin spacing | 12.5 mm |
| Pin dimensions | 1.2 x 1.2 mm |
| Dimension a | 15 mm |
Packaging information
| Type of packaging | packed in cardboard |
|---|---|
| Pieces per package | 25 |
| Denomination packing units | Pcs. |
| Outer packaging type | Carton |
| Delivery state | Open clamping space |
Processing notes
| Process | Wave soldering |
|---|---|
| Specification | Following IEC 61760-1:2006-04 |
| Following IEC 60068-2-54:2006-04 |
Ambient conditions
| Ambient temperature (storage/transport) | -40 °C ... 70 °C |
|---|---|
| Ambient temperature (assembly) | -5 °C ... 100 °C |
| Ambient temperature (operation) | -40 °C (Depending on the current carrying capacity/derating curve) |
Electrical tests
| Rated current | 125 A |
|---|---|
| Rated insulation voltage (III/2) | 1000 V |
| Rated surge voltage (III/2) | 8 kV |
Air clearances and creepage distances
| Insulating material group | I |
|---|---|
| Rated insulation voltage (III/3) | 1000 V |
| Rated insulation voltage (III/2) | 1000 V |
| Rated insulation voltage (II/2) | 1000 V |
| Rated surge voltage (III/3) | 8 kV |
| Rated surge voltage (III/2) | 8 kV |
| Rated surge voltage (II/2) | 8 kV |
Standards and Regulations
| Connection in acc. with standard | EN-VDE |
|---|---|
| CUL | |
| Flammability rating according to UL 94 | V0 |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
eCl@ss 4.027141109eCl@ss 4.127141109eCl@ss 5.027141190eCl@ss 5.127261100eCl@ss 6.027261100eCl@ss 7.027440401eCl@ss 8.027440401eCl@ss 9.027440401
| Feature Name | Feature Value |
|---|---|
| Height (EF000040) | 43.5 mm |
| Number of electrical connections (EF008252) | 2 |
| Number of levels (EF002659) | 1 |
| Modular spacing connections (EF006827) | 15 mm |
| Rated current In (EF008250) | 125 A |
| Rated voltage (EF000228) | 1000 V |
| Rated surge voltage (EF002993) | 8 kV |
| Over voltage category (EF006785) | III |
| Pollution degree (EF006786) | 2 |
| Connection type conductor (EF006821) | Screw connection |
| Connectable conductor cross section solid-core (EF007337) | 0.5 mm² |
| Connectable conductor cross section fine-strand with cable end sleeve (EF007339) | 1.5 mm² |
| Connectable conductor cross section fine-strand without cable end sleeve (EF007341) | 0.5 mm² |
| Connectable conductor cross section multi-wired (EF007343) | 0.5 mm² |
| Connection type PCB (EF006822) | Soldering connection |
| Material connection surface (EF006826) | Tin |
| Diameter connection pin (EF006823) | 1.6 mm |
| Length pin (EF006825) | 4.5 mm |
| Material insulation body (EF007543) | Other |
| Housing colour (EF000136) | Green |
| Inflammability class of insulation material according to UL94 (EF002521) | V0 |
| Operating temperature (EF002393) | -40 °C |
| Type of PCB fastening (EF008226) | Flange |
| Type of fastening (EF002442) | Solder |
| Type of banding (EF007011) | Carton (for SMD) |
