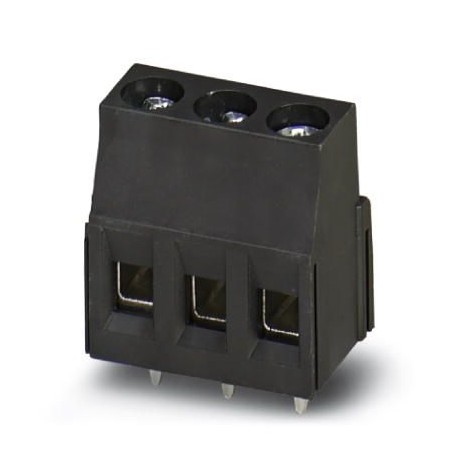

PHOENIX CONTACT MKDSN 2,5/ 3 HT BK MKDSN 2,5/ 3 HT BK 1985933 PHOENIX CONTACT PCB terminal block View larger
Images are for illustrative purposes only. Please refer to data sheet for details

MKDSN 2,5/ 3 HT BK 1985933 PHOENIX CONTACT PCB terminal block

MKDSN 2,5/ 3 HT BK

1985933

PHOENIX CONTACT

50 Pcs.

PCB terminal block Terminal block for printed circuit board, nominal current: 16 A, nominal voltage (III/2): 320 V, nominal section: 2.5 mm², number of potentials: 3, number of rows: 1, number of poles per row: 3, family of articles: MKDSN 2.5/.. -HT, pitch: 5 mm, connection type: Screw connection with traction capsule, screw clamping shape: L Longitudinal slot, mounting: Weld THR, conductor connection direction/printed circuit board: 0 °, color: black, Pin arrangement: Linear pin arrangement, Pin length [P]: 3.5 mm, number of solder pins per potential: 1, Packing type: Boxed packed. This item can be soldered together with SMD components in reflow soldering ovens.

Connectors > Printed circuit board terminal
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1985933
Packing unit50 pc
Minimum order quantity50 pc
Catalog pagePage 77 (C-1-2013)
GTIN4017918929336
Weight per Piece (excluding packing)6.090 g
Custom tariff number85369010
Country of originDE (Germany)

Dimensions

Length [ l ]9.5 mm
Pitch5 mm
Dimension a10 mm
Width [ w ]15 mm
Height15 mm
Height [ h ]18.5 mm
Solder pin [P]3.5 mm
Pin spacing5 mm
Hole diameter1.3 mm

General

Range of articlesMKDSN 2,5/..-HT
Insulating material groupIIIa
Rated surge voltage (III/3)4 kV
Rated surge voltage (III/2)4 kV
Rated surge voltage (II/2)4 kV
Rated voltage (III/3)200 V
Rated voltage (III/2)320 V
Rated voltage (II/2)630 V
Connection in acc. with standardEN-VDE
Nominal current IN16 A
Nominal cross section2.5 mm²
Maximum load current16 A (with a 2.5 mm² conductor cross section)
Insulating materialPA
Solder pin surface
Flammability rating according to UL 94V0
Internal cylindrical gageA3
Stripping length6.5 mm
Number of positions3
Screw threadM3
Tightening torque, min0.5 Nm
Tightening torque max0.6 Nm

Connection data

Conductor cross section solid min.0.2 mm²
Conductor cross section solid max.2.5 mm²
Conductor cross section flexible min.0.2 mm²
Conductor cross section flexible max.2.5 mm²
Conductor cross section flexible, with ferrule without plastic sleeve min.0.25 mm²
Conductor cross section flexible, with ferrule without plastic sleeve max.2.5 mm²
Conductor cross section flexible, with ferrule with plastic sleeve min.0.25 mm²
Conductor cross section flexible, with ferrule with plastic sleeve max.2.5 mm²
Conductor cross section AWG min.24
Conductor cross section AWG max.14
2 conductors with same cross section, solid min.0.2 mm²
2 conductors with same cross section, solid max.0.75 mm²
2 conductors with same cross section, stranded min.0.2 mm²
2 conductors with same cross section, stranded max.0.75 mm²
2 conductors with same cross section, stranded, ferrules without plastic sleeve, min.0.25 mm²
2 conductors with same cross section, stranded, ferrules without plastic sleeve, max.0.75 mm²
2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, min.0.5 mm²
2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, max.1.5 mm²

Standards and Regulations

Connection in acc. with standardEN-VDE
CUL
Flammability rating according to UL 94V0

Environmental Product Compliance

REACh SVHCLead 7439-92-1
China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


ETIM for 1985933 Connectors (EC002643)
Feature Name Feature Value
Height (EF000040) 18.5 mm
Number of electrical connections (EF008252) 3
Number of levels (EF002659) 1
Modular spacing connections (EF006827) 5 mm
Rated current In (EF008250) 16 A
Rated voltage (EF000228) 320 V
Rated surge voltage (EF002993) 4 kV
Over voltage category (EF006785) III
Pollution degree (EF006786) 2
Connection type conductor (EF006821) Screw connection
Connectable conductor cross section solid-core (EF007337) 0.2 mm²
Connectable conductor cross section fine-strand with cable end sleeve (EF007339) 0.25 mm²
Connectable conductor cross section fine-strand without cable end sleeve (EF007341) 0.2 mm²
Connectable conductor cross section multi-wired (EF007343) 0.2 mm²
Connection type PCB (EF006822) Soldering connection
Material connection surface (EF006826) Tin
Diameter connection pin (EF006823) 1.3 mm
Length pin (EF006825) 3.5 mm
Material insulation body (EF007543) Other
Housing colour (EF000136) Black
Inflammability class of insulation material according to UL94 (EF002521) V0
Operating temperature (EF002393) -40 °C
Type of PCB fastening (EF008226) Connecting contact
Type of fastening (EF002442) Solder
Type of banding (EF007011) Carton (for SMD)
