PHOENIX CONTACT MKDS 1/ 6-3,81 SMD BK MKDS 1/ 6-3,81 SMD BK 1727272 PHOENIX CONTACT PCB terminal block View larger
Images are for illustrative purposes only. Please refer to data sheet for details

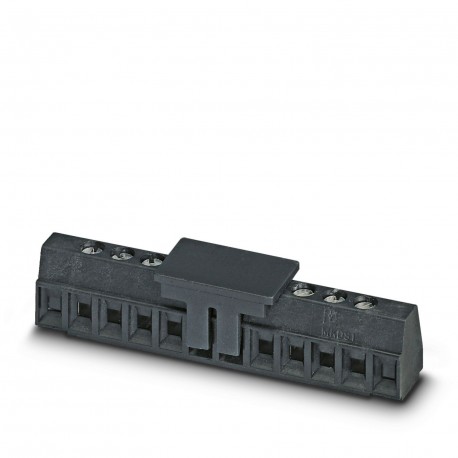

MKDS 1/ 6-3,81 SMD BK 1727272 PHOENIX CONTACT PCB terminal block

MKDS 1/ 6-3,81 SMD BK

1727272

PHOENIX CONTACT

17 Pcs.

PCB terminal block Terminal block for printed circuit board, nominal current: 8 A, nominal voltage (III/2): 160 V, nominal section: 1 mm², number of potentials: 6, number of rows: 1, number of poles per row: 6, family of articles: MKDS 1/.. -SMD, pitch: 3.81 mm, connection type: Screw connection with traction capsule, screw clamping form: L Longitudinal slot, mounting: SMD soldering, conductor/printed circuit board connection direction: 0 °, color: black, Pin arrangement: Linear pin arrangement, number of solder pins per potential: 1, packaging type: Bar loader Printed circuit board terminal, rated current: 8 A, rated voltage (III/2): 160 V, rated cross-section: 1 mm2, number of potentials: 6, number of rows: 1, number of poles per row: 6, item family: MKDS 1/.. -SMD, pitch: 3.81 mm, connection type: Screw connection with traction capsule, screw clamping shape: L Longitudinal slot, mounting: SMD welding, driver/printed circuit board connection direction: 0 °, color: black, Pin arrangement: Linear pad geometry, number of solder pins per potential: 1, packaging type: Bar loader

Connectors > Printed circuit board terminal
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1727272
Packing unit17 pc
Minimum order quantity17 pc
NoteMade to Order (non-returnable)
Catalog pagePage 82 (C-1-2013)
GTIN4017918025649
Weight per Piece (excluding packing)6.290 g
Custom tariff number85369010
Country of originPL (Poland)

Dimensions

Length [ l ]7.3 mm
Pitch3.81 mm
Dimension a19.05 mm
Width [ w ]22.85 mm
Height9.2 mm
Height [ h ]9.2 mm

General

Range of articlesMKDS 1/..-SMD
Insulating material groupIIIa
Rated surge voltage (III/3)2.5 kV
Rated surge voltage (III/2)2.5 kV
Rated surge voltage (II/2)2.5 kV
Rated voltage (III/3)160 V
Rated voltage (III/2)160 V
Rated voltage (II/2)250 V
Connection in acc. with standardEN-VDE
Nominal current IN8 A
Nominal cross section1 mm²
Maximum load current8 A (with 1.5 mm² conductor cross section)
Insulating materialPA-F
Solder pin surface
Flammability rating according to UL 94V0
Stripping length5 mm
Number of positions6
Screw threadM2
Tightening torque, min0.22 Nm
Tightening torque max0.25 Nm

Connection data

Conductor cross section solid min.0.14 mm²
Conductor cross section solid max.1.5 mm²
Conductor cross section flexible min.0.14 mm²
Conductor cross section flexible max.1 mm²
Conductor cross section flexible, with ferrule without plastic sleeve min.0.25 mm²
Conductor cross section flexible, with ferrule without plastic sleeve max.0.5 mm²
Conductor cross section flexible, with ferrule with plastic sleeve min.0.25 mm²
Conductor cross section flexible, with ferrule with plastic sleeve max.0.5 mm²
Conductor cross section AWG min.26
Conductor cross section AWG max.16
2 conductors with same cross section, solid min.0.14 mm²
2 conductors with same cross section, solid max.0.5 mm²
2 conductors with same cross section, stranded min.0.14 mm²
2 conductors with same cross section, stranded max.0.2 mm²

Standards and Regulations

Connection in acc. with standardEN-VDE
CSA
Flammability rating according to UL 94V0

Environmental Product Compliance

China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


ETIM for 1727272 Connectors (EC002643)
Feature Name Feature Value
Height (EF000040) 9.2 mm
Number of electrical connections (EF008252) 6
Number of levels (EF002659) 1
Modular spacing connections (EF006827) 3.81 mm
Rated current In (EF008250) 8 A
Rated voltage (EF000228) 160 V
Rated surge voltage (EF002993) 2.5 kV
Over voltage category (EF006785) III
Pollution degree (EF006786) 2
Connection type conductor (EF006821) Screw connection
Connectable conductor cross section solid-core (EF007337) 0.14 mm²
Connectable conductor cross section fine-strand with cable end sleeve (EF007339) 0.25 mm²
Connectable conductor cross section fine-strand without cable end sleeve (EF007341) 0.14 mm²
Connectable conductor cross section multi-wired (EF007343) 0.14 mm²
Connection type PCB (EF006822) Soldering connection
Material connection surface (EF006826) Tin
Material insulation body (EF007543) Other
Housing colour (EF000136) Black
Inflammability class of insulation material according to UL94 (EF002521) V0
Operating temperature (EF002393) -40 °C
Type of PCB fastening (EF008226) Connecting contact
Type of fastening (EF002442) Solder
Type of banding (EF007011) Other

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
