> PHOENIX CONTACT > PCB Connectors (PCC) > 1727230

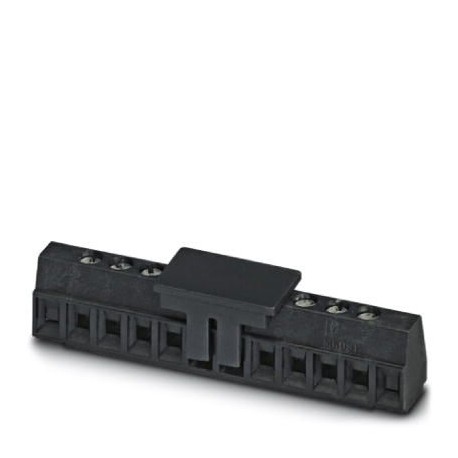

PHOENIX CONTACT MKDS 1/ 2-3,81 SMD BK MKDS 1/ 2-3,81 SMD BK 1727230 PHOENIX CONTACT PCB terminal block View larger
Images are for illustrative purposes only. Please refer to data sheet for details

MKDS 1/ 2-3,81 SMD BK 1727230 PHOENIX CONTACT PCB terminal block

MKDS 1/ 2-3,81 SMD BK

1727230

PHOENIX CONTACT

35 Pcs.

PCB terminal block Terminal block for printed circuit board, nominal current: 8 A, nominal voltage (III/2): 160 V, nominal section: 1 mm², number of potentials: 2, number of rows: 1, number of poles per row: 2, family of articles: MKDS 1/.. -SMD, pitch: 3.81 mm, connection type: Screw connection with traction capsule, screw clamping form: L Longitudinal slot, mounting: SMD soldering, conductor/printed circuit board connection direction: 0 °, color: black, Pin arrangement: Linear pin arrangement, number of solder pins per potential: 1, packaging type: Bar loader

Connectors > Printed circuit board terminal
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1727230
Packing unit35 pc
Minimum order quantity35 pc
Catalog pagePage 82 (C-1-2013)
GTIN4017918025601
Weight per Piece (excluding packing)3.350 g
Custom tariff number85369010
Country of originPL (Poland)

Item properties

Brief article descriptionPCB terminal block
Range of articlesMKDS 1/..-SMD
Pitch3.81 mm
Number of positions2
Connection methodScrew connection with tension sleeve
Drive form screw headSlotted
Screw threadM2
Mounting typeSMD soldering
Pin layoutLinear pad geometry
Number of levels1
Number of connections2
Number of potentials2

Electrical parameters

Rated current8 A
Rated insulation voltage (III/2)160 V
Rated surge voltage (III/2)2.5 kV

Connection capacity

Conductor cross section solid0.14 mm² ... 1.5 mm²
Conductor cross section flexible0.14 mm² ... 1 mm²
Conductor cross section AWG / kcmil26 ... 16
Conductor cross section flexible, with ferrule without plastic sleeve0.25 mm² ... 0.5 mm²
Conductor cross section, flexible, with ferrule, with plastic sleeve0.25 mm² ... 0.5 mm²
2 conductors with same cross section, solid0.14 mm² ... 0.5 mm²
2 conductors with same cross section, flexible0.14 mm² ... 0.2 mm²
Stripping length5 mm
Torque0.22 Nm ... 0.25 Nm

Material data - contact

NoteWEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201
Contact materialCu alloy
Surface characteristicsTin-plated
Metal surface terminal point (top layer)Tin (5 - 7 µm Sn)
Metal surface terminal point (middle layer)Nickel (2 - 3 µm Ni)
Metal surface soldering area (top layer)Tin (5 - 7 µm Sn)
Metal surface soldering area (middle layer)Nickel (2 - 3 µm Ni)

Material data - housing

Insulating materialPA
Insulating material groupIIIa
CTI according to IEC 60112
Flammability rating according to UL 94V0
Glow wire flammability index GWFI according to EN 60695-2-12850
Glow wire ignition temperature GWIT according to EN 60695-2-13775
Temperature for the ball pressure test according to EN 60695-10-2125 °C

Dimensions for the product

Dimensional drawing
CaptionSchematic representation – for additional information, see product range drawing in the Download Center
Length [ l ]7.3 mm
Width [ w ]7.61 mm
Height [ h ]9.2 mm
Pitch3.81 mm
Height (without solder pin)9.2 mm
Dimension a3.81 mm

Packaging information

Type of packagingTube magazine
Pieces per package35
Denomination packing unitsPcs.

General product information

Type of noteNote on application
NotePick and place pads may protrude beyond the components. The PCB layout must ensure that collisions are avoided when components are assembled.

Ambient conditions

Ambient temperature (storage/transport)-40 °C ... 70 °C
Ambient temperature (assembly)-5 °C ... 100 °C
Ambient temperature (operation)-40 °C (dependent on the derating curve)

Electrical tests

Rated current8 A
Rated insulation voltage (III/2)160 V
Rated surge voltage (III/2)2.5 kV

Air clearances and creepage distances

Insulating material groupIIIa
Rated insulation voltage (III/3)160 V
Rated insulation voltage (III/2)160 V
Rated insulation voltage (II/2)250 V
Rated surge voltage (III/3)2.5 kV
Rated surge voltage (III/2)2.5 kV
Rated surge voltage (II/2)2.5 kV

Standards and Regulations

Connection in acc. with standardEN-VDE
CSA
Flammability rating according to UL 94V0

Environmental Product Compliance

China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


ETIM for 1727230 Connectors (EC002643)
Feature Name Feature Value
Height (EF000040) 9.2 mm
Number of electrical connections (EF008252) 2
Number of levels (EF002659) 1
Modular spacing connections (EF006827) 3.81 mm
Rated current In (EF008250) 8 A
Rated voltage (EF000228) 160 V
Rated surge voltage (EF002993) 2.5 kV
Over voltage category (EF006785) III
Pollution degree (EF006786) 2
Connection type conductor (EF006821) Screw connection
Connectable conductor cross section solid-core (EF007337) 0.14 mm²
Connectable conductor cross section fine-strand with cable end sleeve (EF007339) 0.25 mm²
Connectable conductor cross section fine-strand without cable end sleeve (EF007341) 0.14 mm²
Connectable conductor cross section multi-wired (EF007343) 0.14 mm²
Connection type PCB (EF006822) Soldering connection
Material connection surface (EF006826) Tin
Material insulation body (EF007543) Other
Housing colour (EF000136) Black
Inflammability class of insulation material according to UL94 (EF002521) V0
Operating temperature (EF002393) -40 °C
Type of PCB fastening (EF008226) Connecting contact
Type of fastening (EF002442) Solder
Type of banding (EF007011) Other
