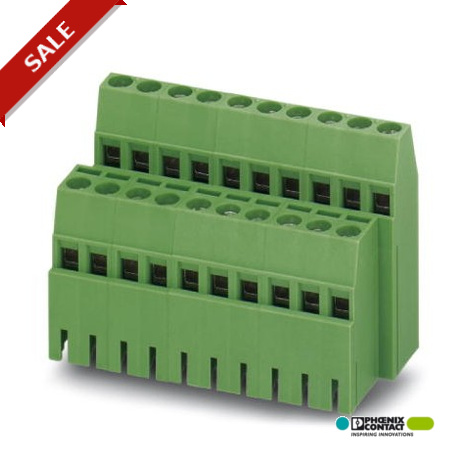

PHOENIX CONTACT MK3DS 1,5/ 3-5,08-BC MK3DS 1,5/ 3-5,08-BC 1706426 PHOENIX CONTACT PCB terminal block, Nominal current: 15 A, Nom. voltage: 400 V,.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

MK3DS 1,5/ 3-5,08-BC 1706426 PHOENIX CONTACT PCB terminal block, Nominal current: 15 A, Nom. voltage: 400 V,..

MK3DS 1,5/ 3-5,08-BC

1706426

PHOENIX CONTACT

50 Pcs.

PCB terminal block, Nominal current: 15 A, Nom. voltage: 400 V, Pitch: 5.08 mm, Number of positions: 3, Connection method: Screw connection with tension sleeve, Mounting: Wave soldering, Conductor/PCB connection direction: 0 °, Color: green, The article can be aligned to create different nos. of positions! Terminal block for printed circuit board, number of poles per row: 3, family of articles: MK3DS 1.5/.. - BC, pitch: 5.08 mm, screw clamping shape: L Longitudinal slot, color: green, Pin arrangement: Linear pin arrangement, Pin length [P]: 3.5 mm, packaging type: boxed packed. The item can be aligned with different numbers of poles!

Connectors > Printed circuit board terminal
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Dimensions

Length22.2 mm
Pitch5.08 mm
Dimension a10.16 mm
Constructional height37 mm
Height36.6 mm
Length of the solder pin3.5 mm
Pin dimensions0,9 x 0,9 mm
Hole diameter1.3 mm

General

Range of articlesMK3DS 1,5
Insulating material groupI
Rated surge voltage (III/3)4 kV
Rated surge voltage (III/2)4 kV
Rated surge voltage (II/2)4 kV
Rated voltage (III/3)250 V
Rated voltage (III/2)400 V
Rated voltage (II/2)630 V
Connection in acc. with standardEN-VDE
Nominal current IN15 A
Nominal cross section1.5 mm²
Maximum load current17.5 A (with a 2.5 mm² conductor cross section)
Insulating materialPA
Solder pin surfaceSn
Flammability rating according to UL 94V0
Internal cylindrical gageA1
Stripping length7 mm
Number of positions3
Screw threadM3
Tightening torque, min0.5 Nm
Tightening torque max0.6 Nm

Connection data

Conductor cross section solid min.0.14 mm²
Conductor cross section solid max.2.5 mm²
Conductor cross section flexible min.0.14 mm²
Conductor cross section flexible max.1.5 mm²
Conductor cross section flexible, with ferrule without plastic sleeve min.0.25 mm²
Conductor cross section flexible, with ferrule without plastic sleeve max.1.5 mm²
Conductor cross section flexible, with ferrule with plastic sleeve min.0.25 mm²
Conductor cross section flexible, with ferrule with plastic sleeve max.1.5 mm²
Conductor cross section AWG min.26
Conductor cross section AWG max.14
2 conductors with same cross section, solid min.0.14 mm²
2 conductors with same cross section, solid max.1 mm²
2 conductors with same cross section, stranded min.0.14 mm²
2 conductors with same cross section, stranded max.0.75 mm²
2 conductors with same cross section, stranded, ferrules without plastic sleeve, min.0.25 mm²
2 conductors with same cross section, stranded, ferrules without plastic sleeve, max.0.5 mm²
2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, min.0.5 mm²
2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, max.0.5 mm²

ETIM for 1706426 Connectors (EC002643)
Feature Name Feature Value
Height (EF000040) 40.1 mm
Modular spacing connections (EF006827) 5.08 mm
Over voltage category (EF006785) III
Pollution degree (EF006786) 2
Connection type PCB (EF006822) Soldering connection
Diameter connection pin (EF006823) 1.3 mm
Length pin (EF006825) 3.5 mm
Housing colour (EF000136) Green
Type of banding (EF007011) Carton (for SMD)
