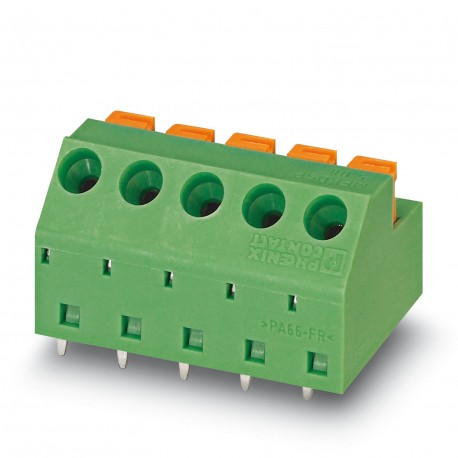

MFKDSP/ 5-5,08 1906776 PHOENIX CONTACT PCB terminal block

MFKDSP/ 5-5,08

1906776

PHOENIX CONTACT

50 Pcs.

PCB terminal block Terminal block for printed circuit board, nominal current: 12 A, nominal voltage (III/2): 320 V, nominal cross-section: 1 mm², number of potentials: 5, number of rows: 1, number of poles per row: 5, article family: MFKDSP, pitch: 5.08 mm, connection type: Push-in spring connection, mounting: Wave soldering, conductor connection direction/printed circuit board: 45 °, color: green, Pin arrangement: Linear pin arrangement, Pin length [P]: 3.3 mm, number of solder pins per potential: 2, packaging type: boxed PCB terminal block, rated current: 12 A, dimensioning voltage (III/2): 320 V, nominal cross-section: 1 mm2, number of potentials: 5, number of rows: 1, number of poles per row: 5, product series: MFKDSP, pitch: 5.08 mm, connection type: Push-in spring connection, mounting: wave soldering, conductor/board connection direction: 45 °, Color: Green, Pin Layout: Linear Pinning, Pin Length [P]: 3.3mm, Number of Solder Pins Per Potential: 2, Package Type: Packed in Carton

Connectors > Printed circuit board terminal
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1906776
Packing unit50 pc
Minimum order quantity50 pc
Catalog pagePage 120 (CC-2009)
GTIN4017918928919
Weight per Piece (excluding packing)5.820 g
Custom tariff number85369010
Country of originPL (Poland)

Dimensions

Length [ l ]16.2 mm
Pitch5.08 mm
Dimension a20.32 mm
Width [ w ]25.4 mm
Height12.92 mm
Height [ h ]16.22 mm
Solder pin [P]3.3 mm
Pin spacing10.16 mm
Hole diameter1.3 mm

General

Range of articlesMFKDSP
Insulating material groupI
Rated surge voltage (III/3)4 kV
Rated surge voltage (III/2)4 kV
Rated surge voltage (II/2)4 kV
Rated voltage (III/3)250 V
Rated voltage (III/2)320 V
Rated voltage (II/2)630 V
Connection in acc. with standardEN-VDE
Nominal current IN12 A
Nominal cross section1 mm²
Maximum load current12 A (with 1.5 mm² conductor cross section)
Insulating materialPA
Solder pin surface
Flammability rating according to UL 94V0
Stripping length10 mm
Number of positions5

Connection data

Conductor cross section solid min.0.2 mm²
Conductor cross section solid max.1.5 mm²
Conductor cross section flexible min.0.2 mm²
Conductor cross section flexible max.1 mm²
Conductor cross section flexible, with ferrule without plastic sleeve min.0.25 mm²
Conductor cross section flexible, with ferrule without plastic sleeve max.0.75 mm²
Conductor cross section flexible, with ferrule with plastic sleeve min.0.25 mm²
Conductor cross section flexible, with ferrule with plastic sleeve max.0.75 mm²
Conductor cross section AWG min.24
Conductor cross section AWG max.16

Standards and Regulations

Connection in acc. with standardEN-VDE
CSA
Flammability rating according to UL 94V0

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Classifications


Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
