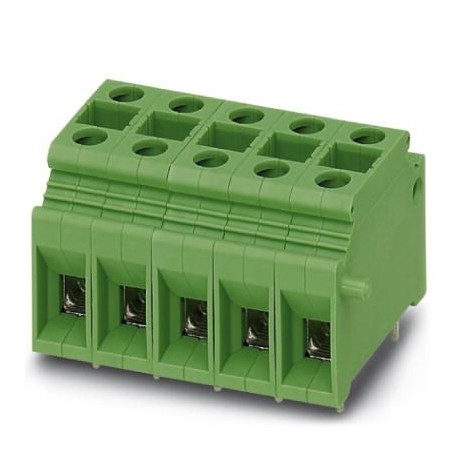

PHOENIX CONTACT KDS10 KDS10 1704020 PHOENIX CONTACT PCB terminal block View larger
Images are for illustrative purposes only. Please refer to data sheet for details

KDS10 1704020 PHOENIX CONTACT PCB terminal block

KDS10

1704020

PHOENIX CONTACT

50 Pcs.

PCB terminal block Terminal block for printed circuit board, nominal current: 76 A, nominal voltage (III/2): 320 V, nominal cross-section: 10 mm², number of potentials: 1, number of rows: 1, number of poles per row: 1, article family: KDS10, pitch: 10 mm, connection type: Screw connection with traction capsule, mounting: Wave soldering, conductor connection direction/printed circuit board: 0°, color: green, Pin arrangement: Linear pin arrangement, Pin length [P]: 4.3 mm, number of solder pins per potential: 4, packaging type: boxed packaging. The item can be aligned with different numbers of poles!

Connectors > Printed circuit board terminal
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1704020
Packing unit50 pc
Catalog pagePage 457 (C-1-2013)
GTIN4017918023164
Weight per Piece (excluding packing)16.060 g
Custom tariff number85369010
Country of originDE (Germany)

Dimensions

Length [ l ]36.8 mm
Pitch10 mm
Width [ w ]10 mm
Height29 mm
Height [ h ]33.3 mm
Solder pin [P]4.3 mm
Hole diameter1.4 mm

General

Range of articlesKDS10
Insulating material groupI
Rated surge voltage (III/3)4 kV
Rated surge voltage (III/2)4 kV
Rated surge voltage (II/2)4 kV
Rated voltage (III/3)250 V
Rated voltage (III/2)320 V
Rated voltage (II/2)630 V
Connection in acc. with standardEN-VDE
Nominal current IN76 A
Nominal cross section10 mm²
Maximum load current76 A (with 16 mm² conductor cross section)
Insulating materialPA
Solder pin surface
Flammability rating according to UL 94V0
Internal cylindrical gageB6
Stripping length12 mm
Number of positions1
Screw threadM4
Tightening torque, min1.2 Nm
Tightening torque max1.5 Nm

Connection data

Conductor cross section solid min.0.5 mm²
Conductor cross section solid max.16 mm²
Conductor cross section flexible min.0.5 mm²
Conductor cross section flexible max.10 mm²
Conductor cross section flexible, with ferrule without plastic sleeve min.0.5 mm²
Conductor cross section flexible, with ferrule without plastic sleeve max.10 mm²
Conductor cross section flexible, with ferrule with plastic sleeve min.0.5 mm²
Conductor cross section flexible, with ferrule with plastic sleeve max.10 mm²
Conductor cross section AWG min.20
Conductor cross section AWG max.6
2 conductors with same cross section, solid min.0.5 mm²
2 conductors with same cross section, solid max.4 mm²
2 conductors with same cross section, stranded min.0.5 mm²
2 conductors with same cross section, stranded max.4 mm²
2 conductors with same cross section, stranded, ferrules without plastic sleeve, min.0.5 mm²
2 conductors with same cross section, stranded, ferrules without plastic sleeve, max.2.5 mm²
2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, min.0.5 mm²
2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, max.6 mm²

Standards and Regulations

Connection in acc. with standardEN-VDE
CSA
Flammability rating according to UL 94V0

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values
