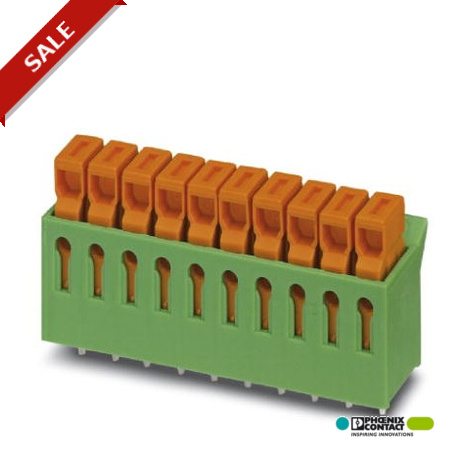

IDC 0,3/12-3,81 1706277 PHOENIX CONTACT PCB terminal block, Nominal current: 5 A, Nom. voltage: 160 V, Pitch..
IDC 0,3/12-3,81
1706277
PHOENIX CONTACT
50 Pcs.
PCB terminal block, Nominal current: 5 A, Nom. voltage: 160 V, Pitch: 3.81 mm, Number of positions: 12, Connection method: Displacement connection, Mounting: Wave soldering, Conductor/PCB connection direction: 0 °, Color: green
Terminal block for printed circuit board, nominal current: 5 A, nominal voltage (III/2): 160 V, nominal cross-section: 0.34 mm², number of potentials: 12, number of rows: 1, number of poles per row: 12, article family: IDC 0.3, pitch: 3.81 mm, connection type: Offset connection, mounting: Wave soldering, conductor connection direction/printed circuit board: 0 °, color: green, Pin arrangement: Linear pin arrangement, Pin length [P]: 3.4 mm, number of welding pins per potential: 1, packaging type: boxed
Connectors > Printed circuit board terminal
PCB Connectors (PCC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Dimensions
| Length | 10 mm |
|---|---|
| Pitch | 3.81 mm |
| Dimension a | 41.91 mm |
| Constructional height | 15 mm |
| Length of the solder pin | 3.5 mm |
| Pin dimensions | 1 x 0,4 mm |
| Hole diameter | 1.3 mm |
General
| Range of articles | IDC 0,3 |
|---|---|
| Insulating material group | I |
| Rated surge voltage (III/3) | 2.5 kV |
| Rated surge voltage (III/2) | 2.5 kV |
| Rated surge voltage (II/2) | 2.5 kV |
| Rated voltage (III/3) | 160 V |
| Rated voltage (III/2) | 160 V |
| Rated voltage (II/2) | 320 V |
| Connection in acc. with standard | EN-VDE |
| Nominal current IN | 5 A |
| Nominal cross section | 0.34 mm² |
| Maximum load current | 5 A (with 0.34 mm² conductor cross section) |
| Insulating material | PA |
| Solder pin surface | Sn |
| Flammability rating according to UL 94 | V0 |
| Number of positions | 12 |
Connection data
| Conductor cross section solid min. | 0.13 mm² |
|---|---|
| Conductor cross section solid max. | 0.34 mm² |
| Conductor cross section flexible min. | 0.22 mm² |
| Conductor cross section flexible max. | 0.34 mm² |
| Conductor cross section AWG min. | 26 |
| Conductor cross section AWG max. | 22 |
| Wire diameter incl. insulation | 1.8 mm |
| Feature Name | Feature Value |
|---|---|
| Height (EF000040) | 22.2 mm |
| Number of electrical connections (EF008252) | 12 |
| Number of levels (EF002659) | 1 |
| Modular spacing connections (EF006827) | 3.81 mm |
| Rated current In (EF008250) | 5 A |
| Rated voltage (EF000228) | 160 V |
| Rated surge voltage (EF002993) | 2.5 kV |
| Over voltage category (EF006785) | III |
| Pollution degree (EF006786) | 2 |
| Connectable conductor cross section solid-core (EF007337) | 0.13 mm² |
| Connectable conductor cross section fine-strand without cable end sleeve (EF007341) | 0.22 mm² |
| Connectable conductor cross section multi-wired (EF007343) | 0.34 mm² |
| Connection type PCB (EF006822) | Soldering connection |
| Material connection surface (EF006826) | Tin |
| Diameter connection pin (EF006823) | 1.3 mm |
| Length pin (EF006825) | 3.4 mm |
| Material insulation body (EF007543) | Other |
| Housing colour (EF000136) | Green |
| Inflammability class of insulation material according to UL94 (EF002521) | V0 |
| Operating temperature (EF002393) | -40 °C |
| Type of PCB fastening (EF008226) | Connecting contact |
| Type of fastening (EF002442) | Solder |
| Type of banding (EF007011) | Carton (for SMD) |
