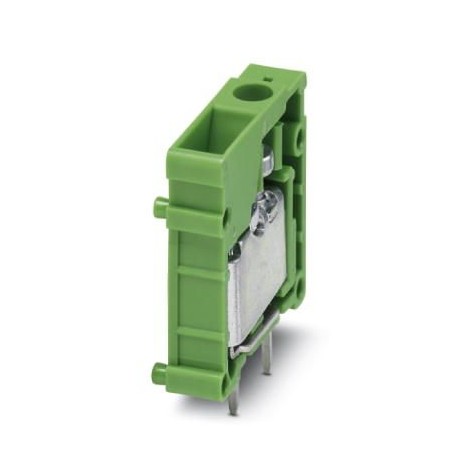

PHOENIX CONTACT FRONT 4-V-6,35 FRONT 4-V-6,35 1703063 PHOENIX CONTACT PCB terminal block View larger
Images are for illustrative purposes only. Please refer to data sheet for details

FRONT 4-V-6,35 1703063 PHOENIX CONTACT PCB terminal block

FRONT 4-V-6,35

1703063

PHOENIX CONTACT

50 Pcs.

PCB terminal block Terminal block for printed circuit board, nominal current: 32 A, nominal voltage (III/2): 320 V, nominal cross-section: 4 mm², number of potentials: 1, number of rows: 1, number of poles per row: 1, article family: FRONT 4-V, pitch: 6.35 mm, connection type: Front screw connection, mounting: Wave soldering, conductor connection direction/printed circuit board: 90 °, color: green, Pin arrangement: Linear pin arrangement, Pin length [P]: 5 mm, number of solder pins per potential: 2, packaging type: boxed. The item can be aligned with different numbers of poles!

Connectors > Printed circuit board terminal
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1703063
Packing unit50 pc
Minimum order quantity50 pc
Catalog pagePage 459 (C-1-2013)
GTIN4017918023089
Weight per Piece (excluding packing)6.500 g
Custom tariff number85369010
Country of originBG (Bulgaria)

Item properties

Brief article descriptionPCB terminal block
Range of articlesFRONT 4-V
Pitch6.35 mm
Number of positions1
Connection methodFront screw connection
Screw threadM3
Mounting typeWave soldering
Pin layoutLinear pinning
Number of levels1
Number of connections1
Number of potentials1

Electrical parameters

Rated current32 A
Rated insulation voltage (III/2)320 V
Rated surge voltage (III/2)4 kV

Connection capacity

Conductor cross section solid0.5 mm² ... 6 mm²
Single-wire/terminal point, stranded GRP0.5 mm² ... 6 mm²
Conductor cross section flexible0.5 mm² ... 6 mm²
Conductor cross section AWG / kcmil20 ... 10
Conductor cross section flexible, with ferrule without plastic sleeve0.5 mm² ... 4 mm²
Conductor cross section, flexible, with ferrule, with plastic sleeve0.5 mm² ... 2.5 mm²
2 conductors with same cross section, solid0.5 mm² ... 1.5 mm²
2 conductors with same cross section, flexible0.5 mm² ... 1.5 mm²
2 conductors with same cross section, stranded, ferrules without plastic sleeve0.25 mm² ... 1 mm²
2 conductors with same cross section, stranded, with TWIN ferrules with plastic sleeve0.5 mm² ... 1 mm²
Stripping length14 mm
Torque0.5 Nm ... 0.6 Nm

Material data - contact

NoteWEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201
Contact materialCu alloy
Surface characteristicsTin-plated
Metal surface terminal point (top layer)Tin (5 - 7 µm Sn)
Metal surface soldering area (top layer)Tin (5 - 7 µm Sn)

Material data - housing

Insulating materialPA
Insulating material groupI
CTI according to IEC 60112600
Flammability rating according to UL 94V0
Glow wire flammability index GWFI according to EN 60695-2-12850
Glow wire ignition temperature GWIT according to EN 60695-2-13775
Temperature for the ball pressure test according to EN 60695-10-2125 °C

Dimensions for the product

Dimensional drawing
Length [ l ]26 mm
Width [ w ]7.62 mm
Height [ h ]32 mm
Pitch6.35 mm
Height (without solder pin)26 mm
Solder pin [P]5 mm
Pin dimensions1 x 0.8 mm

Dimensions for PCB design

Hole diameter1.3 mm

Packaging information

Type of packagingpacked in cardboard
Pieces per package50
Denomination packing unitsPcs.
Outer packaging typeCarton

Ambient conditions

Ambient temperature (storage/transport)-40 °C ... 70 °C
Ambient temperature (assembly)-5 °C ... 100 °C
Ambient temperature (operation)-40 °C

Termination and connection method

Test for conductor damage and slackeningIEC 60999-1:1999-11
Test passed

Pull-out test

Pull-out testIEC 60999-1:1999-11
Test passed
Conductor cross section / conductor type / tensile force0.5 mm² / solid / > 20 N
0.5 mm² / flexible / > 20 N
6 mm² / solid / > 80 N
6 mm² / flexible / > 80 N

Electrical tests

Rated current32 A
Rated insulation voltage (III/2)320 V
Rated surge voltage (III/2)4 kV

Air clearances and creepage distances

Insulating material groupI
Voltage320 V
Rated insulation voltage (III/3)320 V
Rated insulation voltage (III/2)320 V
Rated insulation voltage (II/2)630 V
Rated surge voltage (III/3)4 kV
Rated surge voltage (III/2)4 kV
Rated surge voltage (II/2)4 kV

Standards and Regulations

Connection in acc. with standardEN-VDE
CSA
Flammability rating according to UL 94V0

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Classifications


ETIM for 1703063 Connectors (EC002643)
Feature Name Feature Value
Height (EF000040) 32 mm
Number of electrical connections (EF008252) 1
Number of levels (EF002659) 1
Modular spacing connections (EF006827) 6.35 mm
Rated current In (EF008250) 32 A
Rated voltage (EF000228) 320 V
Rated surge voltage (EF002993) 4 kV
Over voltage category (EF006785) III
Pollution degree (EF006786) 2
Connection type conductor (EF006821) Screw connection
Connectable conductor cross section solid-core (EF007337) 0.5 mm²
Connectable conductor cross section fine-strand with cable end sleeve (EF007339) 0.5 mm²
Connectable conductor cross section fine-strand without cable end sleeve (EF007341) 0.5 mm²
Connectable conductor cross section multi-wired (EF007343) 0.5 mm²
Connection type PCB (EF006822) Soldering connection
Material connection surface (EF006826) Tin
Diameter connection pin (EF006823) 1.3 mm
Length pin (EF006825) 5 mm
Material insulation body (EF007543) Other
Housing colour (EF000136) Green
Inflammability class of insulation material according to UL94 (EF002521) V0
Operating temperature (EF002393) -40 °C
Type of PCB fastening (EF008226) Connecting contact
Type of fastening (EF002442) Solder
Type of banding (EF007011) Carton (for SMD)
