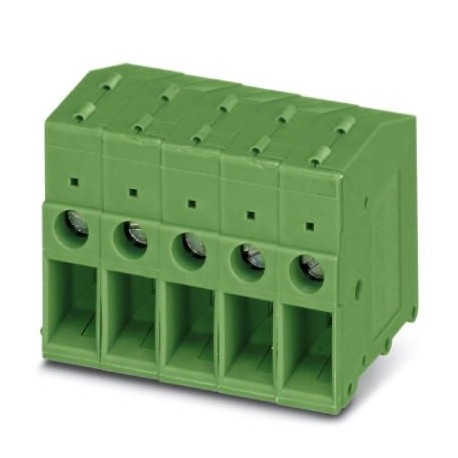

FRONT 4-H-7,62 1703034 PHOENIX CONTACT PCB terminal block

FRONT 4-H-7,62

1703034

PHOENIX CONTACT

50 Pcs.

PCB terminal block Terminal block for printed circuit board, nominal current: 32 A, nominal voltage (III/2): 630 V, nominal cross-section: 4 mm², number of potentials: 1, number of rows: 1, number of poles per row: 1, article family: FRONT 4-H, pitch: 7.62 mm, connection type: Front screw connection, mounting: Wave soldering, conductor connection direction/printed circuit board: 0 °, color: green, Pin arrangement: Linear pin arrangement, Pin length [P]: 5 mm, number of solder pins per potential: 2, packaging type: boxed packaging. The item can be aligned with different numbers of poles!

Connectors > Printed circuit board terminal
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1703034
Packing unit50 pc
Minimum order quantity50 pc
Catalog pagePage 461 (C-1-2013)
GTIN4017918023058
Weight per Piece (excluding packing)9.220 g
Custom tariff number85369010
Country of originBG (Bulgaria)

Item properties

Brief article descriptionPCB terminal block
Range of articlesFRONT 4-H
Pitch7.62 mm
Number of positions1
Connection methodFront screw connection
Screw threadM3
Mounting typeWave soldering
Pin layoutLinear pinning
Number of levels1
Number of connections1
Number of potentials1

Electrical parameters

Rated current32 A
Rated insulation voltage (III/2)630 V
Rated surge voltage (III/2)6 kV

Connection capacity

Conductor cross section solid0.5 mm² ... 6 mm²
Conductor cross section flexible0.5 mm² ... 6 mm²
Conductor cross section AWG / kcmil20 ... 10
Conductor cross section flexible, with ferrule without plastic sleeve0.5 mm² ... 4 mm²
Conductor cross section, flexible, with ferrule, with plastic sleeve0.5 mm² ... 2.5 mm²
2 conductors with same cross section, solid0.5 mm² ... 1.5 mm²
2 conductors with same cross section, flexible0.5 mm² ... 1.5 mm²
2 conductors with same cross section, stranded, ferrules without plastic sleeve0.25 mm² ... 1 mm²
2 conductors with same cross section, stranded, with TWIN ferrules with plastic sleeve0.5 mm² ... 1 mm²
Stripping length14 mm
Torque0.5 Nm ... 0.6 Nm

Material data - contact

NoteWEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201
Contact materialCu alloy
Surface characteristicshot-dip tin-plated
Metal surface terminal point (top layer)Tin (5 - 7 µm Sn)
Metal surface soldering area (top layer)Tin (5 - 7 µm Sn)

Material data - housing

Insulating materialPA
Insulating material groupI
CTI according to IEC 60112600
Flammability rating according to UL 94V0
Glow wire flammability index GWFI according to EN 60695-2-12850
Glow wire ignition temperature GWIT according to EN 60695-2-13775
Temperature for the ball pressure test according to EN 60695-10-2125 °C

Dimensions for the product

Dimensional drawing
CaptionSchematic representation – for additional information, see product range drawing in the Download Center
Length [ l ]26 mm
Width [ w ]7.62 mm
Height [ h ]34.4 mm
Pitch7.62 mm
Height (without solder pin)29.4 mm
Solder pin [P]5 mm
Pin dimensions1 x 0.8 mm

Dimensions for PCB design

Hole diameter1.3 mm

Packaging information

Type of packagingpacked in cardboard
Pieces per package50
Denomination packing unitsPcs.

Electrical tests

Rated current32 A
Rated insulation voltage (III/2)630 V
Rated surge voltage (III/2)6 kV

Air clearances and creepage distances

Insulating material groupI
Voltage500 V
Rated insulation voltage (III/3)500 V
Rated insulation voltage (III/2)630 V
Rated insulation voltage (II/2)1000 V
Rated surge voltage (III/3)6 kV
Rated surge voltage (III/2)6 kV
Rated surge voltage (II/2)6 kV

Standards and Regulations

Connection in acc. with standardEN-VDE
CSA
Flammability rating according to UL 94V0

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Classifications


Product Datasheet
