View larger
Images are for illustrative purposes only. Please refer to data sheet for details

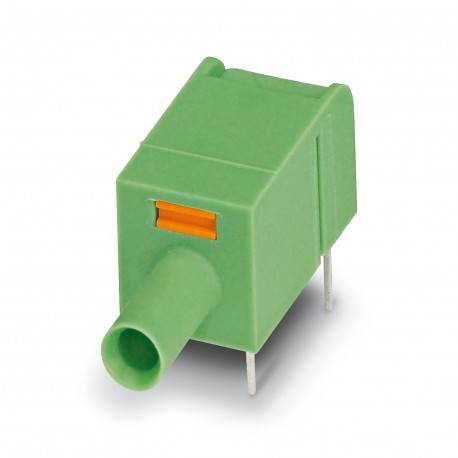

FOPT 2,2-T 1907911 PHOENIX CONTACT FO PCB terminal block
FOPT 2,2-T
1907911
PHOENIX CONTACT
10 Pcs.
FO PCB terminal block
Terminal block for printed circuit board, nominal cross-section: 0 mm², number of potentials: 1, number of rows: 1, number of poles per row: 1, article family: FOPT, pitch: 10.16 mm, connection type: Push-in spring connection, mounting: Wave soldering, conductor/printed circuit board connection direction: 0 °, color: green, Pin arrangement: Linear pin arrangement, number of welding pins per potential: 4, packaging type: boxed packaging. Green housing with emission diode/pluggable fibre optic cable: polymer fibre (according to IEC 60793-2 type A4a, outer enclosure diameter: 2.2 mm) / data rate: 5 MBit/s / transmission distance: max. 50 m / detailed data sheet in the download area
Connectors > Printed circuit board terminal
PCB Connectors (PCC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1907911 |
|---|---|
| Packing unit | 10 pc |
| Minimum order quantity | 10 pc |
| Catalog page | Page 437 (C-1-2013) |
| GTIN | 4017918606237 |
| Weight per Piece (excluding packing) | 3.540 g |
| Custom tariff number | 85369010 |
| Country of origin | PL (Poland) |
General
| Range of articles | FOPT |
|---|---|
| Connection in acc. with standard | EN-VDE |
| Nominal cross section | 0 mm² |
| Solder pin surface | |
| Flammability rating according to UL 94 | HB |
| Number of positions | 1 |
Standards and Regulations
| Connection in acc. with standard | EN-VDE |
|---|---|
| Flammability rating according to UL 94 | HB |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
eCl@ss 4.0272607xxeCl@ss 4.127260701eCl@ss 5.027260701eCl@ss 5.127261100eCl@ss 6.027261100eCl@ss 7.027440401eCl@ss 8.027440401eCl@ss 9.027440401
| Feature Name | Feature Value |
|---|---|
| Height (EF000040) | 16.6 mm |
| Number of electrical connections (EF008252) | 1 |
| Number of levels (EF002659) | 1 |
| Modular spacing connections (EF006827) | 10.16 mm |
| Over voltage category (EF006785) | III |
| Pollution degree (EF006786) | 2 |
| Connection type conductor (EF006821) | Spring clamp connection |
| Connection type PCB (EF006822) | Soldering connection |
| Diameter connection pin (EF006823) | 0.7 mm |
| Length pin (EF006825) | 6 mm |
| Housing colour (EF000136) | Green |
| Operating temperature (EF002393) | 0 °C |
| Type of PCB fastening (EF008226) | Connecting contact |
| Type of fastening (EF002442) | Solder |
| Type of banding (EF007011) | Carton (for SMD) |
