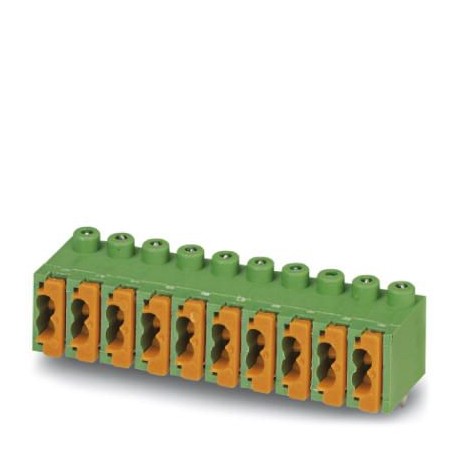

FK-MPT 0,5/ 2-3,5-H 1928767 PHOENIX CONTACT PCB terminal block

FK-MPT 0,5/ 2-3,5-H

1928767

PHOENIX CONTACT

50 Pcs.

PCB terminal block Terminal block for printed circuit board, nominal current: 4 A, nominal voltage (III/2): 250 V, nominal section: 0.5 mm², number of potentials: 2, number of rows: 1, number of poles per row: 2, article family: FK-MPT 0.5/.. -H, pitch: 3.5 mm, connection type: Push-in spring connection, mounting: Wave soldering, conductor connection direction/printed circuit board: 0 °, color: green, Pin arrangement: Linear pin arrangement, Pin length [P]: 4 mm, number of solder pins per potential: 1, packaging type: boxed

Connectors > Printed circuit board terminal
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1928767
Packing unit50 pc
Minimum order quantity50 pc
NoteMade to Order (non-returnable)
Catalog pagePage 403 (C-1-2013)
GTIN4017918591212
Weight per Piece (excluding packing)0.660 g
Custom tariff number85369010
Country of originDE (Germany)

Dimensions

Length [ l ]9.5 mm
Pitch3.5 mm
Dimension a3.5 mm
Width [ w ]7.5 mm
Height8.5 mm
Height [ h ]12.5 mm
Solder pin [P]4 mm
Pin spacing3.5 mm
Hole diameter1.2 mm

General

Range of articlesFK-MPT 0,5/..-H
Insulating material groupIIIa
Rated surge voltage (III/3)2.5 kV
Rated surge voltage (III/2)2.5 kV
Rated surge voltage (II/2)2.5 kV
Rated voltage (III/3)160 V
Rated voltage (III/2)250 V
Rated voltage (II/2)250 V
Connection in acc. with standardEN-VDE
Nominal current IN4 A
Nominal cross section0.5 mm²
Maximum load current4 A (with 0.5 mm² conductor cross section)
Insulating materialPBT
Solder pin surface
Flammability rating according to UL 94V0
Stripping length6.5 mm
Number of positions2

Connection data

Conductor cross section solid min.0.12 mm²
Conductor cross section solid max.0.5 mm²
Conductor cross section AWG min.26
Conductor cross section AWG max.20

Standards and Regulations

Connection in acc. with standardEN-VDE
CUL
Flammability rating according to UL 94V0

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Classifications


ETIM for 1928767 Connectors (EC002643)
Feature Name Feature Value
Height (EF000040) 12.5 mm
Number of electrical connections (EF008252) 4
Number of levels (EF002659) 1
Modular spacing connections (EF006827) 3.5 mm
Rated current In (EF008250) 4 A
Rated voltage (EF000228) 250 V
Rated surge voltage (EF002993) 2.5 kV
Over voltage category (EF006785) III
Pollution degree (EF006786) 2
Connection type conductor (EF006821) Spring clamp connection
Connectable conductor cross section solid-core (EF007337) 0.12 mm²
Connectable conductor cross section multi-wired (EF007343) 0.5 mm²
Connection type PCB (EF006822) Soldering connection
Material connection surface (EF006826) Tin
Diameter connection pin (EF006823) 1.2 mm
Length pin (EF006825) 4 mm
Material insulation body (EF007543) Other
Housing colour (EF000136) Green
Inflammability class of insulation material according to UL94 (EF002521) V0
Operating temperature (EF002393) -40 °C
Type of PCB fastening (EF008226) Connecting contact
Type of fastening (EF002442) Solder
Type of banding (EF007011) Carton (for SMD)
