PHOENIX CONTACT FFKDSA1/H-6,35 FFKDSA1/H-6,35 1789634 PHOENIX CONTACT PCB terminal block View larger
Images are for illustrative purposes only. Please refer to data sheet for details

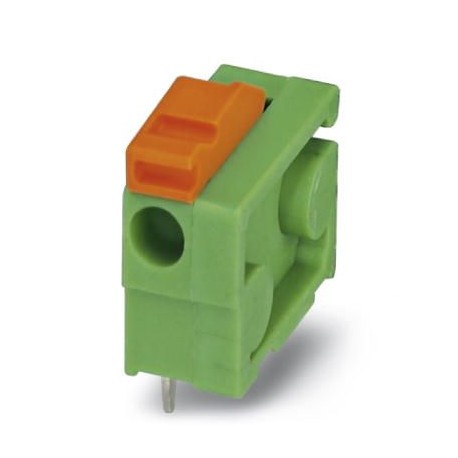

FFKDSA1/H-6,35 1789634 PHOENIX CONTACT PCB terminal block

FFKDSA1/H-6,35

1789634

PHOENIX CONTACT

50 Pcs.

PCB terminal block Terminal block for printed circuit board, nominal current: 12 A, nominal voltage (III/2): 160 V, nominal section: 1 mm², number of potentials: 1, number of rows: 1, number of poles per row: 1, family of articles: FFKDS(A) 1.5/.. -H, pitch: 3.81 mm, connection type: Push-in spring connection, mounting: Wave soldering, conductor/printed circuit board connection direction: 0 °, color: green, Pin arrangement: Linear pin arrangement, Pin length [P]: 3.4 mm, number of solder pins per potential: 2, packaging type: boxed packaging. Terminal terminal for the termination of individually compound blocks.

Connectors > Printed circuit board terminal
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1789634
Packing unit50 pc
Minimum order quantity50 pc
Catalog pagePage 145 (C-1-2013)
GTIN4017918044107
Weight per Piece (excluding packing)0.990 g
Custom tariff number85369010
Country of originGR (Greece)

Dimensions

Length [ l ]13.65 mm
Pitch3.81 mm
Width [ w ]6.35 mm
Height12.7 mm
Height [ h ]16.1 mm
Solder pin [P]3.4 mm
Pin spacing5.08 mm
Hole diameter1.3 mm

General

Range of articlesFFKDS(A) 1,5/..-H
Insulating material groupI
Rated surge voltage (III/3)2.5 kV
Rated surge voltage (III/2)2.5 kV
Rated surge voltage (II/2)2.5 kV
Rated voltage (III/3)160 V
Rated voltage (III/2)160 V
Rated voltage (II/2)320 V
Connection in acc. with standardEN-VDE
Nominal current IN12 A
Nominal cross section1 mm²
Maximum load current12 A (with 1 mm² conductor cross section)
Insulating materialPA
Solder pin surface
Flammability rating according to UL 94V0
Stripping length10 mm
Number of positions1

Connection data

Conductor cross section solid min.0.14 mm²
Conductor cross section solid max.1 mm²
Conductor cross section flexible min.0.14 mm²
Conductor cross section flexible max.1 mm²
Conductor cross section flexible, with ferrule without plastic sleeve min.0.25 mm²
Conductor cross section flexible, with ferrule without plastic sleeve max.0.34 mm²
Conductor cross section flexible, with ferrule with plastic sleeve min.0.25 mm²
Conductor cross section flexible, with ferrule with plastic sleeve max.0.34 mm²
Conductor cross section AWG min.26
Conductor cross section AWG max.18

Standards and Regulations

Connection in acc. with standardEN-VDE
CSA
Flammability rating according to UL 94V0

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Classifications


Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
