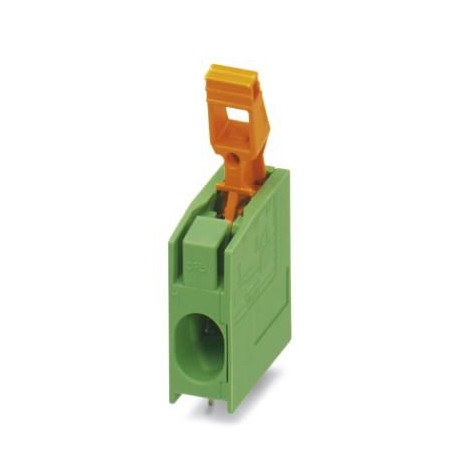

PLH 16/ 1-10 1703995 PHOENIX CONTACT PCB terminal block

PLH 16/ 1-10

1703995

PHOENIX CONTACT

25 Pcs.

PCB terminal block Terminal block for printed circuit board, rated current: 76 A, dimensioning voltage (III/2): 400 V, nominal cross-section: 16 mm², Number of potentials: 1, Number of rows: 1, Number of poles per row: 1, article family: PLH 16/, pitch: 10 mm, connection type: Spring push lock connection, mounting: Wave soldering, conductor connection direction/printed circuit board: 0°, color: green, Pin arrangement: Double linear pin arrangement, Pin length [P]: 4.5 mm, packaging type: boxed

Connectors > Printed circuit board terminal
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1703995
Packing unit25 pc
Minimum order quantity25 pc
Catalog pagePage 473 (C-1-2013)
GTIN4046356671804
Weight per Piece (excluding packing)7.960 g
Custom tariff number85369010
Country of originSK (Slovakia)

Dimensions

Length [ l ]30.5 mm
Pitch10 mm
Width [ w ]11.4 mm
Height29 mm
Height [ h ]33.5 mm
Solder pin [P]4.5 mm
Pin spacing12.5 mm
Hole diameter1.6 mm

General

Range of articlesPLH 16/
Insulating material groupI
Rated surge voltage (III/3)4 kV
Rated surge voltage (III/2)4 kV
Rated surge voltage (II/2)4 kV
Rated voltage (III/3)400 V
Rated voltage (III/2)400 V
Rated voltage (II/2)800 V
Nominal current IN76 A
Nominal cross section16 mm²
Insulating materialPA
Solder pin surface
Flammability rating according to UL 94V0
Stripping length18 mm
Number of positions1

Connection data

Conductor cross section solid min.0.75 mm²
Conductor cross section solid max.16 mm²
Conductor cross section flexible min.0.75 mm²
Conductor cross section flexible max.25 mm²
Conductor cross section flexible, with ferrule without plastic sleeve min.0.75 mm²
Conductor cross section flexible, with ferrule without plastic sleeve max.16 mm²
Conductor cross section flexible, with ferrule with plastic sleeve min.0.75 mm²
Conductor cross section flexible, with ferrule with plastic sleeve max.10 mm²
Conductor cross section AWG min.18
Conductor cross section AWG max.4
2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, min.0.75 mm²
2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, max.4 mm²

Standards and Regulations

Connection in acc. with standardUL
Flammability rating according to UL 94V0

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Classifications


Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
