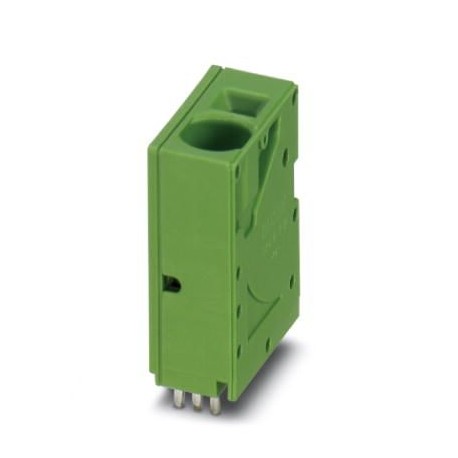

SPT 16/ 1-V-10,0 RD 1708574 PHOENIX CONTACT PCB terminal block
SPT 16/ 1-V-10,0 RD
1708574
PHOENIX CONTACT
50 Pcs.
PCB terminal block
Terminal for printed circuit board, nominal current: 76 A, nominal voltage (III/2): 1000 V, nominal section: 16 mm², number of potentials: 1, number of rows: 1, number of poles per row: 1, family of articles: SPT 16/.. -V, pitch: 10 mm, connection type: Push-in spring connection, mounting: Wave soldering, conductor connection direction/printed circuit board: 90 °, color: red, Pin arrangement: Linear pin arrangement, Pin length [P]: 4.1 mm, number of solder pins per potential: 6, packaging type: boxed
Connectors > Printed circuit board terminal
PCB Connectors (PCC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1708574 |
|---|---|
| Packing unit | 50 pc |
| Note | Made to Order (non-returnable) |
| GTIN | 4055626014722 |
| Weight per Piece (excluding packing) | 2.220 g |
| Custom tariff number | 85369010 |
| Country of origin | BG (Bulgaria) |
Dimensions
| Length [ l ] | 29 mm |
|---|---|
| Pitch | 10 mm |
| Width [ w ] | 11.8 mm |
| Height | 31.3 mm |
| Height [ h ] | 35.4 mm |
| Solder pin [P] | 4.1 mm |
| Pin spacing | 15 mm |
| Hole diameter | 1.7 mm |
General
| Range of articles | SPT 16/..-V |
|---|---|
| Rated surge voltage (III/3) | 8 kV |
| Rated surge voltage (III/2) | 8 kV |
| Rated surge voltage (II/2) | 6 kV |
| Rated voltage (III/3) | 1000 V |
| Rated voltage (III/2) | 1000 V |
| Rated voltage (II/2) | 1000 V |
| Connection in acc. with standard | EN-VDE |
| Nominal current IN | 76 A |
| Nominal cross section | 16 mm² |
| Solder pin surface | |
| Stripping length | 18 mm |
| Number of positions | 1 |
Connection data
| Conductor cross section AWG min. | 20 |
|---|---|
| Conductor cross section AWG max. | 4 |
| 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, min. | 0.75 mm² |
| 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, max. | 4 mm² |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
| Feature Name | Feature Value |
|---|---|
| Height (EF000040) | 35.4 mm |
| Number of electrical connections (EF008252) | 1 |
| Number of levels (EF002659) | 1 |
| Modular spacing connections (EF006827) | 10 mm |
| Rated current In (EF008250) | 76 A |
| Rated voltage (EF000228) | 1000 V |
| Rated surge voltage (EF002993) | 8 kV |
| Over voltage category (EF006785) | III |
| Pollution degree (EF006786) | 2 |
| Connection type conductor (EF006821) | Spring clamp connection |
| Connectable conductor cross section solid-core (EF007337) | 0.75 mm² |
| Connectable conductor cross section fine-strand with cable end sleeve (EF007339) | 0.75 mm² |
| Connectable conductor cross section fine-strand without cable end sleeve (EF007341) | 0.75 mm² |
| Connectable conductor cross section multi-wired (EF007343) | 16 mm² |
| Connection type PCB (EF006822) | Soldering connection |
| Material connection surface (EF006826) | Tin |
| Diameter connection pin (EF006823) | 1.7 mm |
| Length pin (EF006825) | 4.1 mm |
| Material insulation body (EF007543) | Other |
| Housing colour (EF000136) | Red |
| Inflammability class of insulation material according to UL94 (EF002521) | V0 |
| Operating temperature (EF002393) | -40 °C |
| Type of PCB fastening (EF008226) | Connecting contact |
| Type of fastening (EF002442) | Solder |
| Type of banding (EF007011) | Carton (for SMD) |
