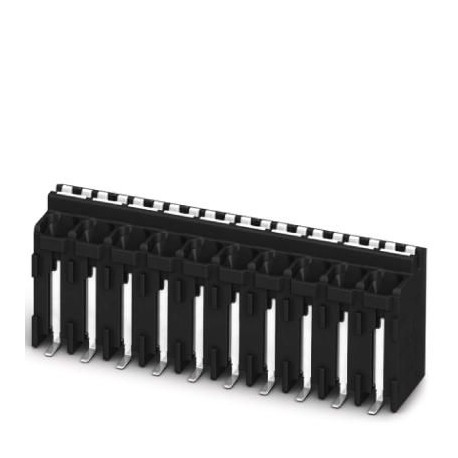

PHOENIX CONTACT SPT-SMD 1,5/ 5-V-3,5 R44 SPT-SMD 1,5/ 5-V-3,5 R44 1824116 PHOENIX CONTACT PCB terminal block View larger
Images are for illustrative purposes only. Please refer to data sheet for details

SPT-SMD 1,5/ 5-V-3,5 R44 1824116 PHOENIX CONTACT PCB terminal block

SPT-SMD 1,5/ 5-V-3,5 R44

1824116

PHOENIX CONTACT

200 Pcs.

PCB terminal block Terminal block for printed circuit board, nominal current: 13.5 A, nominal voltage (III/2): 160 V, nominal section: 1.5 mm², number of potentials: 5, number of rows: 1, number of poles per row: 5, family of articles: SPT 1.5/.. -V-SMD, pitch: 3.5 mm, connection type: Push-in spring connection, mounting: SMD soldering, conductor connection direction/printed circuit board: 90°, color: black, Pin arrangement: Linear pin arrangement, number of solder pins per potential: 2, packaging type: 44 mm wide strap

Connectors > Printed circuit board terminal
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1824116
Packing unit200 pc
Minimum order quantity200 pc
Catalog pagePage 7 (NTK-2014)
GTIN4046356816212
Weight per Piece (excluding packing)4.610 g
Custom tariff number85369010
Country of originDE (Germany)

Dimensions

Length [ l ]7.7 mm
Pitch3.5 mm
Dimension a14 mm
Width [ w ]18 mm
Height13.6 mm
Height [ h ]13.6 mm
Pin spacing7 mm
Hole diameter1.1 mm

General

Range of articlesSPT 1,5/..-V-SMD
Insulating material groupIIIa
Rated surge voltage (III/3)2.5 kV
Rated surge voltage (III/2)2.5 kV
Rated surge voltage (II/2)2.5 kV
Rated voltage (III/3)160 V
Rated voltage (III/2)160 V
Rated voltage (II/2)320 V
Connection in acc. with standardEN-VDE
Nominal current IN13.5 A
Nominal cross section1.5 mm²
Insulating materialLCP
Solder pin surface
Flammability rating according to UL 94V0
Stripping length8 mm
Number of positions5

Connection data

Conductor cross section solid min.0.2 mm²
Conductor cross section solid max.1.5 mm²
Conductor cross section flexible min.0.2 mm²
Conductor cross section flexible max.1.5 mm²
Conductor cross section flexible, with ferrule without plastic sleeve min.0.2 mm²
Conductor cross section flexible, with ferrule without plastic sleeve max.1.5 mm²
Conductor cross section flexible, with ferrule with plastic sleeve min.0.2 mm²
Conductor cross section flexible, with ferrule with plastic sleeve max.0.75 mm²
Conductor cross section AWG min.24
Conductor cross section AWG max.16

Standards and Regulations

Connection in acc. with standardEN-VDE
Flammability rating according to UL 94V0

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Classifications


Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
